Draper FlexShade - Installing Side Channels: Jamb Mount

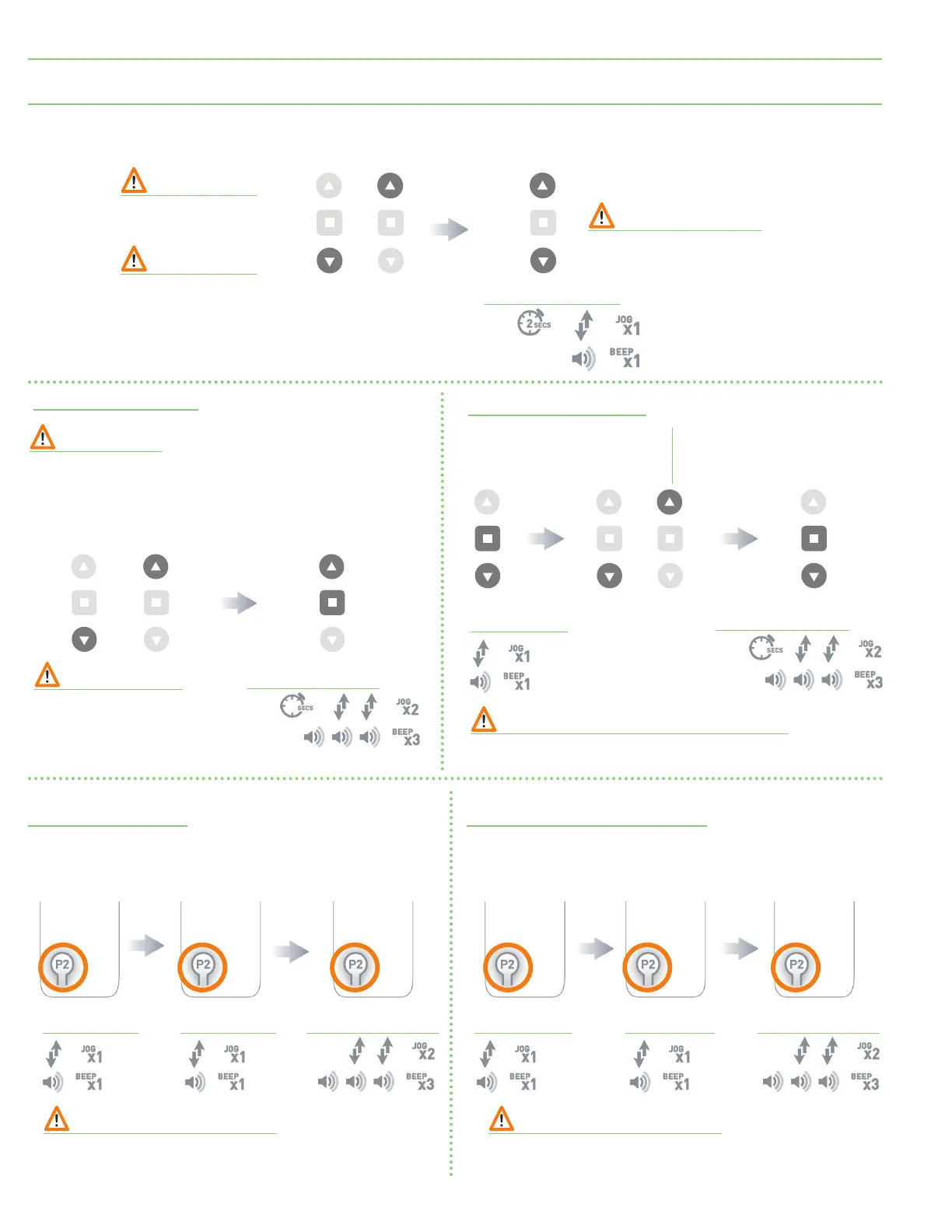

Section 10 - 5 Volt Motor Limits
Setting 5 Volt Motor Limits
Using P2 Button on existing controller to add a
new controller or channel
Using an existing controller
to add or delete a controller or channel
Adjusting 5 Volt Motor Limits
Quick Press = Step
Long Press = Continuous
Travel
To reverse shade direction,
hold both UP and DOWN
until the motor responds.
Approx.
OR
IMPORTANT
Reversing motor direction
using this method is only possible
during initial set-up.
Motor Response
IMPORTANT
Cycle shade up and down
prior to setting limits
to settle fabric.
IMPORTANT
Damage to shade may occur
when operating motor prior
to setting limits.
Atttention should be given.
Motor Response
To save upper limit,
hold UP and STOP.
To save lower limit,
hold DOWN and STOP.
OR
Move shade to the desired
highest or lowest position by
pressing the UP or DOWN
buttons on controller.
IMPORTANT
Cycle shade up and down prior to setting
limits to settle fabric.
IMPORTANT
After setting limits, motor
will automatically
exit from initial setup mode.
Approx.
5
Motor Response
Approx.
5
OR
IMPORTANT
The bottom limit should be set ~ 1.38 in. (35mm) below the Ultra-Lock to
disengage the auto lock mechanism when the shade is raised.
Motor Response
To adjust upper limit:
Hold UP & STOP for 1 jog & 1 beep.
Move shade to new upper limit.
Hold UP & STOP for 2 jogs & 3 beeps.
To adjust lower limit:
Hold DOWN & STOP for 1 jog & 1 beep.
Move shade to new lower limit.
Hold DOWN & STOP for 2 jogs & 3 beeps.
Motor Response Motor Response Motor Response
IMPORTANT
Consult user manual for your controller or sensor.
A = Existing controller or channel (to keep)
B = Controller or channel to add or remove
Press P2 on
controller A.
Press P2 on
controller A.
A A
Press P2 on
controller B
to add it.
B
Motor Response Motor Response Motor Response
IMPORTANT
Consult user manual for your controller or sensor.
A = Existing controller or channel (to keep)
B = Controller or channel to add or remove
Press P2 on
controller A.
Press P2 on
controller A.
Press P2 on
controller B
to remove it.
AA B
