Draper MS250 - OPERATION & USE (continued); Mitre Fence Adjustment; Bevel Cuts Adjustment

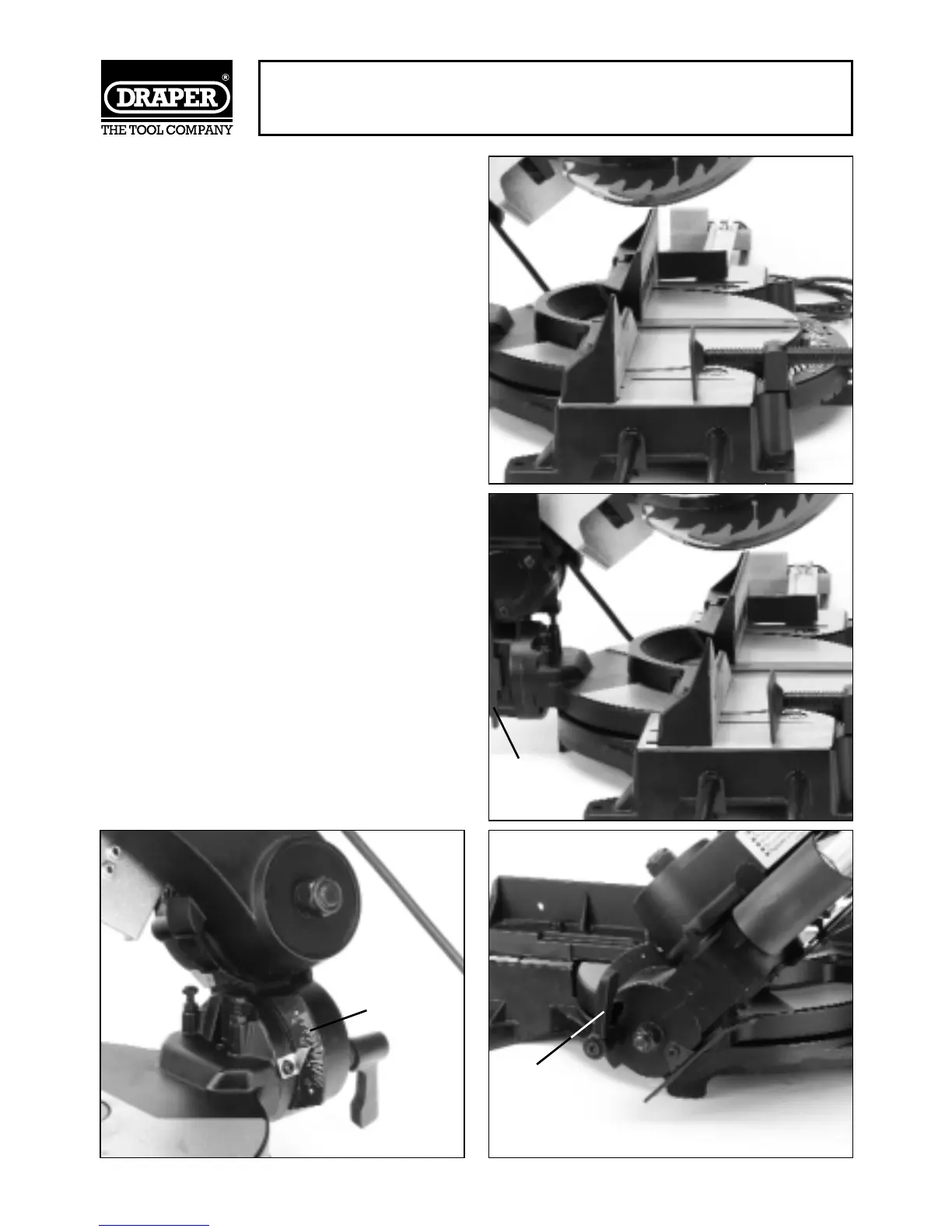

MITRE FENCE ADJUSTMENT (Fig.15 & 16):
The mitre saw has two fence positions. The back
position (Fig.15) is for standard 2 x 6" work pieces
and the front position (Fig.16) is for smaller 2 x 4"
work pieces. Using the wrench ✼✌ remove the 2
bolts, move the fence to the front or rear position and
bolt in place. Check squareness of fence to the blade
again.
BEVEL CUTS ADJUSTMENT (Fig.17 & 18):
At the rear of the saw loosen locking handle ✽✌ to tilt
the angle of the saw head. Use the scale ✾✌ as a
guide for the required angle.When set in place
resecure the locking handle.
OPERATION & USE
Fig.15.
Fig.16.
✼✌
✾✌
✽✌
Fig.17.Fig.18.
- 11 -
