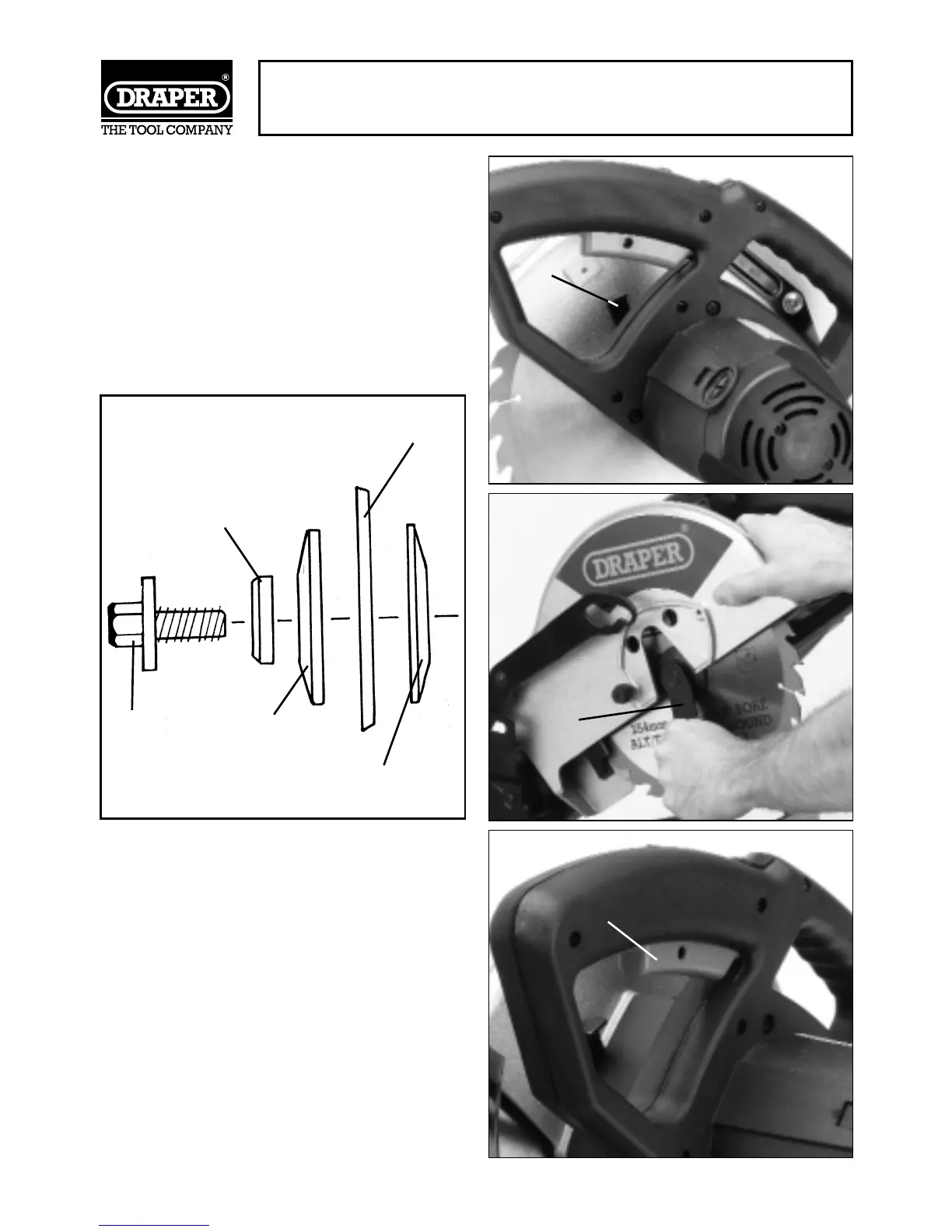

CHANGING THE BLADE (Fig.19 & 20):
Before the blade can be changed the lower blade
guard must be removed to gain access to the blade
locking flange. Follow the assemble instructions in
reverse order on page 8 to remove the guard.
Press the spindle locking lever ✿✌ to stop the blade
turning, and with the wrench ❀✌ remove the locking
flange.
NOTE: The blade flange bolt has a left hand thread.
After the blade has been replaced ensure the flange
and locking bolt are correctly and securely fitted and
the lower blade guard reassembled.
OPERATION & USE
Fig.19.
Fig.20.
❀✌
✿✌
❁✌
Fig.21.
- 12 -
ON/OFF TRIGGER SWITCH (Fig.21):
To operate the saw simply press the trigger switch
❁✌ in and the saw will start.
ARBOR WASHER
ARBOR
SCREW
OUTER
BLADE COLLAR
10" BLADE
INNER BLADE
COLLAR
(DO NOT REMOVE)
