Draytek VigorAP 906 Quick Start Guide

9

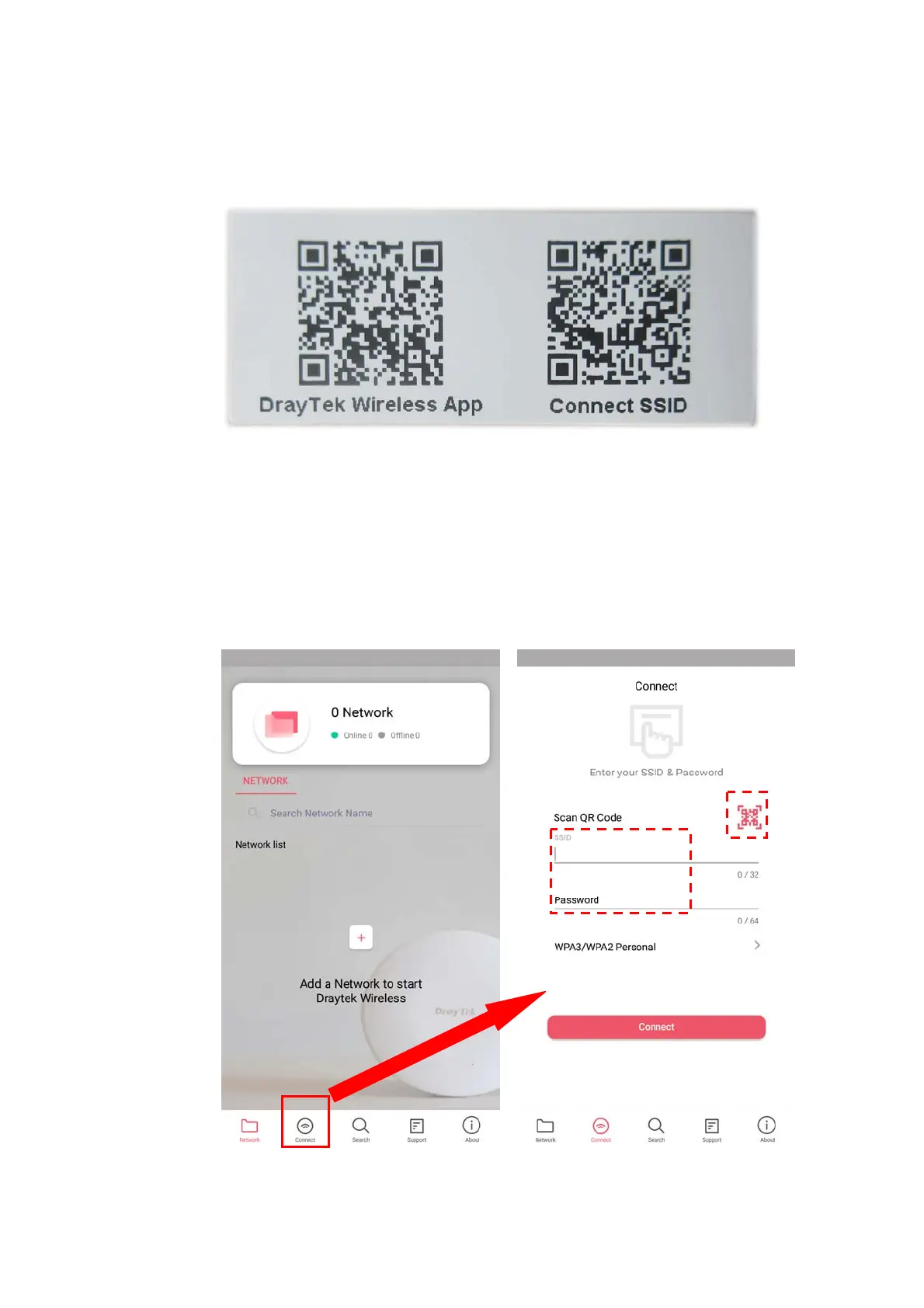

Method 2:
(a) Use a mobile phone to scan the QR code named with DrayTek Wireless
App to download DrayTek Wireless APP.
(b) After downloading, run the APP.
(c) From the home page, click the Connect icon to access the Connect
page. Next, press the QR code icon next to Scan QR Code on your
phone screen to open the camera.
Scan the QR code named with Connect SSID to access the web user
interface (configuration wizard) of VigorAP 906. (For iOS users, the
SSID and the password will be shown first. Simply click the Connect
button to access the web user interface of VigorAP.)

Draytek VigorAP 906 Specifications

General

2.4 GHz	Yes
MIMO type	Multi User MIMO
Number of users	254 user(s)
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	2402 Mbit/s
Maximum data transfer rate (2.4 GHz)	574 Mbit/s
Placement	Ceiling, Table, Wall
Product color	White
Security algorithms	WEP, WPA, WPA2, WPA3, WPS
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	10 - 90 %
WAN connection	Ethernet (RJ-45)
USB 2.0 ports quantity	-
Ethernet LAN (RJ-45) ports	5
Antenna type	External
Antenna direction type	Omni-directional
Antenna gain level (max)	2.5 dBi
Input current	0.4 A
Output current	1.5 A
AC input voltage	48 - 56 V
DC voltage range	12 V
Power consumption (max)	17.3 W
Sustainability certificates	CE
