2.4 ELECTRICAL INSTALLATION
2.4.1 GENERAL INFORMATION FOR ELECTRICAL INSTALLATION
•
The electric wiring scheme is attached to the water heater on the side of the electric
installation guard (
Figure 8).
• Connection, repairs, and wiring inspections may only be implemented by a company
(person) authorised to such activity.
• Expert connection must be confirmed on the warranty certificate.
• The heater is connected to the 230 V/50 Hz electrical network using a fixed moving
conductor with a switch that turns off all network poles and the circuit breaker
(protector).
• The degree of protection of electric parts of the heater is IP 42.

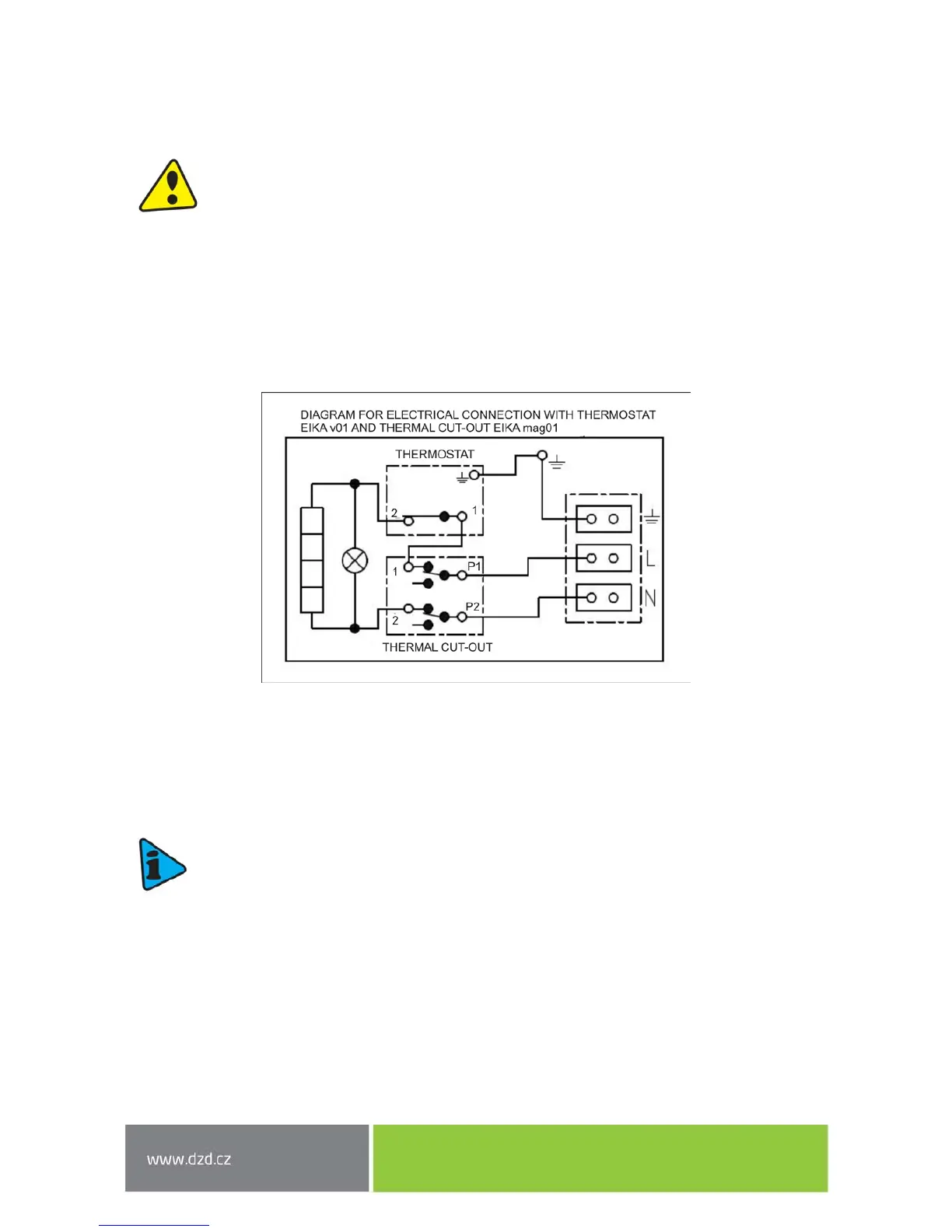

Figure 8
2.5 CONNECTION OF INDIRECT HEATER TO HOT WATER SYSTEM
It is recommended to install stop valves on the heating water inlet and outlet (for possible
dismantling of the heater).
The valves have to be as close to the heater as possible to avoid
higher thermal losses. (Figure 6, Figure 7, Figure 9 and Figure 10).
