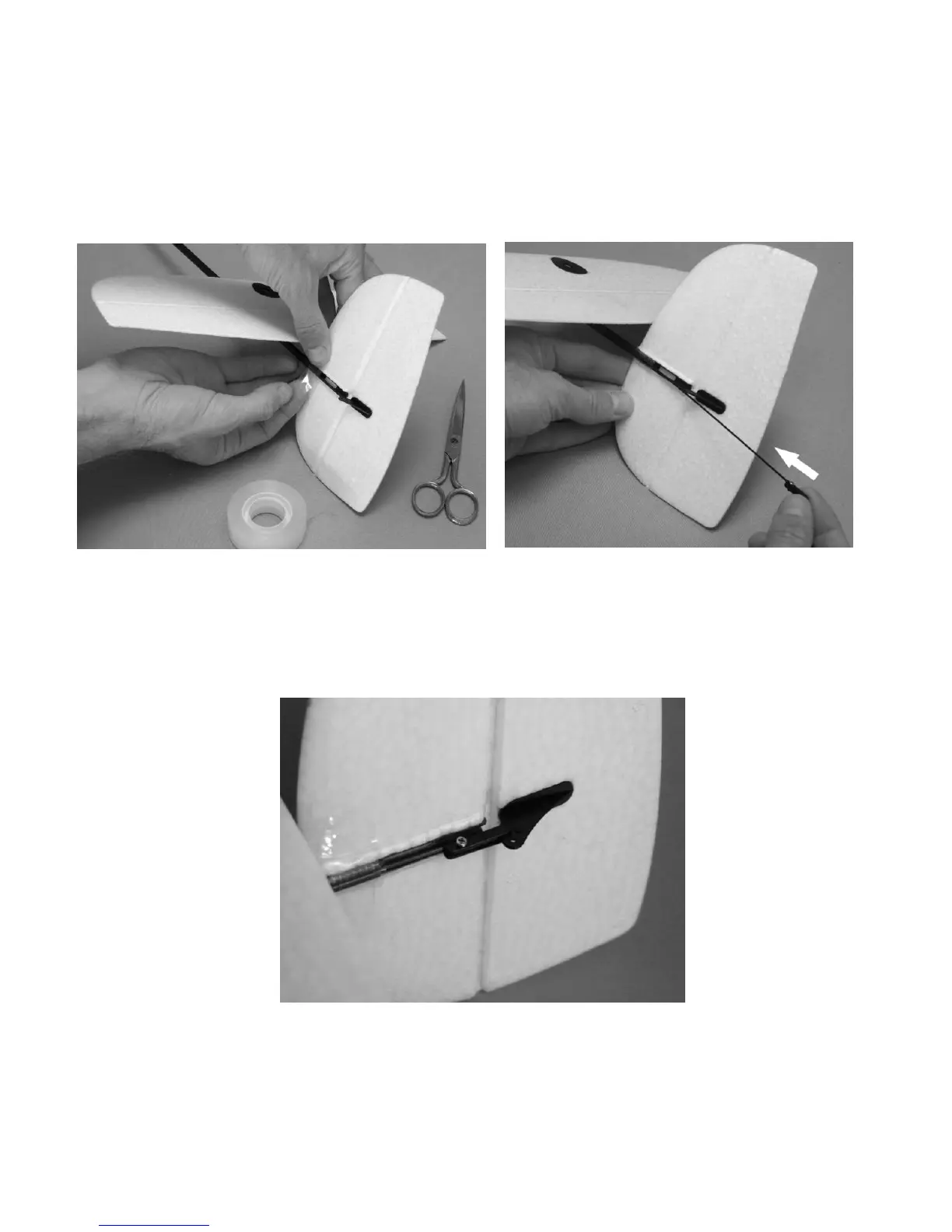

13. For added strength, apply a small strip of clear tape over tail boom and overlapping onto fin (see below).
The tape should not cover pushrod cutout in carbon tail boom.
14. Feed Z-Bend end of longer rudder pushrod into rear opening of carbon tail boom as shown below. Slide
pushrod all the way forward through tail boom for connection with rudder servo arm.
15. Attach clevis to rudder control horn at innermost hole. IMPORTANT: Clevis must be installed with correct
orientation (screw head on top) for sufficient pushrod clearance. You may need to loosen clevis clamping
screw to allow pushrod to slide freely in clevis for adjustment and connection with rudder servo arm. Do not
tighten clamping screw yet.
