Dreame D10s Plus User Manual

23

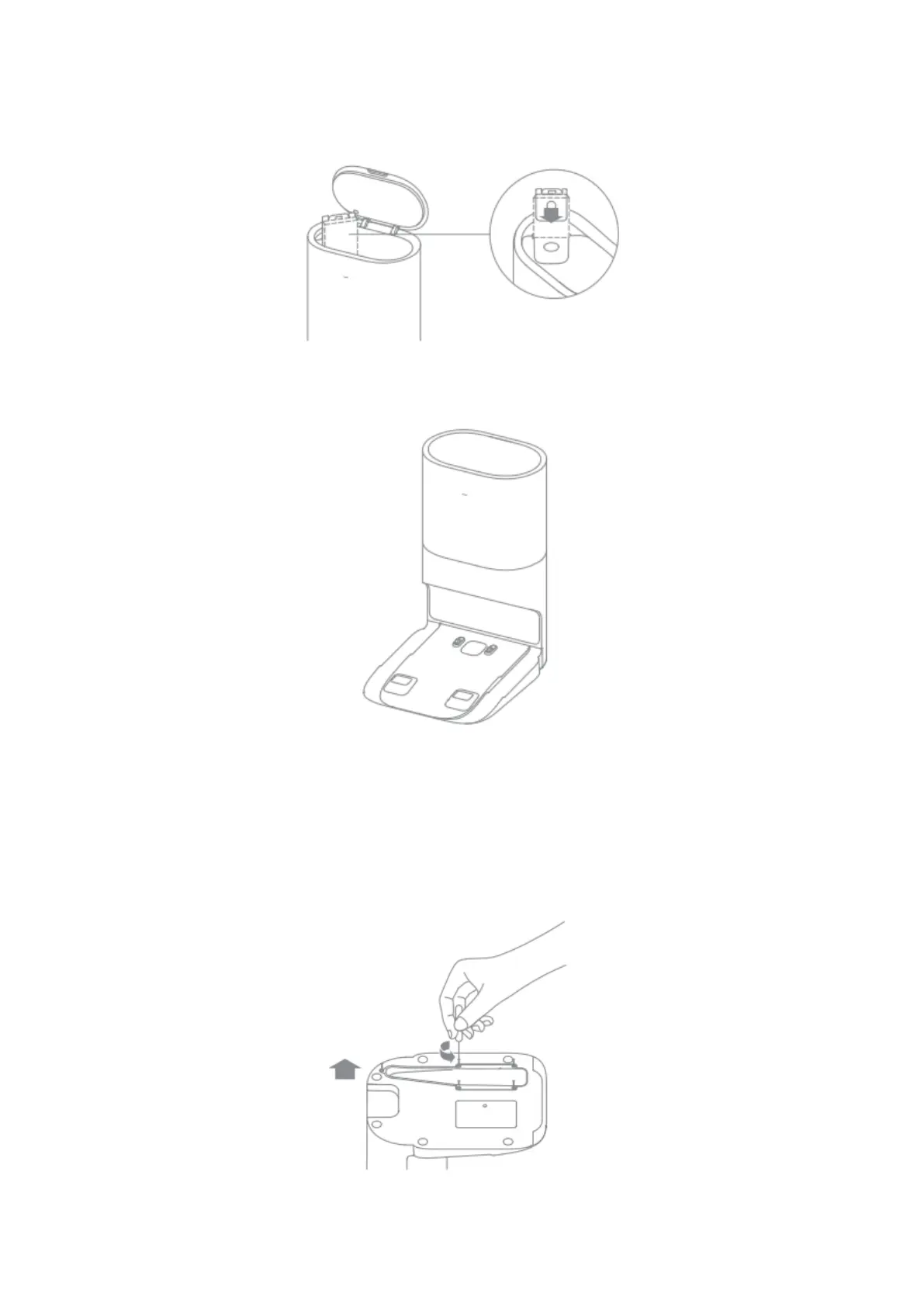

3. Install a new dust collection bag.
4. Close the upper cover of auto-empty base.
Note: Do not close the base forcefully if the upper cover cannot be closed or the dust
collection bag is not installed.
Clean the Air Duct
If the air duct is blocked, please clean it according to the following steps.
1. Unscrew mounting screw on the air duct cover and remove the cover plate.

Dreame D10s Plus Specifications

General

Shape	Round
Product color	Black
Dust container type	Dust bag
Smartphone remote support	Yes
Battery capacity	5200 mAh
Battery technology	-
Suction power	5000 Pa
Brush type	Roller brush & Side brush
Noise level	60 dB
Navigation type	Mapping
Water tank capacity	0.235 L
Dust capacity (base)	4 L
Dust capacity (total)	4.57 L
Dust capacity (vacuum cleaner)	0.57 L

Weight and Dimensions

Width	350 mm
Height	96.8 mm
Weight	3240 g
Base station weight	4350 g
Base station dimensions (W x D x H)	403 x 403 x 483 mm
