Fig 12

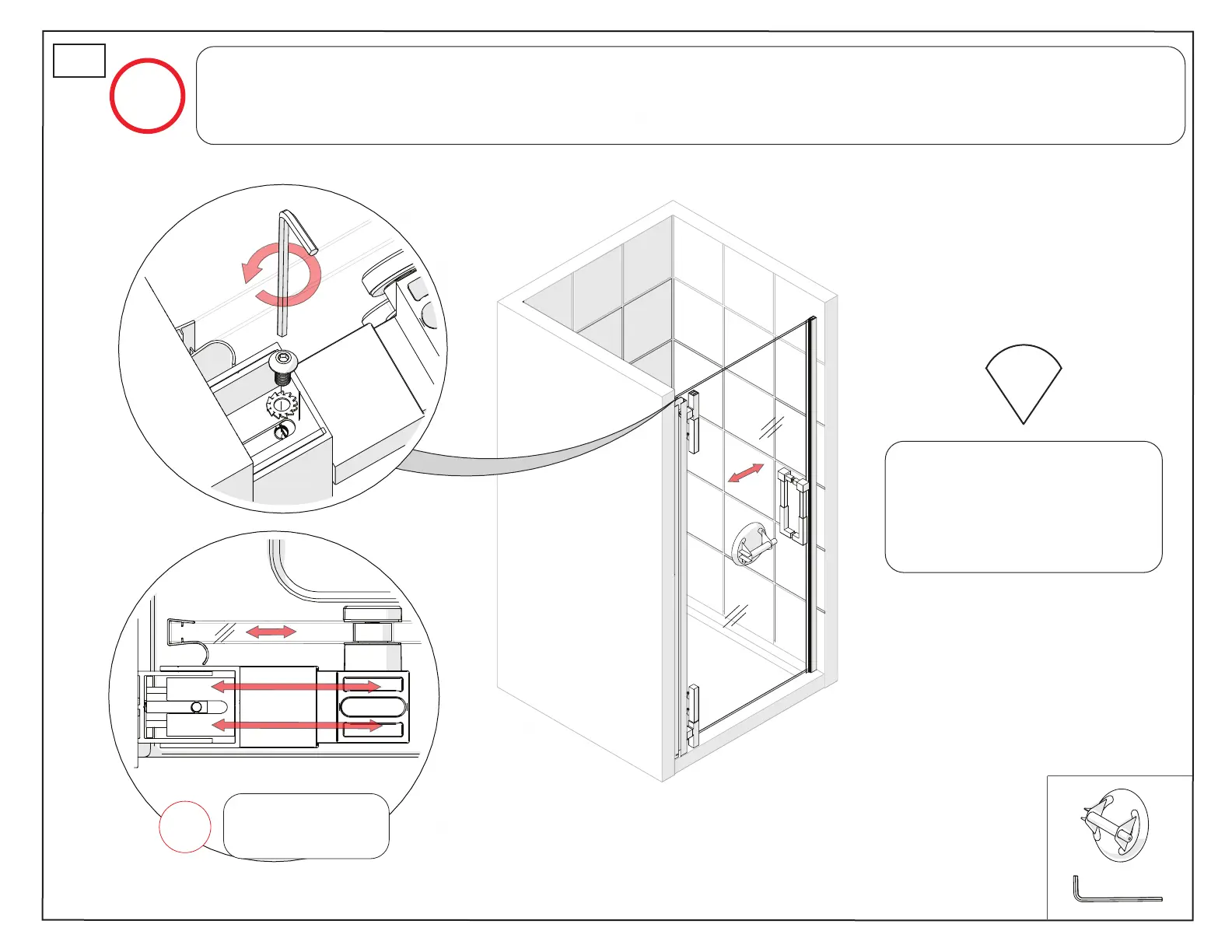

If more adjustment is needed to line up the Door Glass and the Strike Vinyl, the hinge-side Profiles can be adjusted
by as much as 1/2”. Have a helper hold the Door Glass with a suction cup. Place shims under the glass and loosen
the top M5 x 10mm Screw (#11) and Lock Washer (#12) from Step #8. Move the Door Glass and Glass Profile as
needed, then re-install the screw and lock washer, making sure the door is at the correct height. Fig 12
NOTE
2
1
Maximum Adjustment
of hinge-side profile is
1/2”. Do Not Exceed.
NOTE
TIP
Be extremely careful when shifting
the Door Glass, Pivots and Glass
Profile. Use shims under the sweep
to help protect the glass and keep it
at the correct height. Always use a
helper to adjust heavy glass.
12
To Next Page
