Tools Needed
Parts Needed
ASCEND Shower Door Manual Ver 1 022021 20
© 2021 DreamLine® All Rights Reserved
17
x1
Fig 13

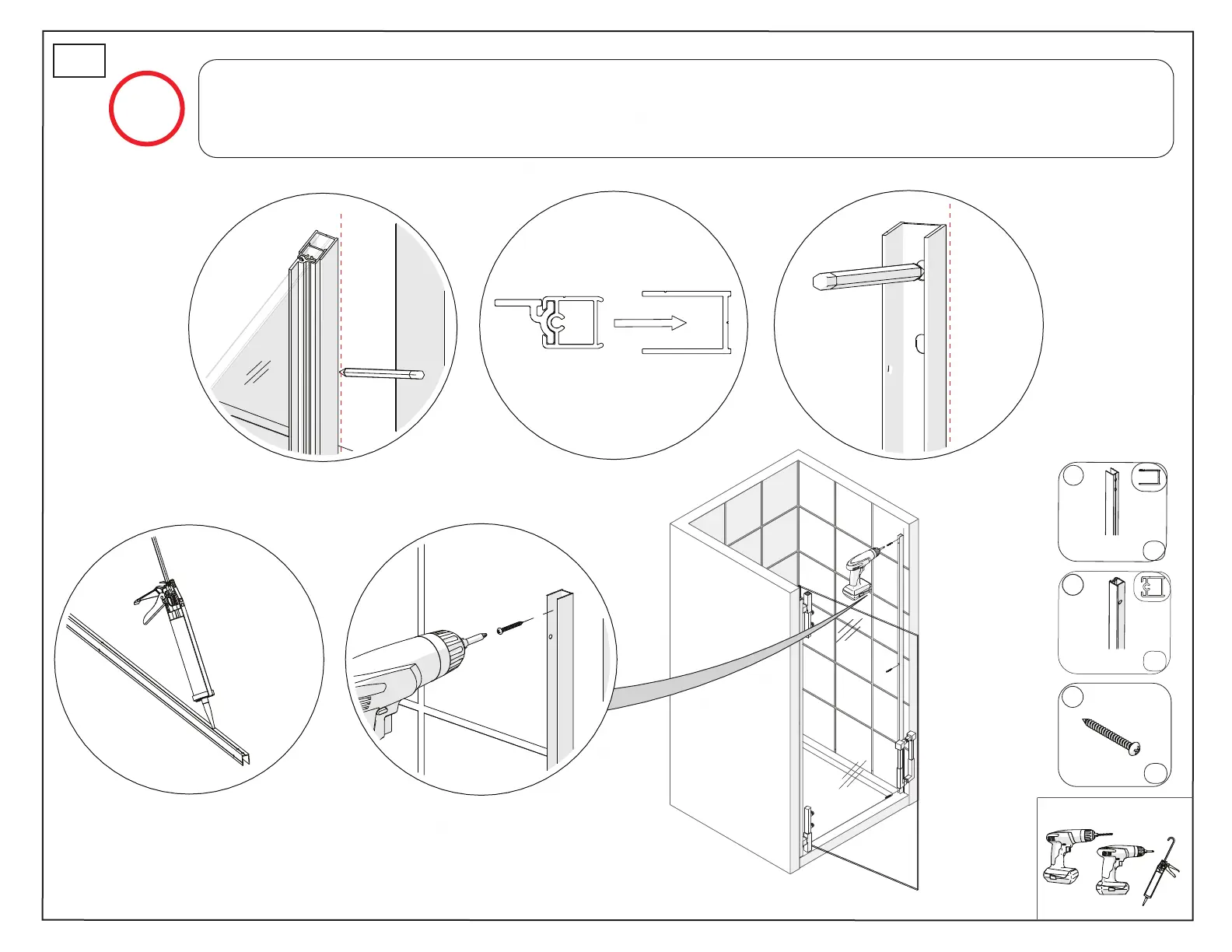

Once final adjustments are made, mark the position of the Strike Side Wall Profile (#16). Open the Door Glass,
remove the Profile Assembly and slide the Wall Profile off of the Glass Profile (#17). Place the Wall Profile back
on the marks just made and mark the holes for drilling. Drill Ø 1/8” holes. Apply silicone to the back of the Wall
Profile and in the screw holes. Install the Strike Side Wall Profile using the ST 4.0 x 40mm screws (#03). Fig 13
NOTE
321
4 5
03
x7
16
x1
13
To Next Page
