DREAMS Jay - Securing the Slat Frame; Attaching Piston Lower Axles

2mm
j
x1
h
x2
j
h
7

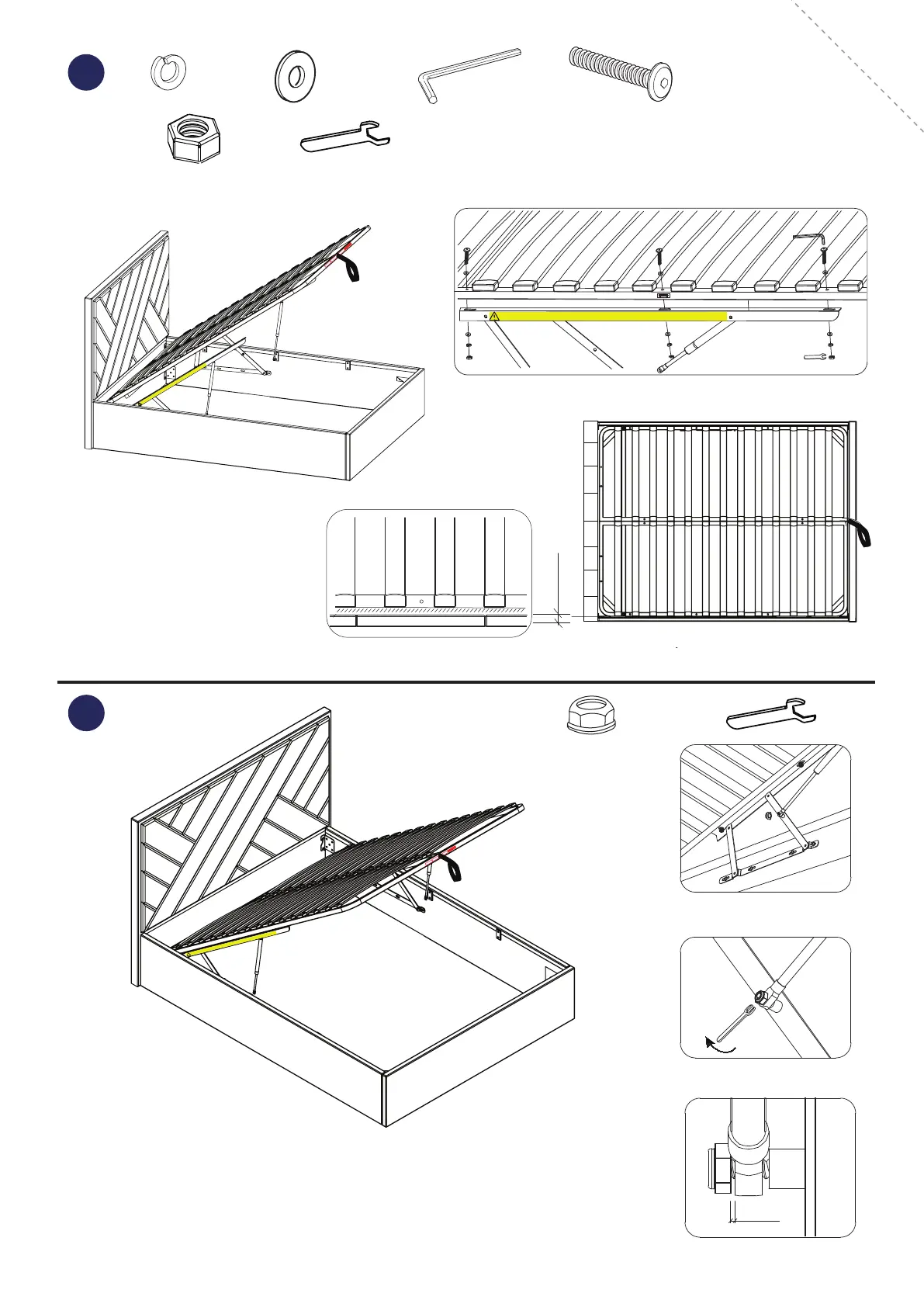

Jay Ottoman Bed - Assembly guide - Page 10
Lift the frame and slide the piston stems onto the lower axles then fit
the lock-nuts (h). Tighten them with spanner (j) but note, a small
2mm gap is needed so stems can move freely.
This is important so do not over-tighten - please see the sketch -->
x12
e
x6
6
x6
c
j
x1
i
x6
d
x1
Carefully lay the slat frame
on to the top of the support
bars making sure the bed is
still square and there is an
even gap all round as in the
sketch.
8mm
i)
Using three bolt sets on each side (e, c, c, b & i),
fix the slat frame loosely to the support bars.
Bolt into centre of long holes
Tighten all six bolt sets 100% using spanner (j) & Allen key (d).
ii)
e
c
c
b
i
j
d
WARNING!HA ZARD- DO NOT REACH INTO THE SPACEBELOW!
WARNING! HAZARD - DO NOT REACH INTO THE SPACE BELOW!
WAR
NING! HAZARD
DO NOT REACH INTO THE SPACEBELOW
b
