DREAMS Jay - Fitting Corner Brackets; Attaching Piston Stems

Jay Ottoman Bed - Assembly guide - Page 8
a
x8
b
x8
c
x8
d
x1
3

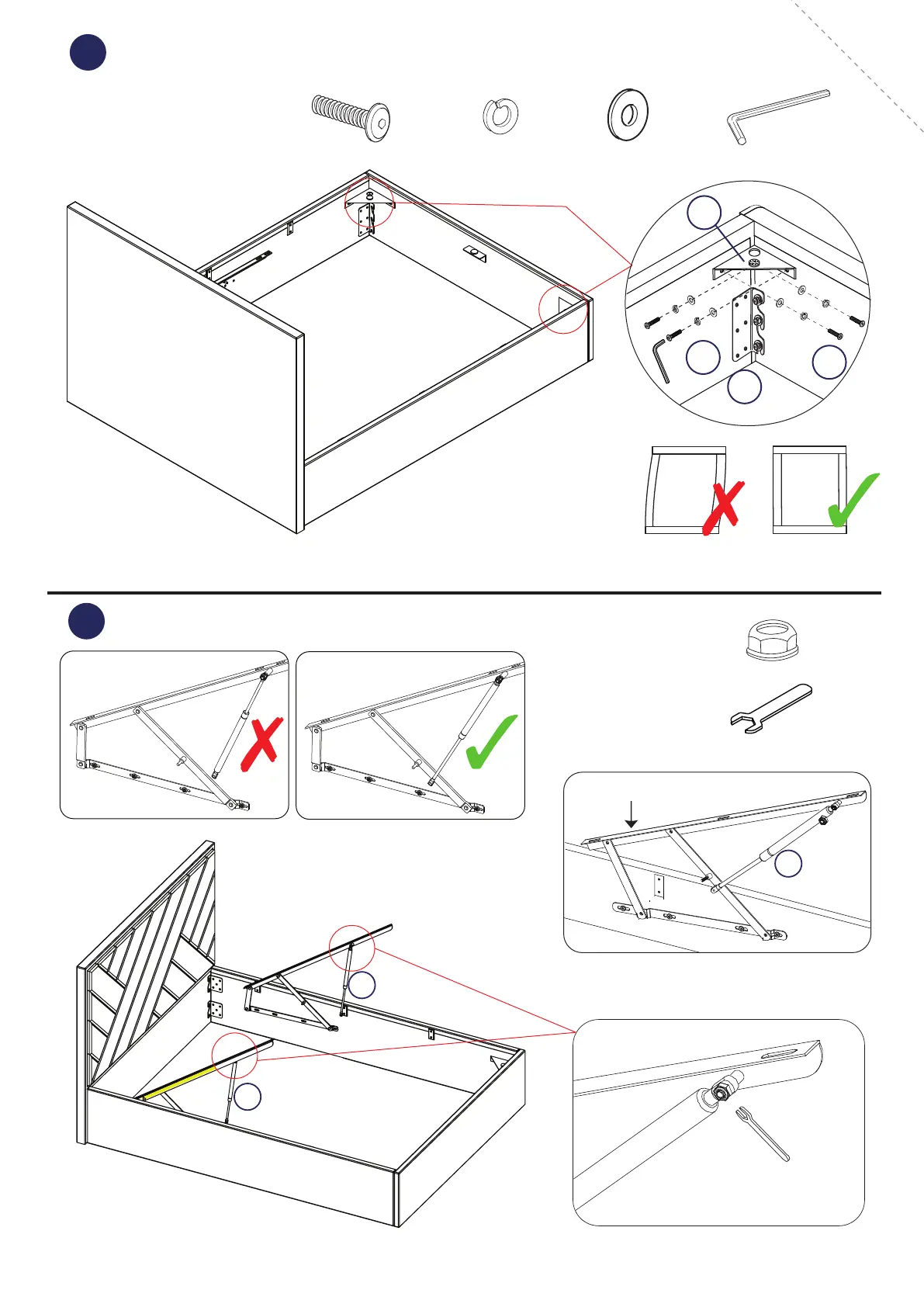

Fit the angled corner brackets and tighten all bolt sets 90%.
a
c
d
b
F
C
D
&
B
Make certain the bed is squared up as shown in the diagram then tighten all bed assembly bolts 100%.
4
Slat Frame Support Bar
h
j
h
x2
j
x1
WARNING!HA ZARD- DO NOT REACH INTO THE SPACEBELOW!
Please make sure the cylinder
(largest diameter) is at the top.
J
J
J
Loosely fit the piston stems to the upper axles.
Fit the piston stems to upper axles
using lock
-nuts (h) - do not tighten yet.
