Wilson Ottoman Bed - Assembly guide - Page 6

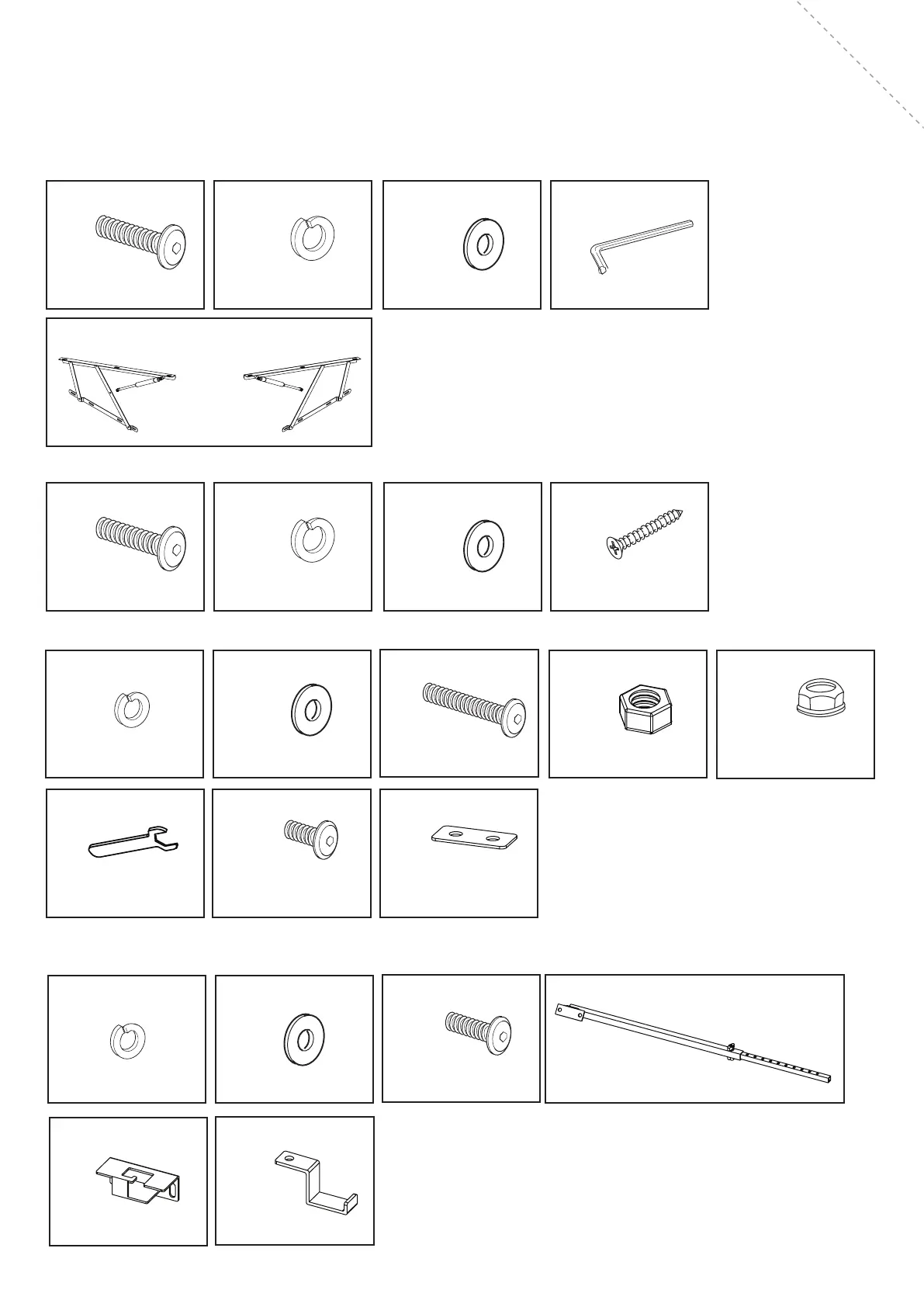

Fittings
Please check you have all the parts listed below with your product:
g x2
e x6
f x6
l x2
Flanged lock-nuts (M8)
for gas-lift pistons
Nuts for M8 bolt
Metal connection plates
Spring washer for M8 bolts
h x1
Flat washer for M8 bolts
b x6 c x16
Bolts (M8x50mm) for
fitting metal slat frame (D)
to gas-lift support bars
j x4
Bolts (M8x20mm) for fitting
metal connection plates (l)
to metal slat frame (D)
Bolts (M8x30mm) for
fitting gas-lift mechanisms (m)
to headboard & footboard (A&B)
Spring washer for M8 bolts
Flat washer for M8 bolts
a x8 b x8 c x8
m(a) x1 m(b) x1
d x1
Allen key for M8 bolts
Hardware needed for fitting gas-lift mechanisms packed in side rails pack - hardware pack (A)
Hardware needed for bed assembly packed in side rails pack - hardware pack (B)
Hardware needed for fitting metal slat frame packed in side rails pack - hardware pack (C)
Gas-lift Mechanisms
Bolts (M8x30mm) for
fitting side rails (C) to
headboard & footboard (A&B)
Spring washer for M8 bolts Flat washer for M8 bolts
a x24 b x24 c x24
k x4
Screws (5x50mm) for fitting
‘U’ shaped cross bar (H) to
side rails (C)
Spanner for M8 nut
m x5
b x5 c x5
Bolts (M8x25mm) for fitting
ottoman support bar
Flat washer for M8 bolts
O x1
Q x1
P x1
Spring washers for M8 bolts
Hardware needed for fixing ottoman support bar (O.S.B) to the slat frame
Packed in the ottoman carton, inside Pack 4 - hardware pack (D )
Ottoman support bar
Fixed retaining bracket
- footboard
Parking bracket - slat frame
3
3
3
