DREAMS Wilson - Assembly Guide; Fitting Gas-Lift Mechanisms

Wilson Ottoman Bed - Assembly guide - Page 7
a x8 b x8
c x8
m(a) x1
d x1
m(b) x1
b
a
c
d
R
F
I
T
H
E
R
E
Align with blue labels

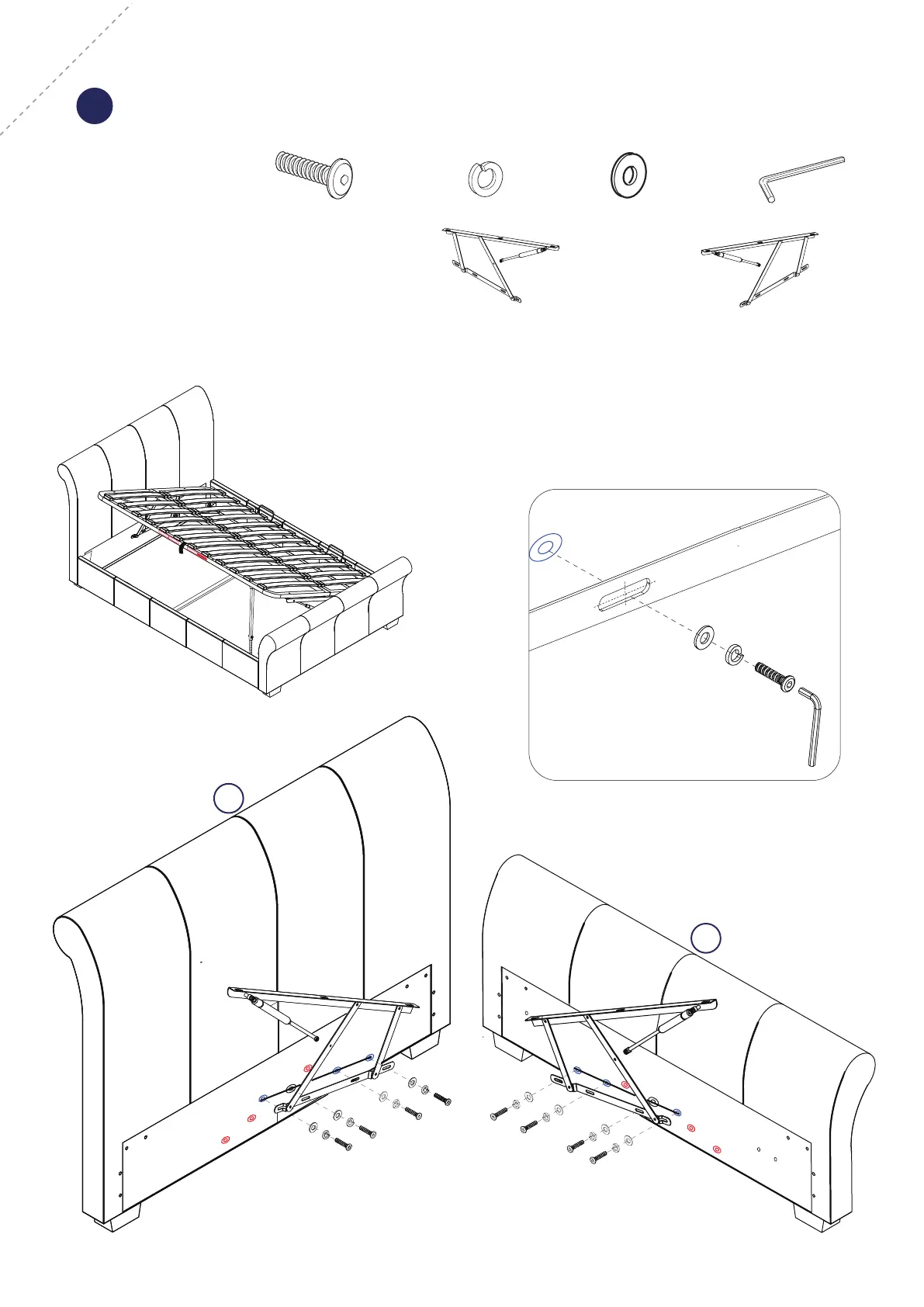

Check the diagram and if access is needed from the left side of
the bed, fit both lift mechanisms to RIGHT side of the headboard
& footboard. Bolt into the holes marked (R) with blue labels.
Choose from which side of bed you would like to access the storage area.
Bolts should be in the
centre
of the long holes.
The mechanisms are labeled m(a) & m(b)
please carefully follow the diagram below.
1a
Fitting Gas-Lift Mechanisms - Use Pack 'A'
m (b)
m (a)
blue
blue
