Dremel 6800 - Functional Description and Specifications; Model 6800 Dremel Trio Components; Tool Specifications

8
6@0<;;20A A52 =9B4 3?<: A52 =<D2? @<B?02 /23<?2 :.86;4 .;F
.@@2:/9F.17B@A:2;A@<? 05.;46;4.002@@<?62@. Such preventive safety
measures reduce the risk of starting the tool accidentally.
!
WARNING
Model number 6800
Voltage rating 120V 50 - 60Hz
Amperage rating 2.0 A
No load speed n
0
10,000-20,000/min
Collet capacity 3/16"

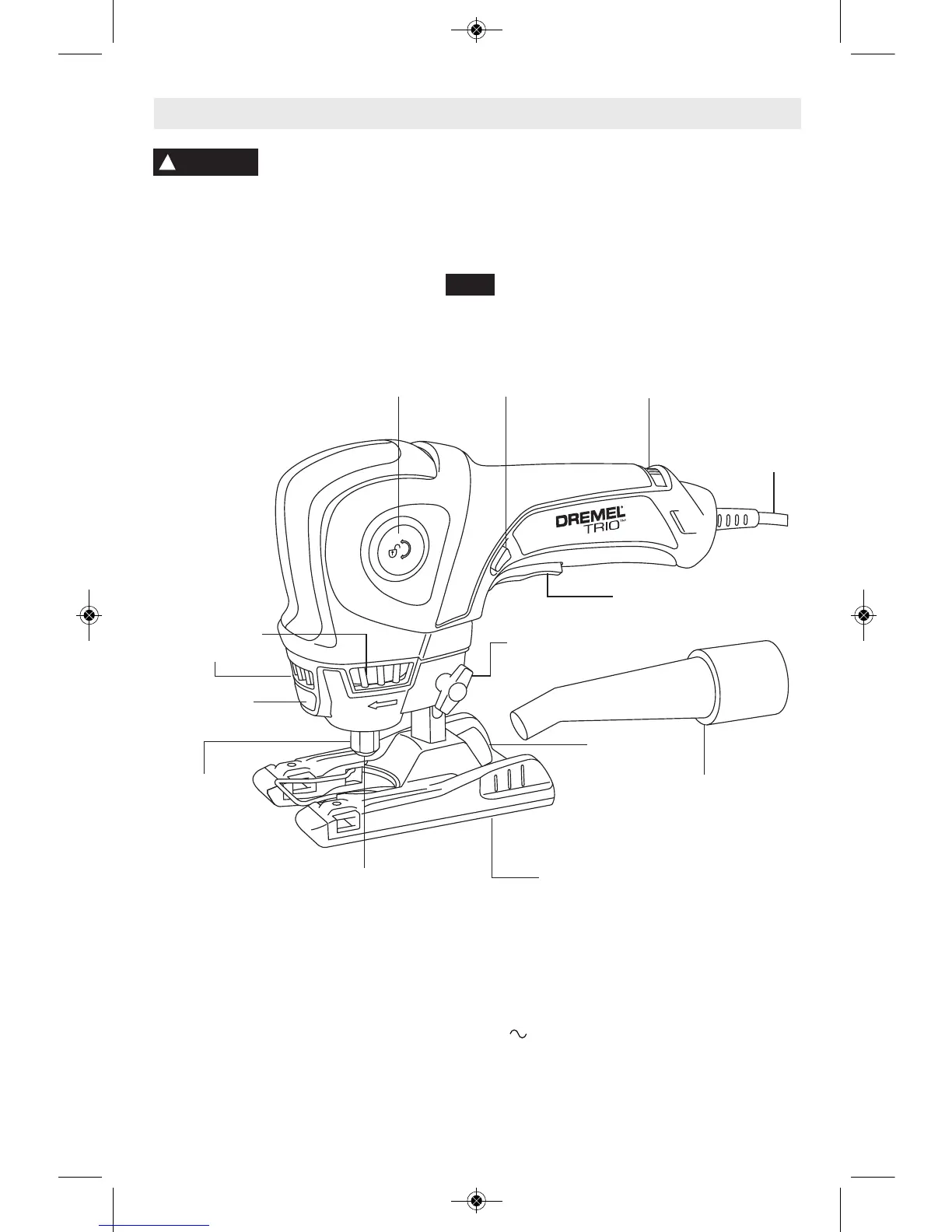

B;0A6<;.92@0?6=A6<;.;1%=206360.A6<;@
<129?2:29&?6<™
SHAFT LOCK
BUTTON
VENTILATION
OPENINGS
VARIABLE SPEED
DIAL
COLLET
COLLET
NUT
DUST PORT
"LOCK-ON"
BUTTON
ARTICULATION
BUTTON
TRIGGER “ON-OFF”
SWITCH
BASE PLATE
DEPTH
ADJUSTMENT
THUMB SCREW
CORD
DUST PORT ADAPTER
(Not included, available
as accessory)
FIG. 1
