77

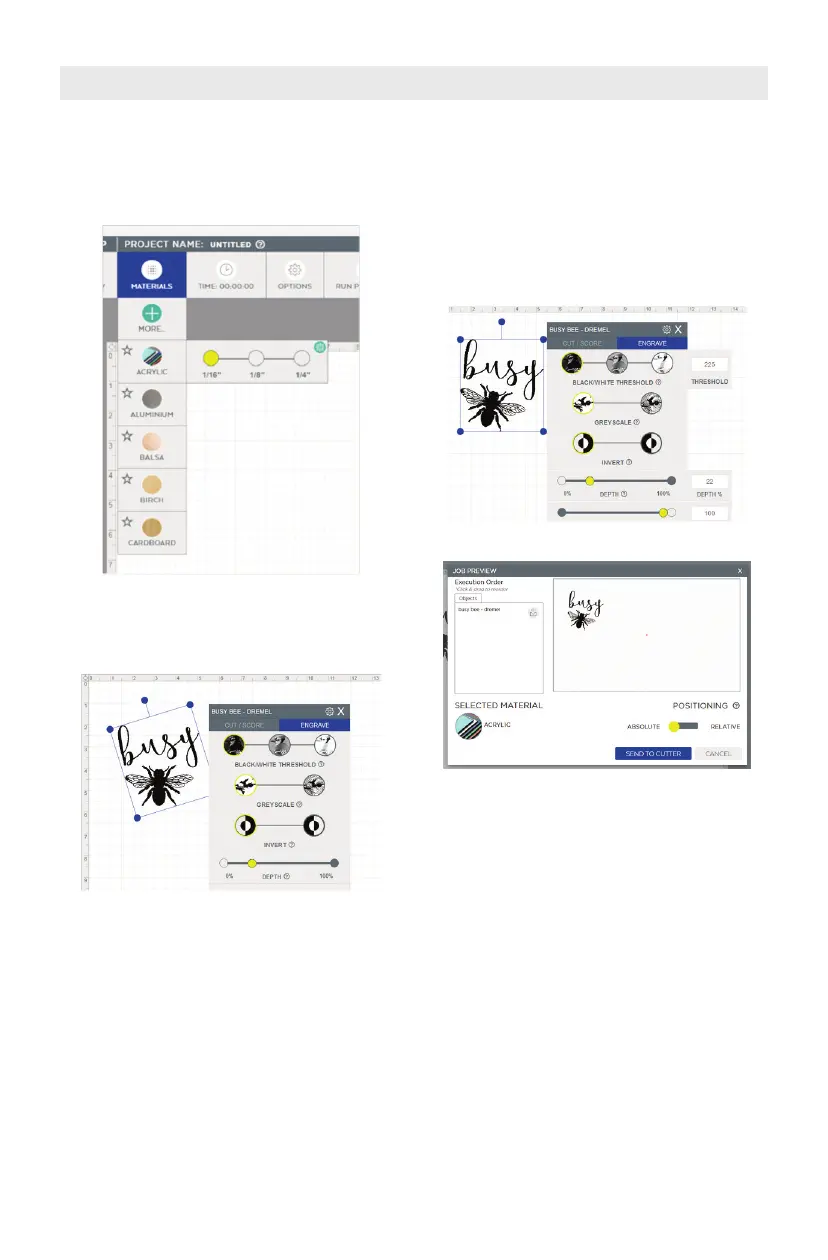

OPERATING THE LASER CUTTER
2. Select the material type and thickness.
The material library will automatically
populate suggested cut and/or engrave
print settings based on the material
and thickness selected.
3. Move, scale, and adjust objects to the
desired orientation. More precise
adjustments can be made in the
bottom left side of the screen.
4. Adjust print settings as needed. If the
settings are changed in this box, they
will override Dremel recommended
settings until a new material is
selected. The top right side of the
print settings box will unlock more
precise setting options. Review job
and job execution order to make sure
the desired result.
5. Send the job to the Laser.
If you would like to save a job to your
computer to repeat again later go to
File/Save. The job will be saved in a .bin
format and will contain each object, it’s
location, and it’s print settings.
