DROPSA VIP5 Pro - 7.3 Flow Mode Operation; 7.4 Prelube Cycle

18/27
7.3 FLOW Mode
Using this mode allows the VIP5 Pro to be used as a simple flow monitoring and display device.

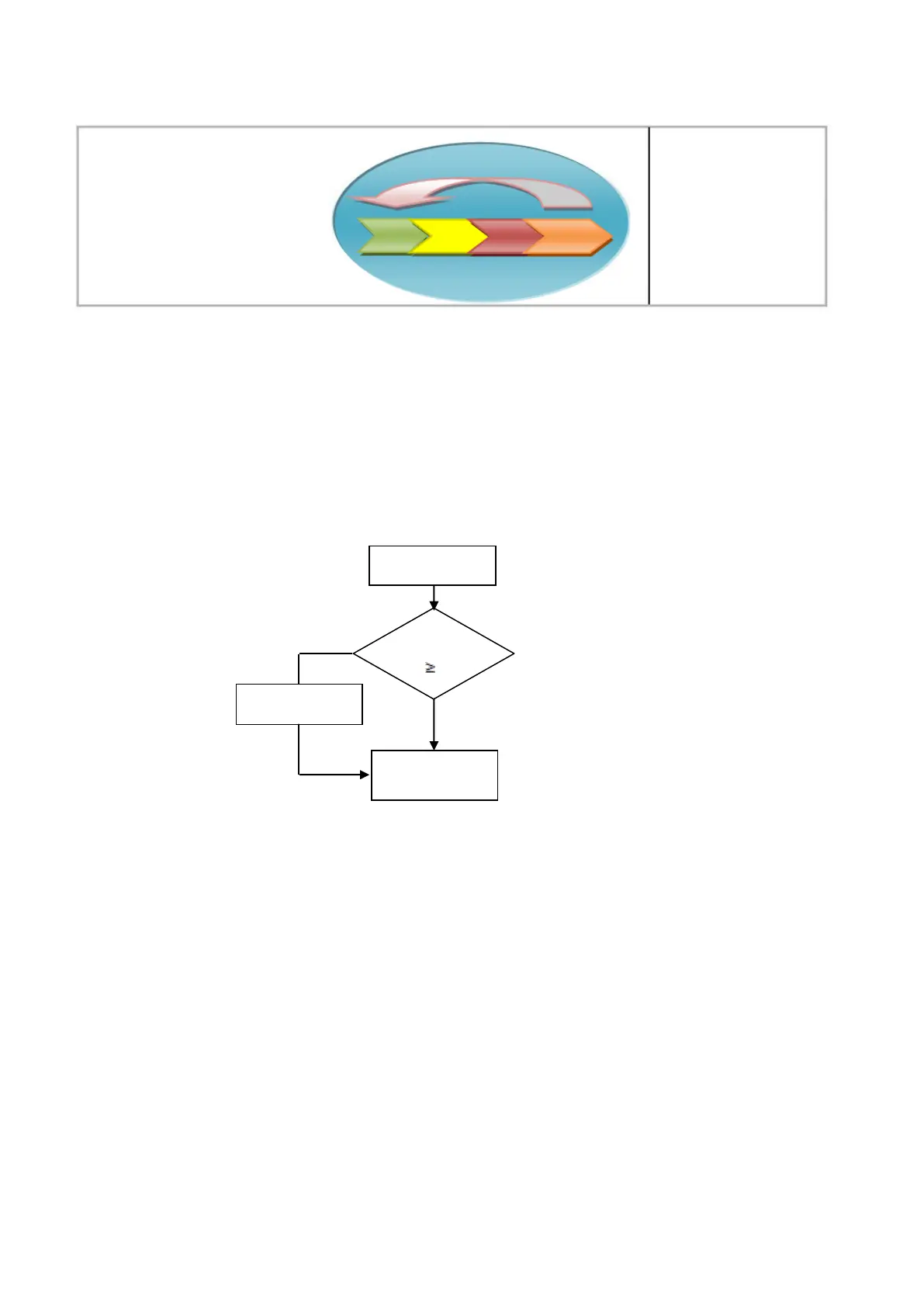

7.4 PRELUBE
The Prelube cycle is a pre-lubrication cycle that is triggered when the system is powered on or reset. If the pre-lube cycle
value is set to 1 or greater the VIP5 will perform the set number of Lubrication Phases.
Note that if Each Lubrication Phase comprises two or more Lubrication Cycles, then the total cycles performed will be
equal to the Lubrication Cycles multiplied by the Prelube Cycles.
Sul display del vip viene visualizzata la
quantità di flusso, rilevata mediante un
ingresso
Flow control
Flow control
Lubrificazione
PRELUBE
1
YES
RUN n
LUBE Cycle
NO
NORMAL
OPERATION
POWER ON
OR RESET
LUBE CONTROL WAIT
The display shows the current Flow rate
being detected in the system.
It is also possible to scroll through menus
to see totalizing flow counter
FIELD
CONTROL
COMPUTING
ALARM
OUTPUT
FLOW DATA
UPDATE
Fig. 7
Fig. 8
The display shows the current Flow rate being
detected in the system.
It is also possible to scroll through menus to see
totalizing flow counter
Pump on
ALLARM
FIELD
CONTROL
COMPUTING
ALARM
OUTPUT
FLOW DATA
UPDATE
Flow control
Lubrificazione
Flow Out of Range
Fig. 8
