DROPSA VIP5 Pro - 8. Cycle Monitoring; 8.1 Monitoring Options

19/27
8. CYCLE MONITORING
8.1 MONITORING OPTIONS.
There are four possible Cycle Monitoring Options, explained below.
2) TIMER – TIME ONLY
The Lubrication cycle is simply operated
according to a preset Timer value.
Therefore, no input is monitored to
confirm the correct completion of the
lubrication cycle.
LL
ALARM
MINIMUM LEVEL
MOTOR PUMP
PUMP
POWER
POWER
RESET BUTTON

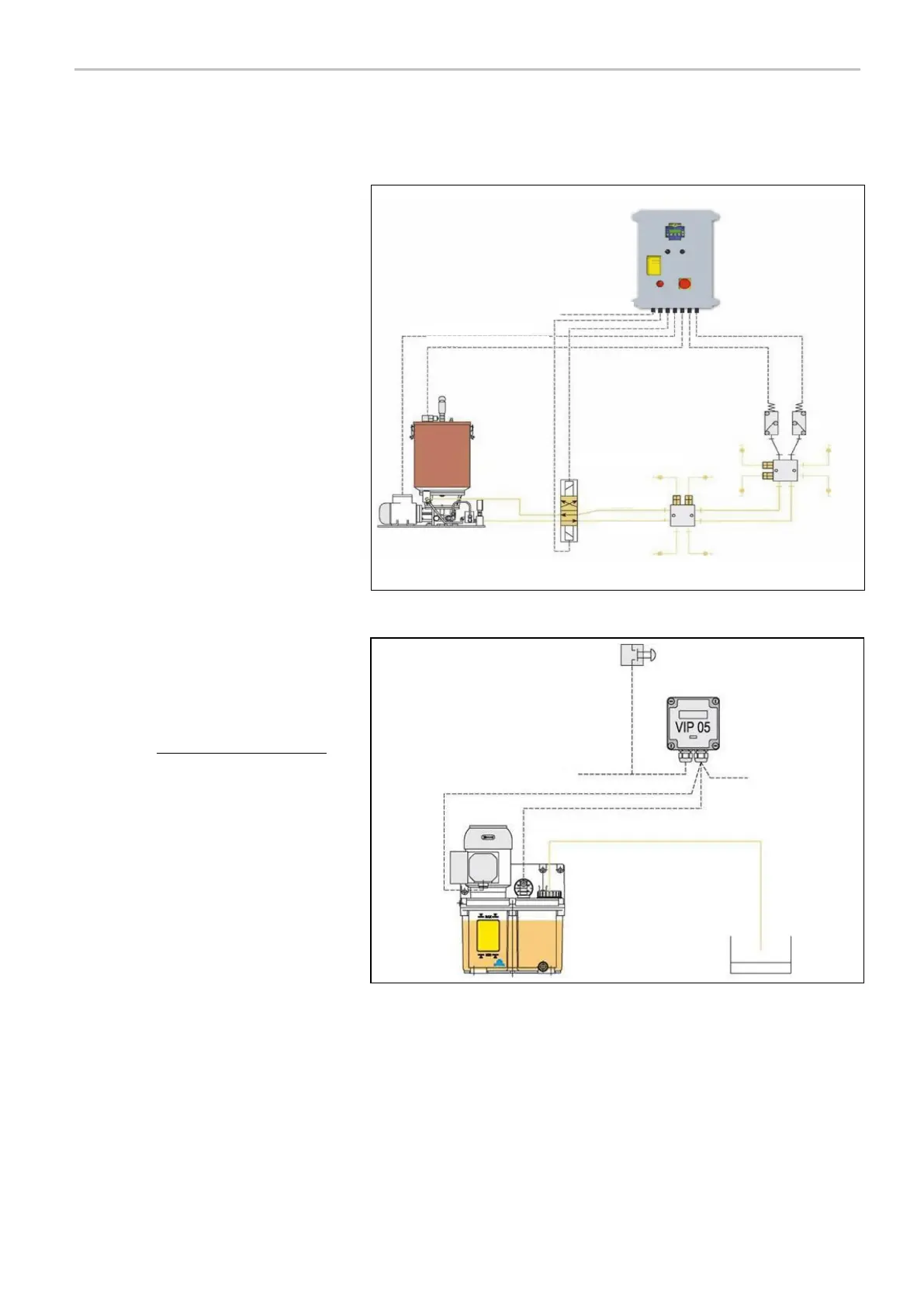

Fig. 10
Fig. 9
1) DUAL – DUAL LINE
Dual Line cycles generally use two pressure
switches connected to P1 and P2.
The VIP5 Pro starts the pump and must see
that P1 switch is closed within the timeout
time. After this, the Lubrication lines are
inverted by use of a directional valve.
The P2 switch must also then be made
within the timeout timer setting.
A user configurable DELAY timer can be set
to filter pressure spikes as in the PS
operating mode.
Power
Power
Minimum level
Inverter
Line 2
Line 1
P 2
P 1
