General
2.4 Dimensions & Operating Environment
Dimensions
See Fig 1a.
Operating environment
The permissible/foreseen operating environment is as follows:
Mounting Points
6 off Ø13
Filter Element
240
98
170100
27
6
143
607
375
340
280
Filter element
removal height

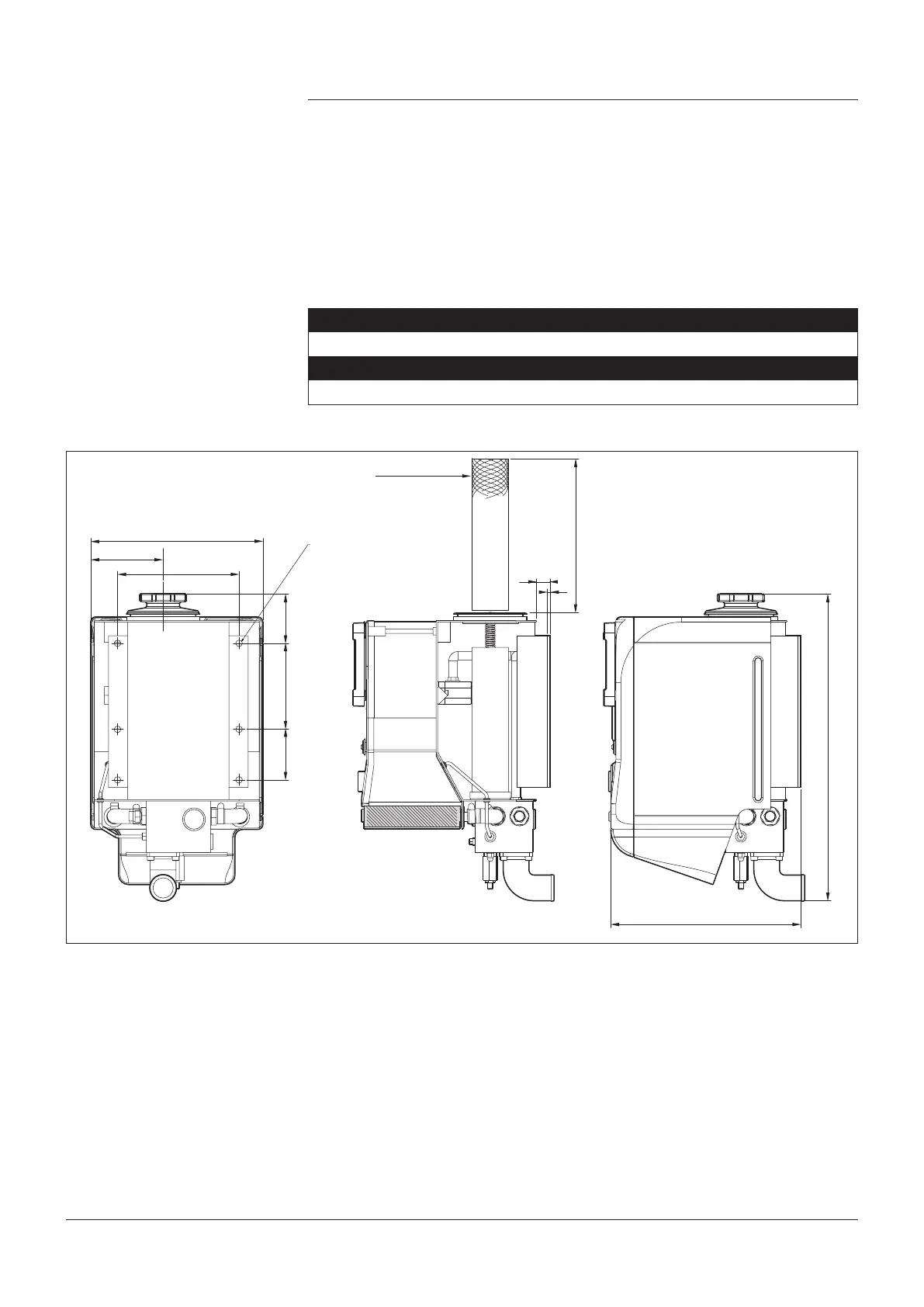

Fig 1a. Hydrapak general dimensions
Heat dissipation = 8kW for a 40°C Temp Rise
Resistant to tropical rain in operation and transit
Ambient temperature range -30 to +45°C
Truck Mounted, Worldwide, All seasons
