Installation
3.1 General Instructions
Handling- The bare machine weighs 17Kg, therefore it is recommended that
the machine is lifted with a suitable crane & sling. The machine must be lifted
using the mounting points provided.
Storing- Store the unit in a dry, heated building. Handle the machine with
care.
3.2 Mounting the Hydrapak
The new Hydrapak has 6 mounting points.
When installing the Hydrapak use holes 1, 2 ,5 and 6.
When replacing older Hydrapak 2’s with a Hydrapak, holes 1,2,3 and 4 are
used but holes 5 & 6 may also be used for extra support. This makes inter-
changing units easier when installing. See Fig 1b.
3
1
3
5
2
4
6

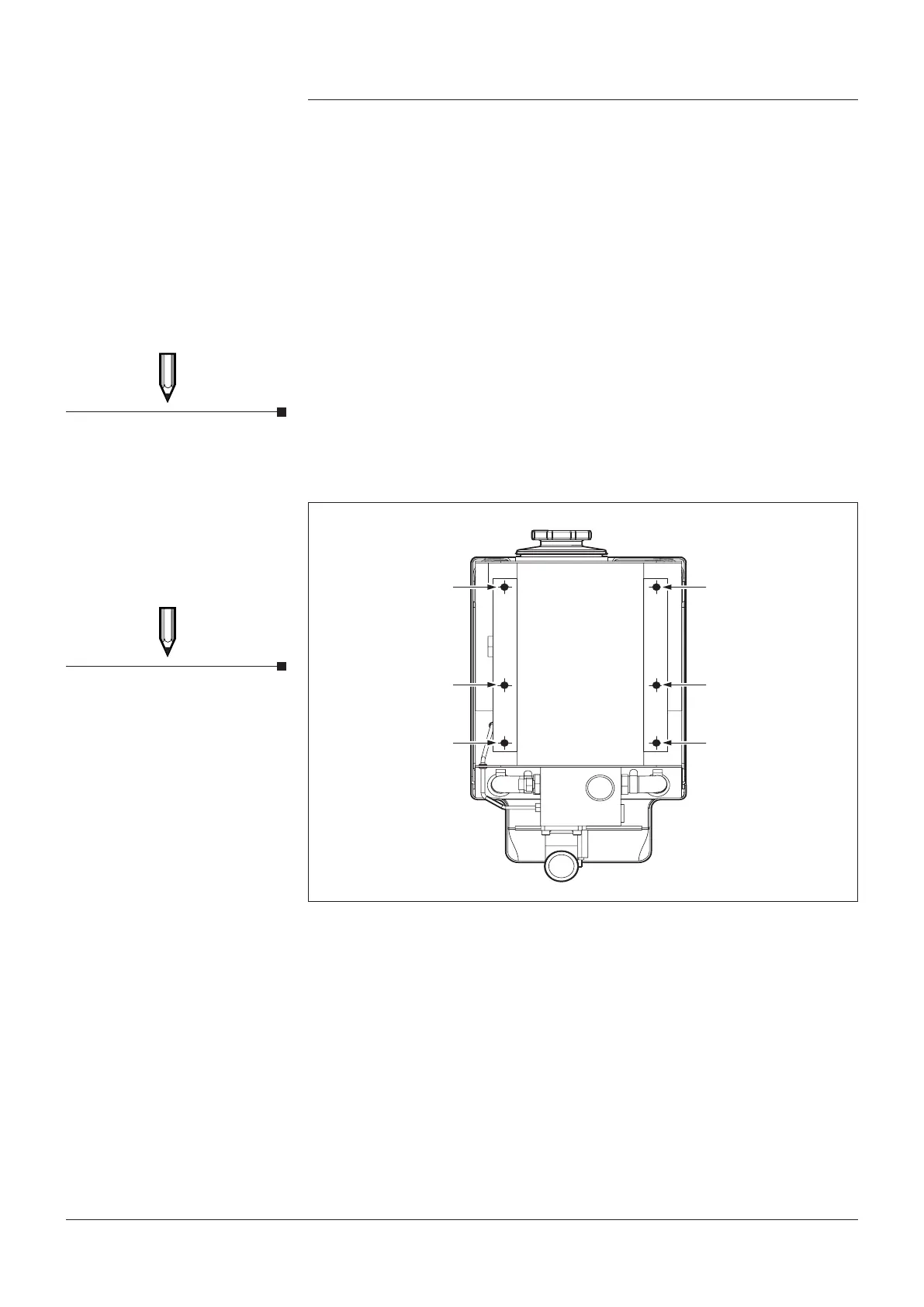

Fig. 1b. Mounting points.
Use 4 mounting points when
installing the Hydrapak.
NOTE
Anti - Vibration pads should
be used to isolate the cooler
from vehicle vibration.
NOTE
