106
8.7 Setting Alarm Response Actions
Purpose:
Alarm response actions will be activated when an alarm or exception occurs, including Event Hint Display, Full
Screen Monitoring, Audible Warning (buzzer), Notify Surveillance Center, Upload Picture to FTP, Trigger Alarm
Output and Send Email.
Event Hint Display
When an event or exception happens, a hint can be displayed on the lower-left corner of live view image. And you
can click the hint icon to check the details. Besides, the event to be displayed is configurable.
Steps:
1. Enter the Exception settings interface.
Menu > Configuration > Exceptions
2. Check the checkbox of Enable Event Hint.

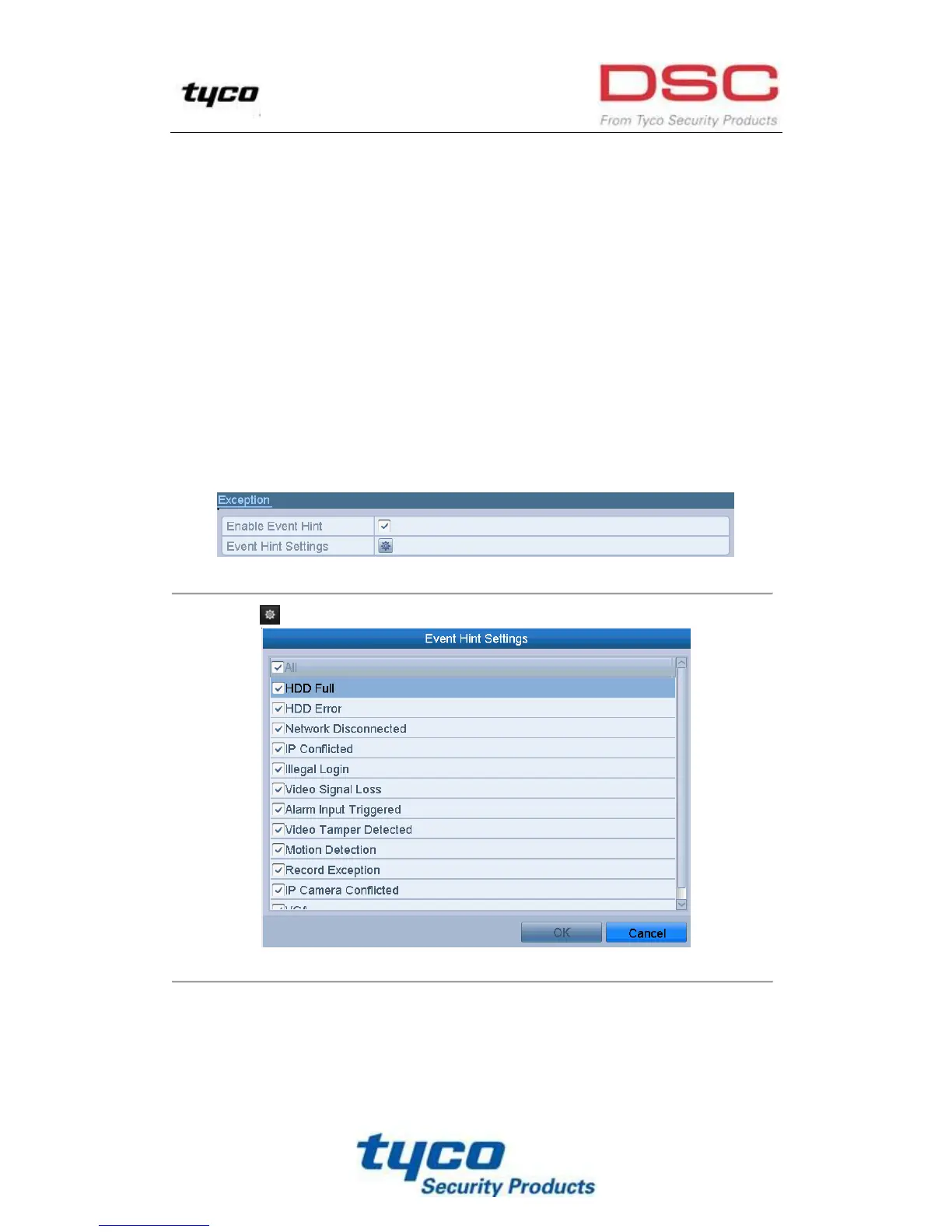

Figure 8. 16 Event Hint Settings Interface
3. Click the to set the type of event to be displayed on the image.
Figure 8. 17 Event Hint Settings Interface
4. Click the OK button to finish settings.
Full Screen Monitoring
When an alarm is triggered, the local monitor (VGA and HDMI
TM
monitor) display in full screen the video image
from the alarming channel configured for full screen monitoring.
