DSE Model 521 Remote Start Engine Management System - Operators Manual
DSE 521 ISSUE 4 4/4/02 MR 17
9. CALIBRATION
The 521 module can be calibrated by using either a PC with Interface Module 808 .
9.1 PC INTERFACE MODULE 808
The PC interface 808 kit comprises the following:-
• 808 Interface Module
• 25 to 9 way adapter
• FCC 68 (4 Pin) Connecting Lead
• Floppy disc with configuration software
10. ICON DESCRIPTIONS
The DSE P521 module is available with graphical icons instead of text. This is for use where text in
the English language may cause problems and also allows for a standard module for all world
markets to be used.

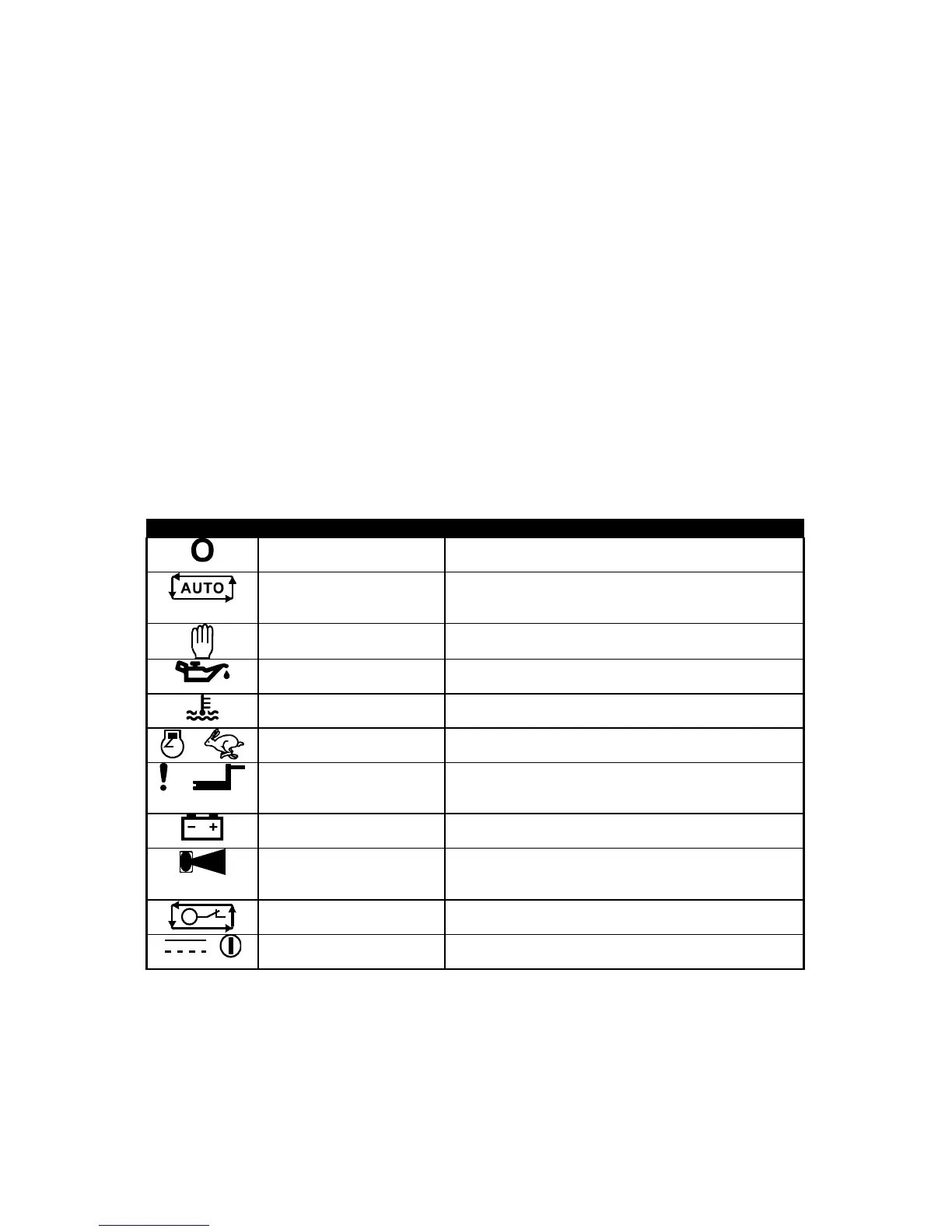

10.1 ICONS
Symbol Meaning Description
Stop/Reset Stop the generator and reset any alarm conditions.
Refer to Section 1 of this Manual.
Auto The controller will automatically start the generator
when given a remote start command. Refer to
section 1.2 of this Manual.
Manual The controller will start the generator under manual
control. Refer to section 1.3 of this Manual.
Low Oil Pressure A low oil pressure shutdown has occurred. Refer to
section 2.2 of this Manual.
High Engine Temperature A High Engine Temperature shutdown has occurred.
Refer to section 2.2 of the Manual.
Overspeed An overspeed shutdown has occurred. Refer to
section 2.2 of this Manual.
Fail to start/Over-crank The engine has failed to start after the pre-set
number of attempts. Refer to section 2.2 of this
manual
Charge Fail The charge alternator on the engine is not giving
sufficient output. Refer to section 2.1 of this Manual.
Common Alarm An alarm condition has been detected. Refer to
section 2 of this Manual.
(
Warning = Steady, Shutdown = Flashing)
I
Remote Start Active The remote start signal is being applied to the
module.
DC Power On The module is being supplied with a suitable DC
supply.
