DSE Model 521 Remote Start Engine Management System - Operators Manual
DSE 521 ISSUE 4 4/4/02 MR 9
3. INSTALLATION INSTRUCTIONS
The model 521 Remote Start Module has been designed for front panel mounting. Fixing is by 2
spring loaded clips for easy assembly.

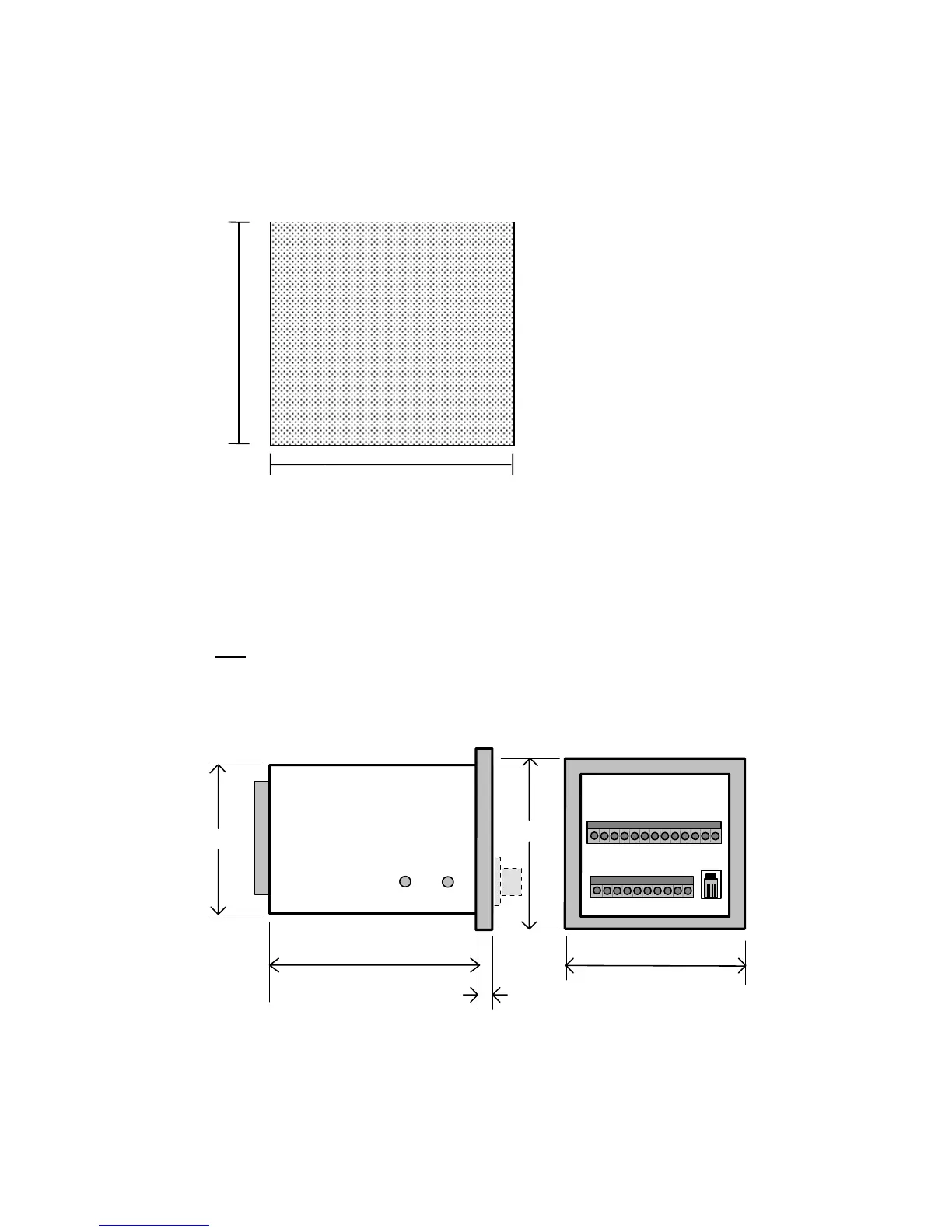

3.1 PANEL CUT-OUT
90.00mm
90.00mm
FIG 2
In conditions of excessive vibration the module should be mounted on suitable anti-vibration
mountings.
3.2 COOLING
The module has been designed to operate over a wide temperature range -30 to +55º C. However
allowances should be made for the temperature rise within the control panel enclosure. Care should
be taken
NOT to mount possible heat sources near the module unless adequate ventilation is
provided. The relative humidity inside the control panel enclosure should not exceed 85%.
3.3 UNIT DIMENSIONS
All dimensions in mm.
96.0mm
96.0mm
89.0mm
133.0mm
7.5mm
Panel Cut-out: 90mmx90mm
521 Auto Start Unit Arrangement
FIG 3
