1. OPERATION
On connection of the DC power supply to the module, the module becomes active. This is
indicated by the Power On LED illuminating.
1.1 CONTROL
Control of the 521 module is by a three position rotary switch or key-switch (specified on ordering),
mounted on the front of the module with OFF, AUTO and MANUAL positions.
O
I
AUTO
Deep Sea Electronics plc
Model 521

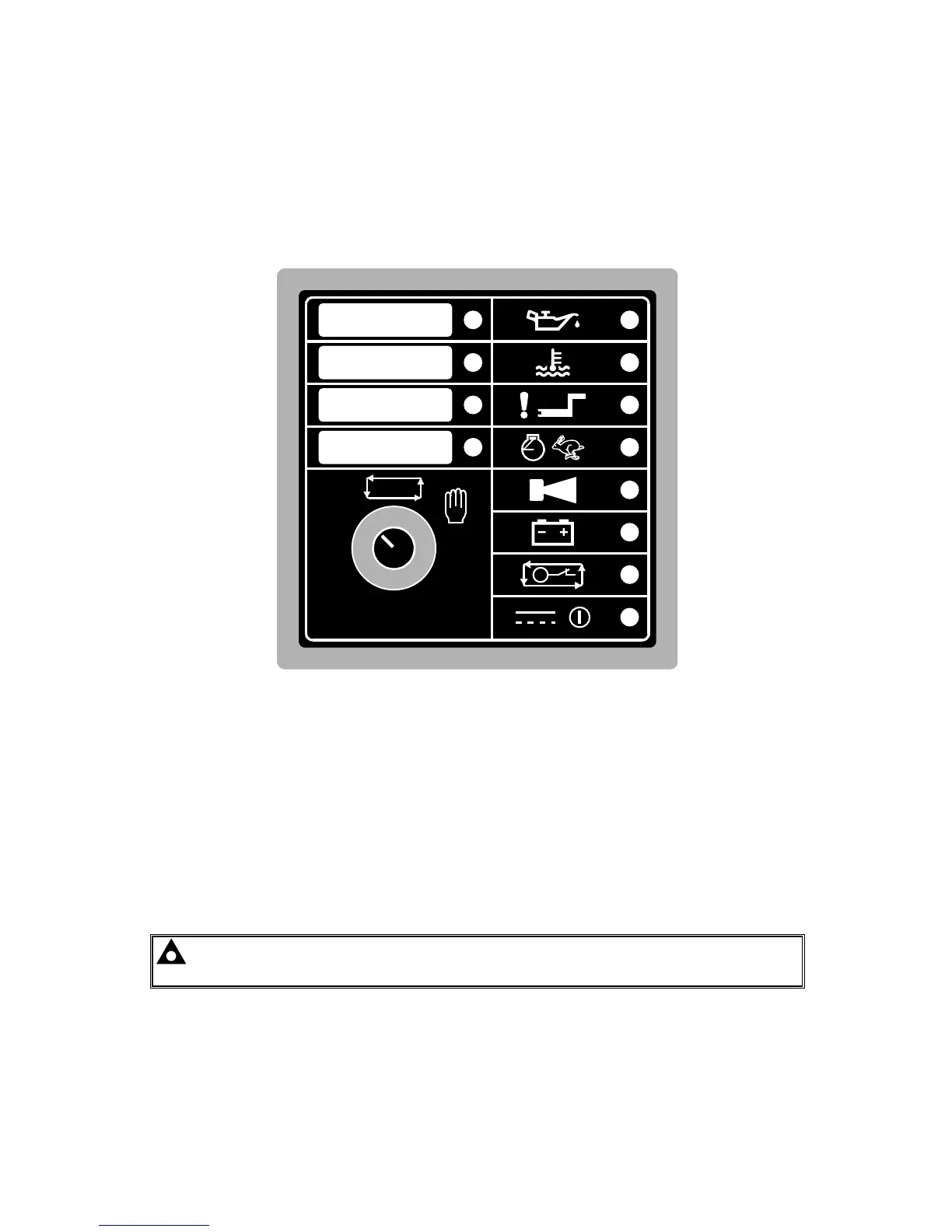

FIG 1
1.2 AUTOMATIC MODE OF OPERATION
The module is activated by turning the selector switch to the AUTO position.
When a
Remote Start signal is applied to the remote start input, the following sequence is
initiated:-
The
Remote Start Present LED illuminates.
To allow for false signals the
Start Delay timer is initiated, after this delay, if the pre-heat output
option is selected this timer is then initiated, and the corresponding auxiliary output which is
selected energises.
NOTE:- If the Remote Start signal is removed during the Start Delay timer the unit will
return to a stand-by state.
After the above delays the Fuel Solenoid is energised, then the Starter Motor is engaged.
The engine is cranked for a pre-set time period. If the engine fails to fire during this cranking
attempt then the starter motor is disengaged for the pre-set rest period. Should this sequence
continue beyond the set number of attempts, the start sequence will be terminated and
Fail to
Start
fault will be displayed by a flashing LED.
