056-051 Gencomm Control Keys Issue 3 – A.D.Manton
• REMOTE CONTROL OUTPUTS
DSE7300 and DSE8000 series have the option of configuring outputs, expansion outputs and LEDs to Remote
Control sources.

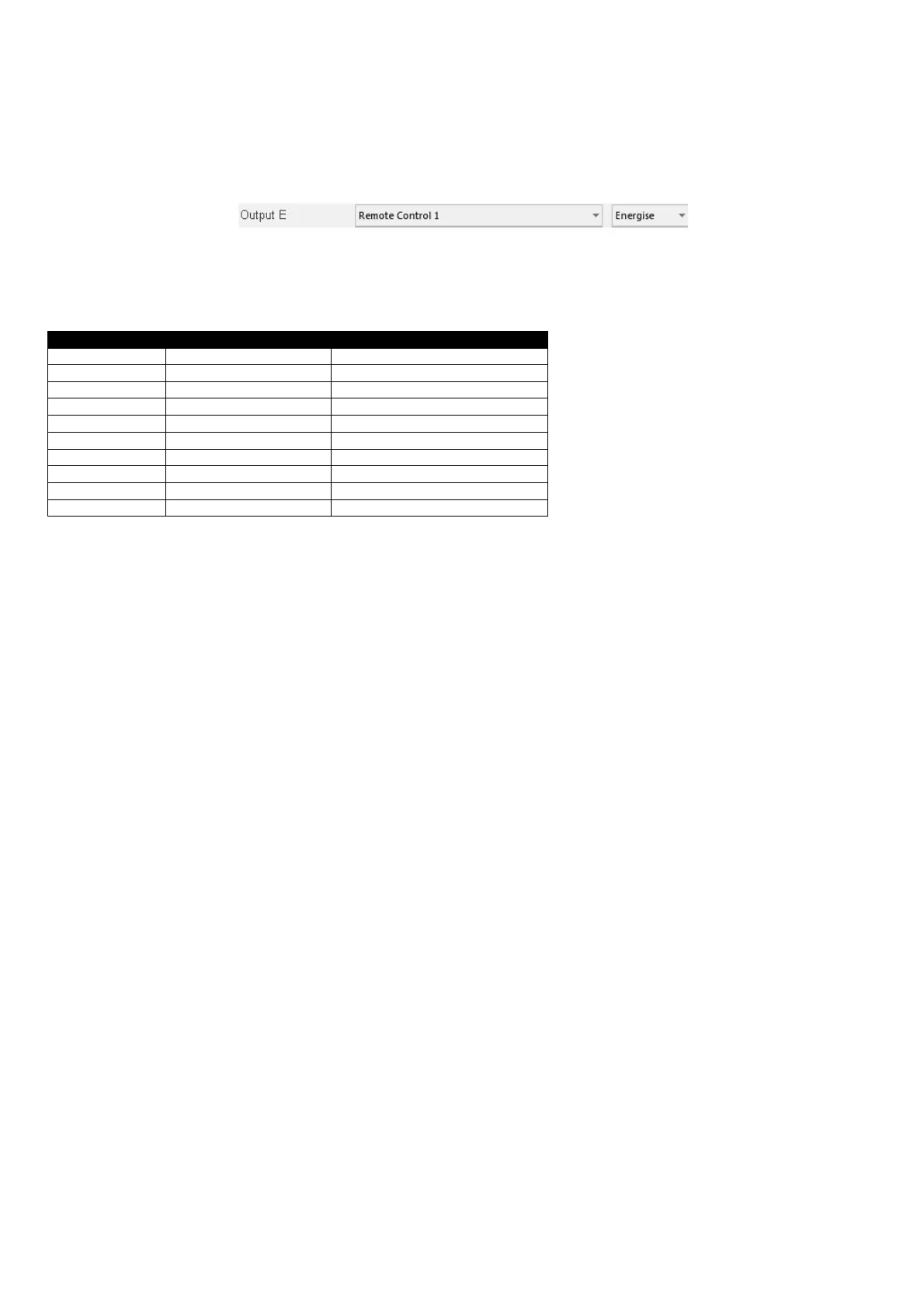

Example of configuration to Remote Control in DSE Config Suite Software
Remote control outputs are controlled by writing 0 (off) or 1 (on) to the following Gencomm registers.
Modbus page 193 (Address C100 Hex) (49408 decimal) and the following 9 registers:
Hex address Decimal address Output
C100 49408 Remote Control Output 1
C101 49409 Remote Control Output 2
C102 49410 Remote Control Output 3
C103 49411 Remote Control Output 4
C104 49412 Remote Control Output 5
C105 49413 Remote Control Output 6
C106 49414 Remote Control Output 7
C107 49415 Remote Control Output 8
C108 49416 Remote Control Output 9
C109 49417 Remote Control Output 10
