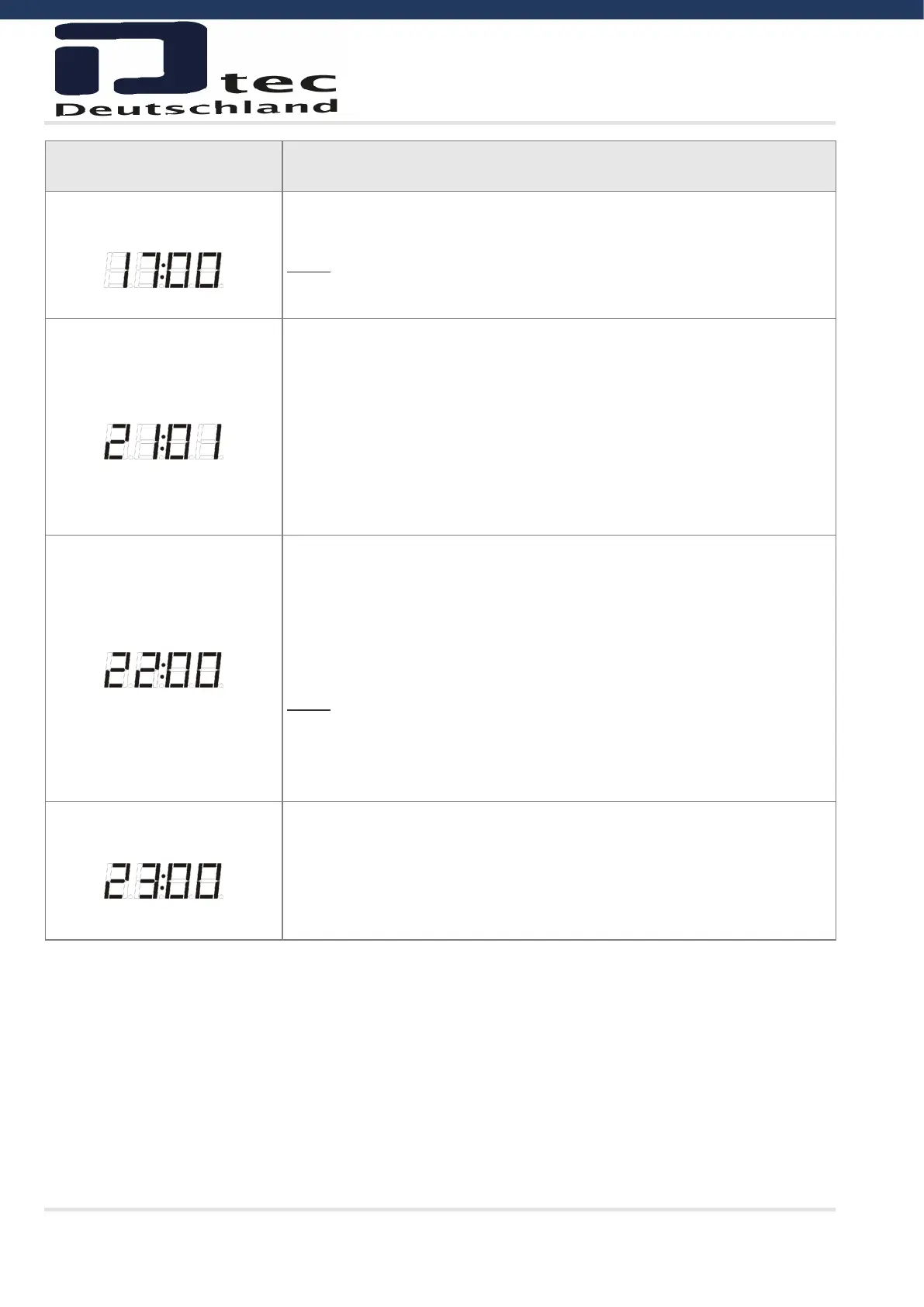

Parameter Value
Auto close ½ open
00 =
No auto close from ½ open limit
01 =
Auto close from ½ open limit
Notice:
Auto close must be activated in parameter 32.
Safety edge selection
Note that actual edge must be connected but not activated before this setup. If
the controller has observed a wrong edge select, the display will show ERR.
Please note that nothing must be connected to X3 terminal 23-24 when param-
eter value 03 have been chosen.
01 = NCC edge or DW switch AU contact
02 = 8k2 electrical edge
03 = optical edge (Type FRABA)
04 = DW switch (AG contact)
05 = Wireless safety edge with test function (X20)
After run
00 = No after run
> 00 After run active (after run time 0.01 – 0.50 sec.).
Monitoring of PNE/DW air switch safety edge is automatically selected when
after run is active. When the door reaches the close limit switch, the door will
continue to close until PNE/DW air switch activate or until the after run time
exceeds.
Notice:
Can be used to prevent that the door reverses when it reaches the floor before
the close limit gets activated – for instance if there is dirt in the door opening or
if the wires are getting longer.
Extra safety edge
(X20 – terminal 3-4)
00 = No extra safety edge
01 = Extra safety edge works parallel with primary safety edge
02 = Extra safety edge stops door in opening direction
03 = Stop and short reversal in opening direction
05 = Slack rope switch
06 = Slack rope switch (NC)
