Installation.
Please ignore middle bracket on extrution.

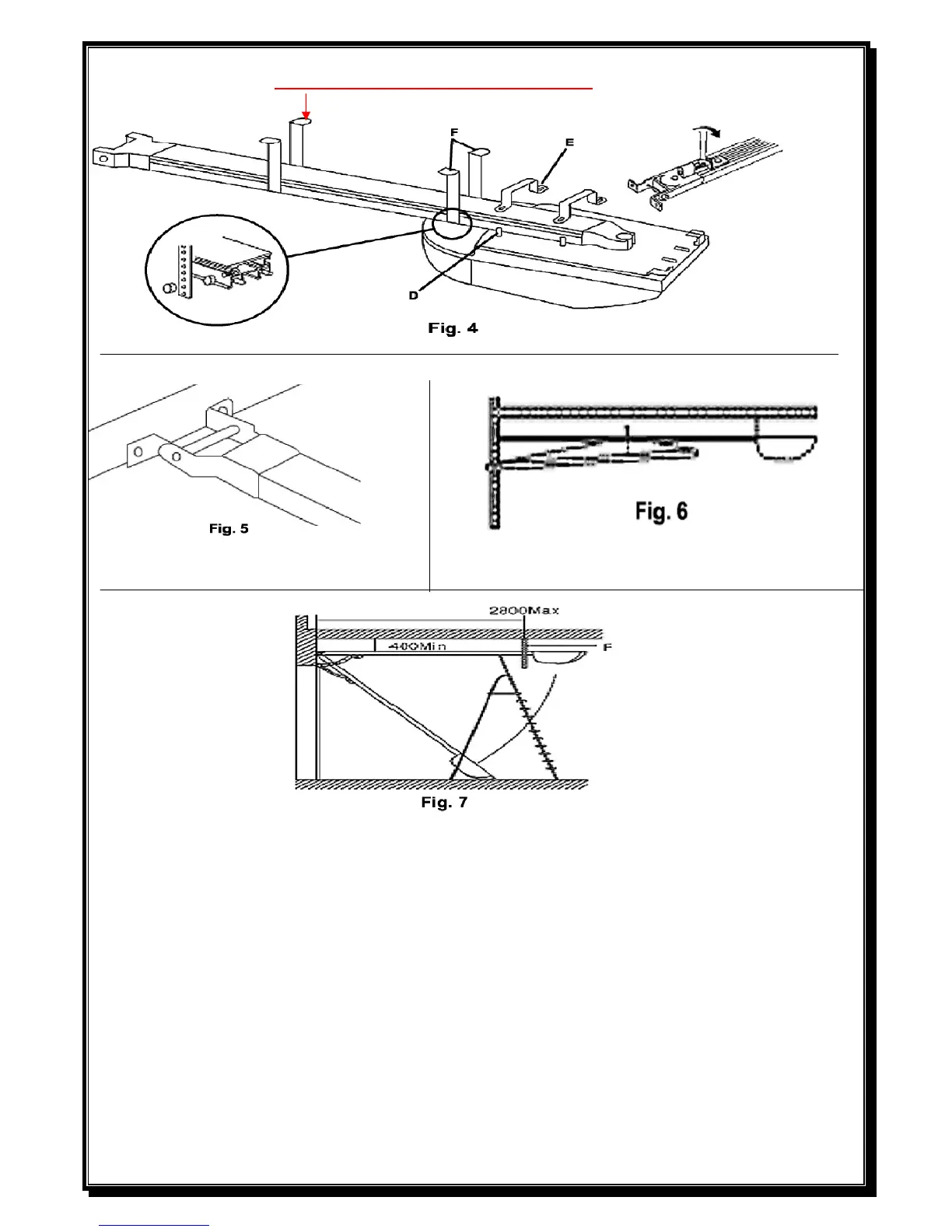

Position the bracket (E) on the studs (D) and secure them in place using 6 mm wing nuts.
Fix the DTS600/800 opener to the doorframe or to the ceiling with the correct fixing (Fig. 5) maintaining a min. gap of 30 mm
from the panel’s maximum height (Fig. 6). Check measurements for drilling insert and lock brackets F and fix the DTS600/800
opener to the ceiling with the correct fixings (Fig 6). Cut off any fixing straps excess.
Warning: Make sure the opener is affixed to noggins in ceiling and not just to plasterboard. Failure to have safe secure
fixing will lead to opener falling causing serious personal and/or property damage.
Note: A set of fixing straps should be located in the centre of the aluminium rail to prevent flex that will result in phantom
reversing.
