Dual Compact Series User Manual

Channels 1,2,3 and 4
Power Output (14.4VDC, 20Hz ~ 20kHz):
•60 Watts RMS x 4 channels @ 4 Ohms
•85 Watts RMS x 4 channels @ 2 Ohms
•200 Watts RMS x 2 channels @ 4 0hms (bridged)
Peak Music Power Output: 400 Watts
Subwoofer
Power Output (14.4VDC, 20Hz ~ 250Hz):
•450 Watts RMS x 1 channel @ 2 Ohms
Peak Music Power Output: 800 Watts
Total Peak Music Power: 1200 Watts
Signal to noise ratio: > 90dB (THD < 0.05% @ 4:, 14.4V)
Frequency response:
10Hz -35kHz (-3dB)
Amplifier dimensions: 1.6” (41mm) x 4.7” (119mm) x 10.2” (259mm)
DA560D

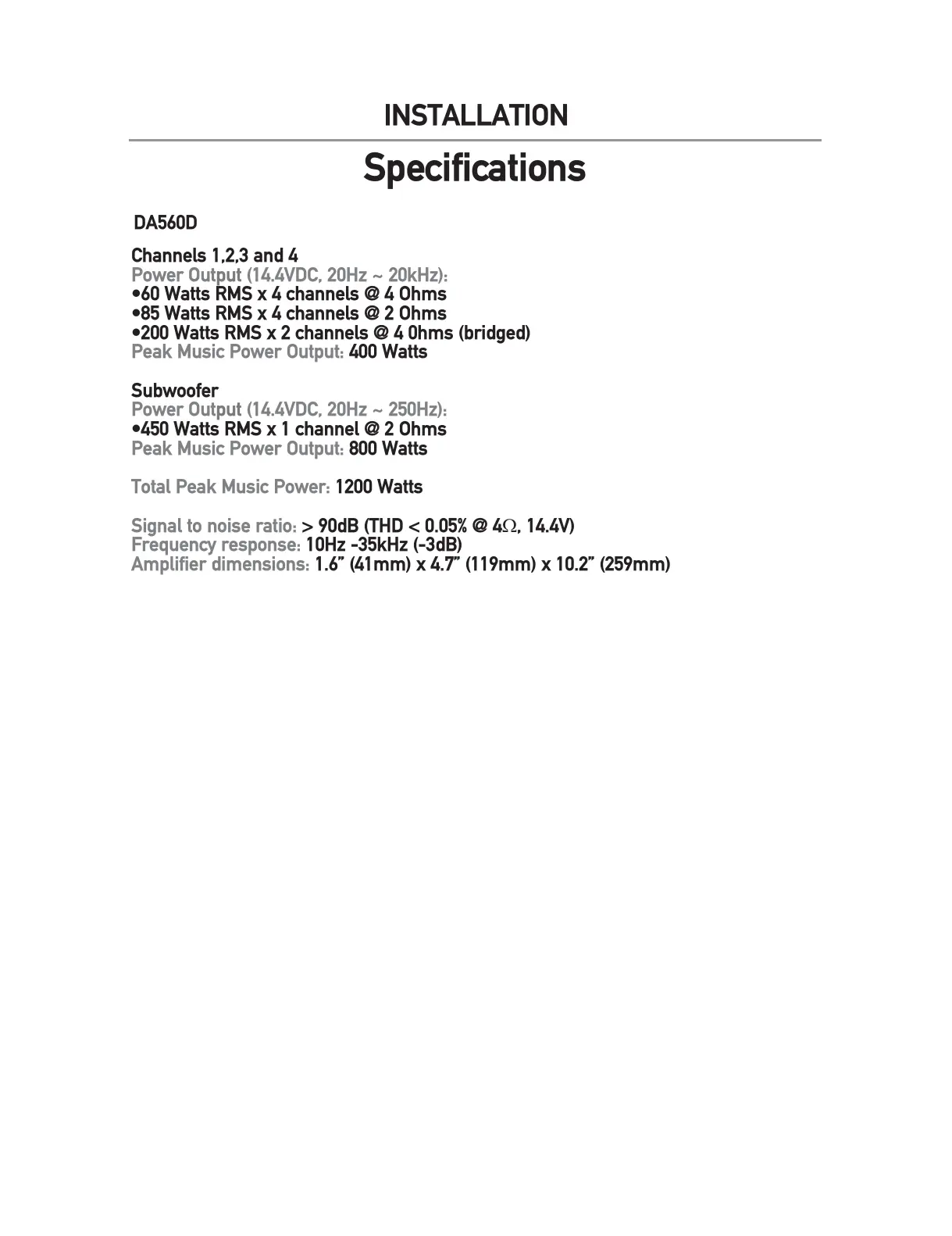

INSTALLATION
Specifications
