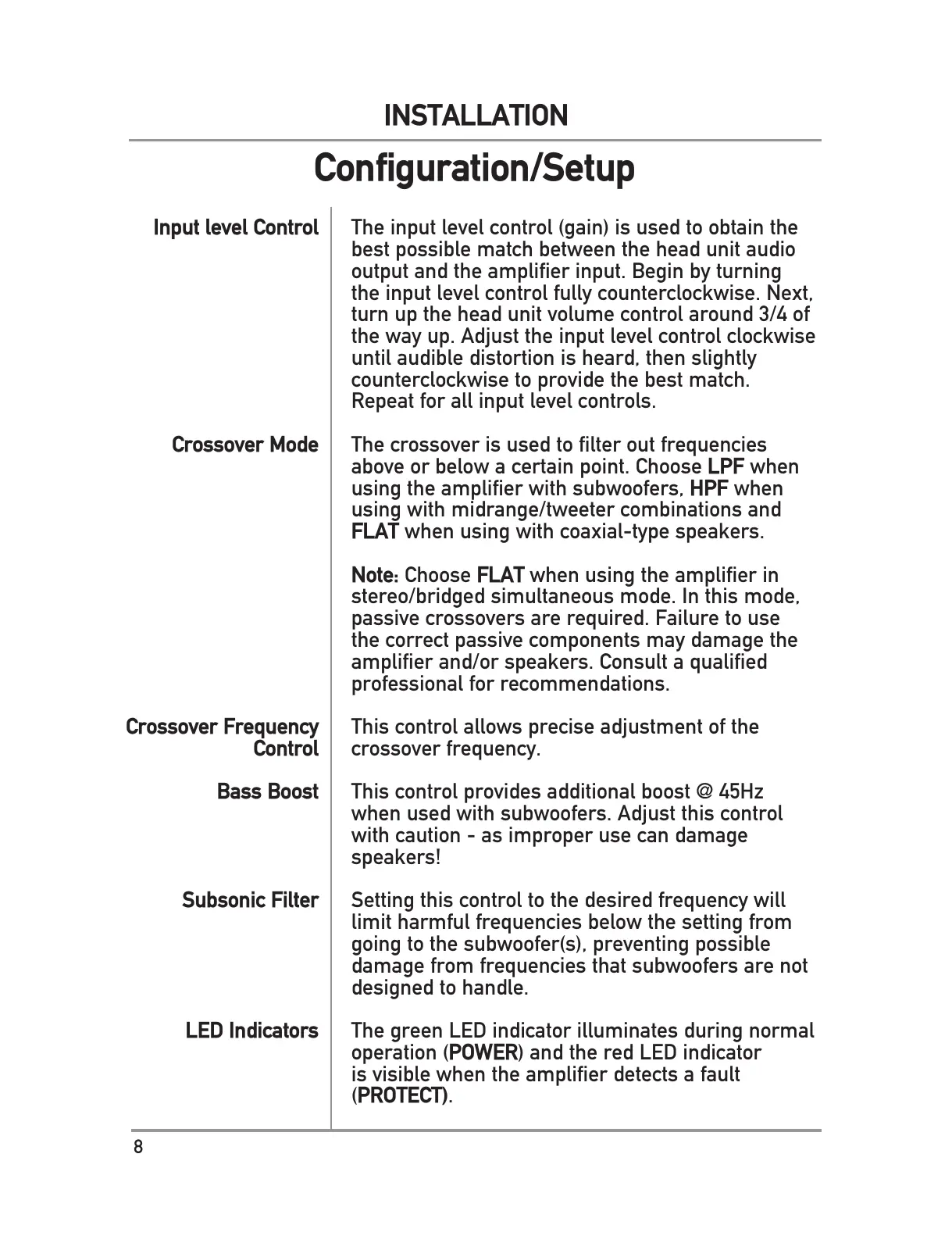

4HE INPUT LEVEL CONTROL GAIN IS USED TO OBTAIN THE
BEST POSSIBLE MATCH BETWEEN THE HEAD UNIT AUDIO
OUTPUT AND THE AMPLIFIER INPUT "EGIN BY TURNING
THE INPUT LEVEL CONTROL FULLY COUNTERCLOCKWISE .EXT
TURN UP THE HEAD UNIT VOLUME CONTROL AROUND OF
THE WAY UP !DJUST THE INPUT LEVEL CONTROL CLOCKWISE
until audible distortion is heard, then slightly
COUNTERCLOCKWISE TO PROVIDE THE BEST MATCH
2EPEAT FOR ALL INPUT LEVEL CONTROLS
4HE CROSSOVER IS USED TO FILTER OUT FREQUENCIES
ABOVE OR BELOW A CERTAIN POINT #HOOSE LPF WHEN
USING THE AMPLIFIER WITH SUBWOOFERS HPF WHEN
USING WITH MIDRANGETWEETER COMBINATIONS AND
FLAT WHEN USING WITH COAXIALTYPE SPEAKERS
Note: Choose FLAT WHEN USING THE AMPLIFIER IN
STEREOBRIDGED SIMULTANEOUS MODE )N THIS MODE
PASSIVE CROSSOVERS ARE REQUIRED &AILURE TO USE
THE CORRECT PASSIVE COMPONENTS MAY DAMAGE THE
AMPLIFIER ANDOR SPEAKERS #ONSULT A QUALIFIED
professional for recommendations.
4HIS CONTROL ALLOWS PRECISE ADJUSTMENT OF THE
CROSSOVER FREQUENCY
4HIS CONTROL PROVIDES ADDITIONAL BOOST (Z
WHEN USED WITH SUBWOOFERS !DJUST THIS CONTROL
WITH CAUTION AS IMPROPER USE CAN DAMAGE
SPEAKERS
3ETTING THIS CONTROL TO THE DESIRED FREQUENCY WILL
LIMIT HARMFUL FREQUENCIES BELOW THE SETTING FROM
GOING TO THE SUBWOOFERS PREVENTING POSSIBLE
DAMAGE FROM FREQUENCIES THAT SUBWOOFERS ARE NOT
designed to handle.
4HE GREEN ,%$ INDICATOR ILLUMINATES DURING NORMAL
OPERATION POWER AND THE RED ,%$ INDICATOR
IS VISIBLE WHEN THE AMPLIFIER DETECTS A FAULT
PROTECT).
Input level Control
Crossover Mode
Crossover Frequency
Control
Bass Boost
Subsonic Filter
LED Indicators
