Dual DV526BT - Wiring Diagram

6

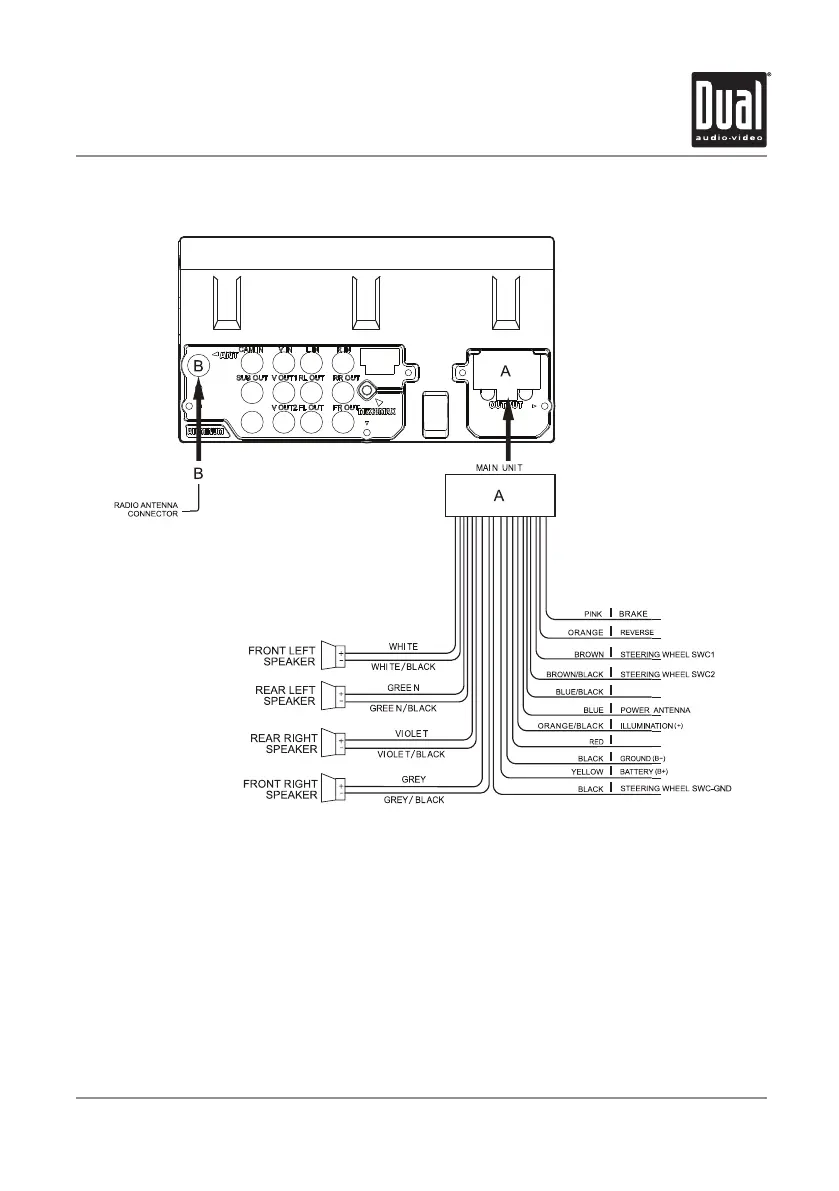

Wiring Diagram - Inputs/Outputs
DV526BT INSTALLATION
Note:
When replacing a fuse, make sure to use the correct type and amperage. Using an incorrect fuse could cause
damage. The unit uses (1) 15 amp ATM mini style fuse located inside the in-line filter box.
Wiring Notes:
Subwoofer output
The Subwoofer preamp audio output (black jacket with green RCA) is active in all audio modes.
Rear camera input
A rear view camera (not included) can be used with the Camera input.
AMP CONTROL
ACC (B+)
