DXDM280BT INSTALLATION

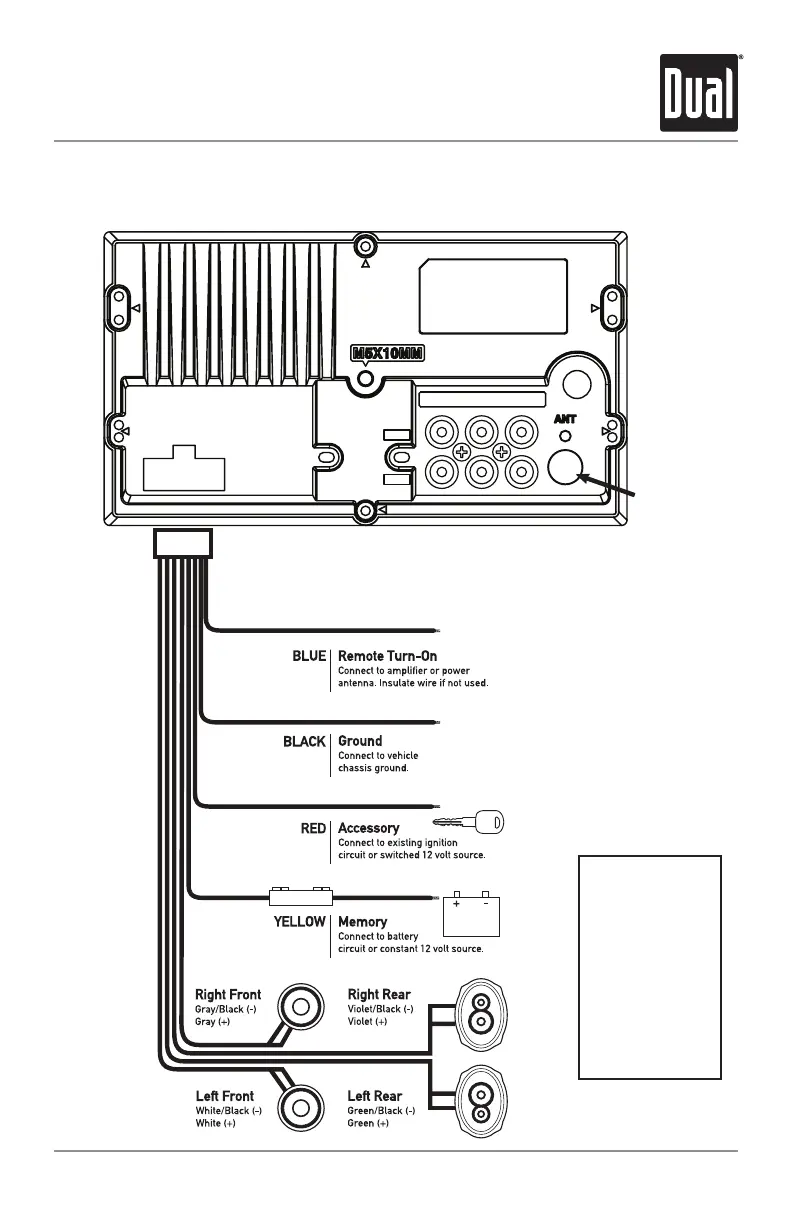

Wiring Diagram
10 AMP
AGC Fuse
Antenna
Connector
SUBREARFRONT
L-CH
R-CH
FUSE
When replacing the
fuse, make sure new
fuse is the correct type
and amperage. Using
an incorrect fuse could
damage the radio.
The unit uses one 10 amp
AGC fuse located beside
the wiring connector.
