Dual iPlug XDMR7710 - Wiring Diagram

3
FUSE
When replacing the fuse,
make sure new fuse is the
correct type and amperage.
Using an incorrect fuse
could damage the radio.
The XDMR7710 uses one
10 amp ATM fuse located
beside the wiring connector.
XDMR7710 INSTALLATION

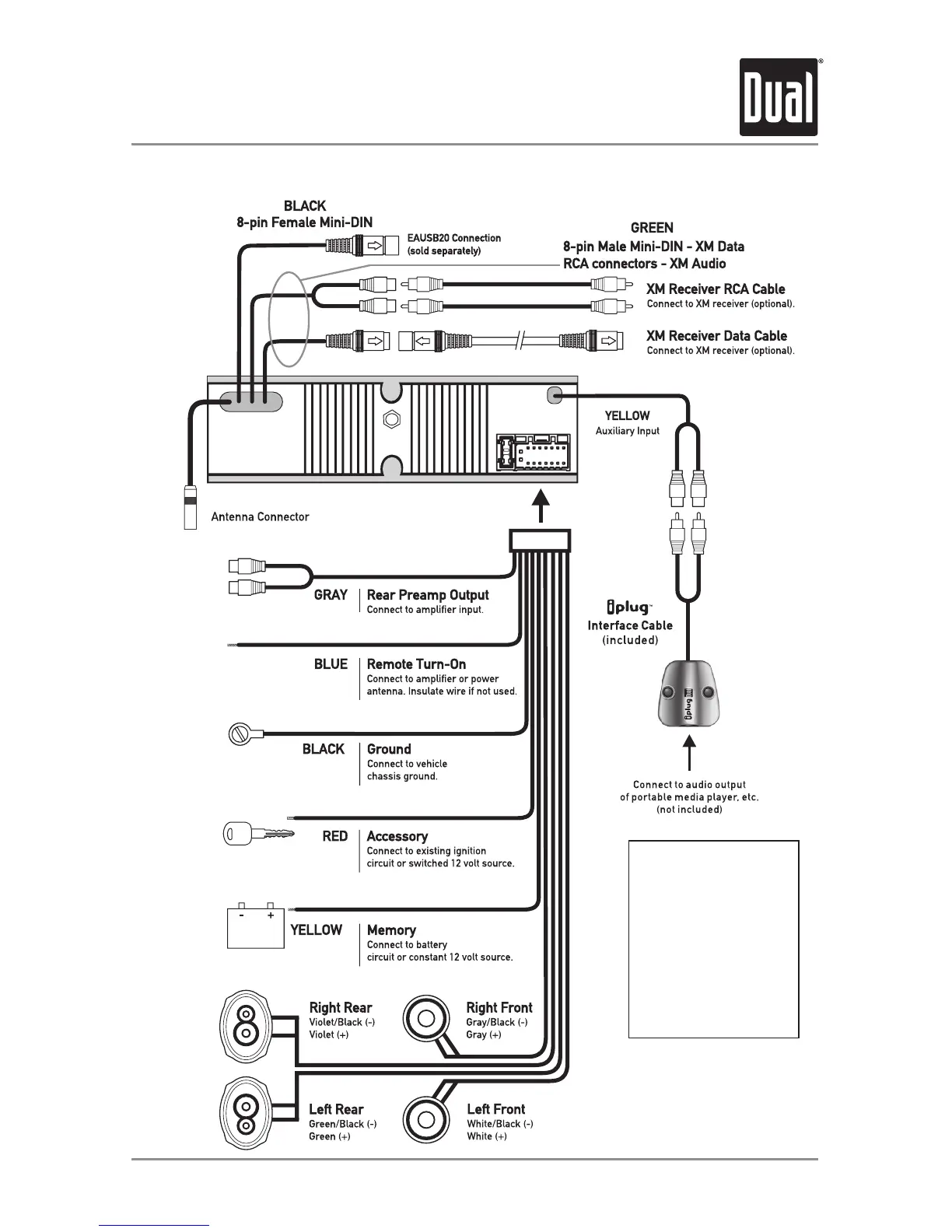

Wiring Diagram
