Preparation
Please read entire manual before installation.
Before You Start
• Disconnect negative battery terminal. Consult a qualified technician for instructions.
• Avoid installing the unit where it would be subject to high temperatures, such as
from direct sunlight, or where it would be subject to dust, dirt or excessive vibration.

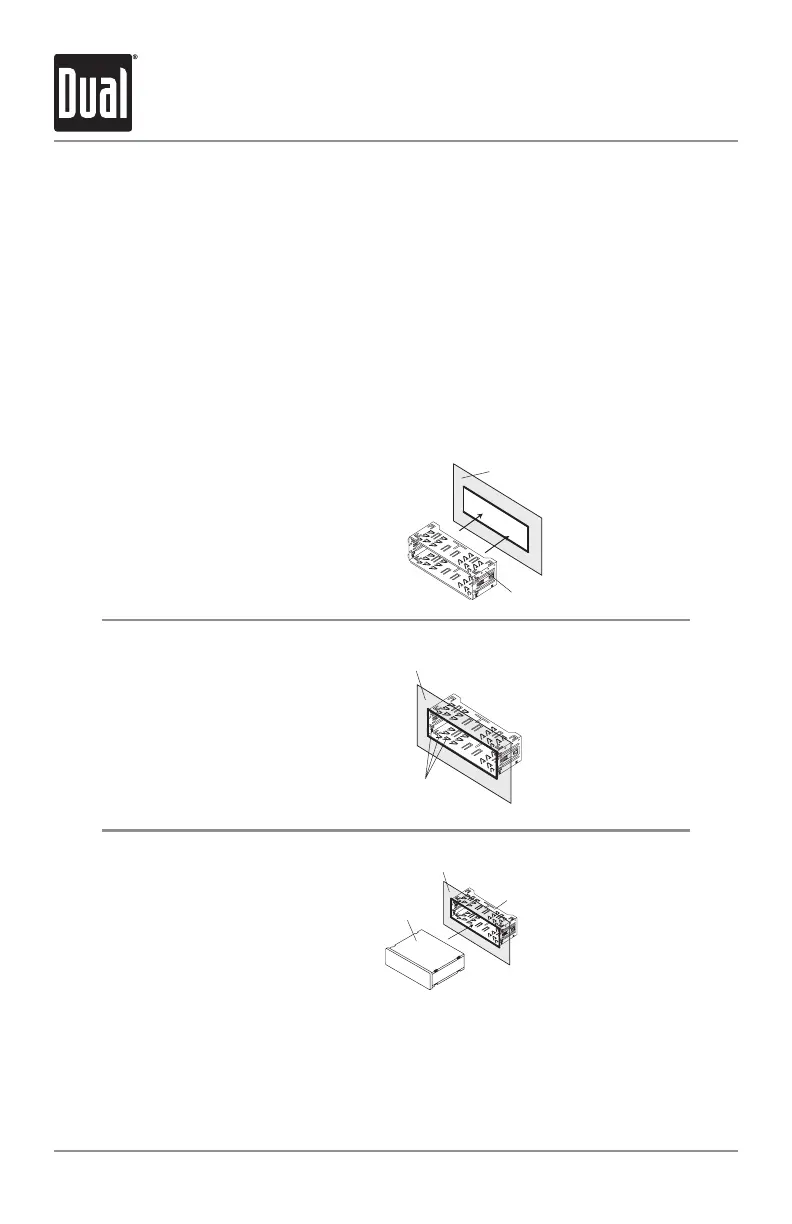

Mounting the Radio
Step 3:
Connect all wiring
harnesses and slide
the head unit into the
mounting sleeve until
it clicks into place.
Step 1:
Insert the mounting
sleeve into the radio
opening of your boat
as shown to the right.
Step 2:
Bend the mounting tabs
around the mounting
sleeve around the radio
opening of your boat as
shown in the image
to the right.
Mounting Sleeve
Radio opening of your boat
Radio opening of your boat
Radio opening of your boat
Mounting Sleeve
Mounting Tabs
Mounting Sleeve
t
Head Unit
MXD140 INSTALLATION
