Dual MXDMA80 - Installation Wiring Diagram

3
FUSE
When replacing the fuse,
make sure new fuse is the
correct type and amperage.
Using an incorrect fuse
could damage the radio.
The MXDMA80 uses one
10 amp ATM fuse located
beside the wiring connector.
MXDMA80 INSTALLATION

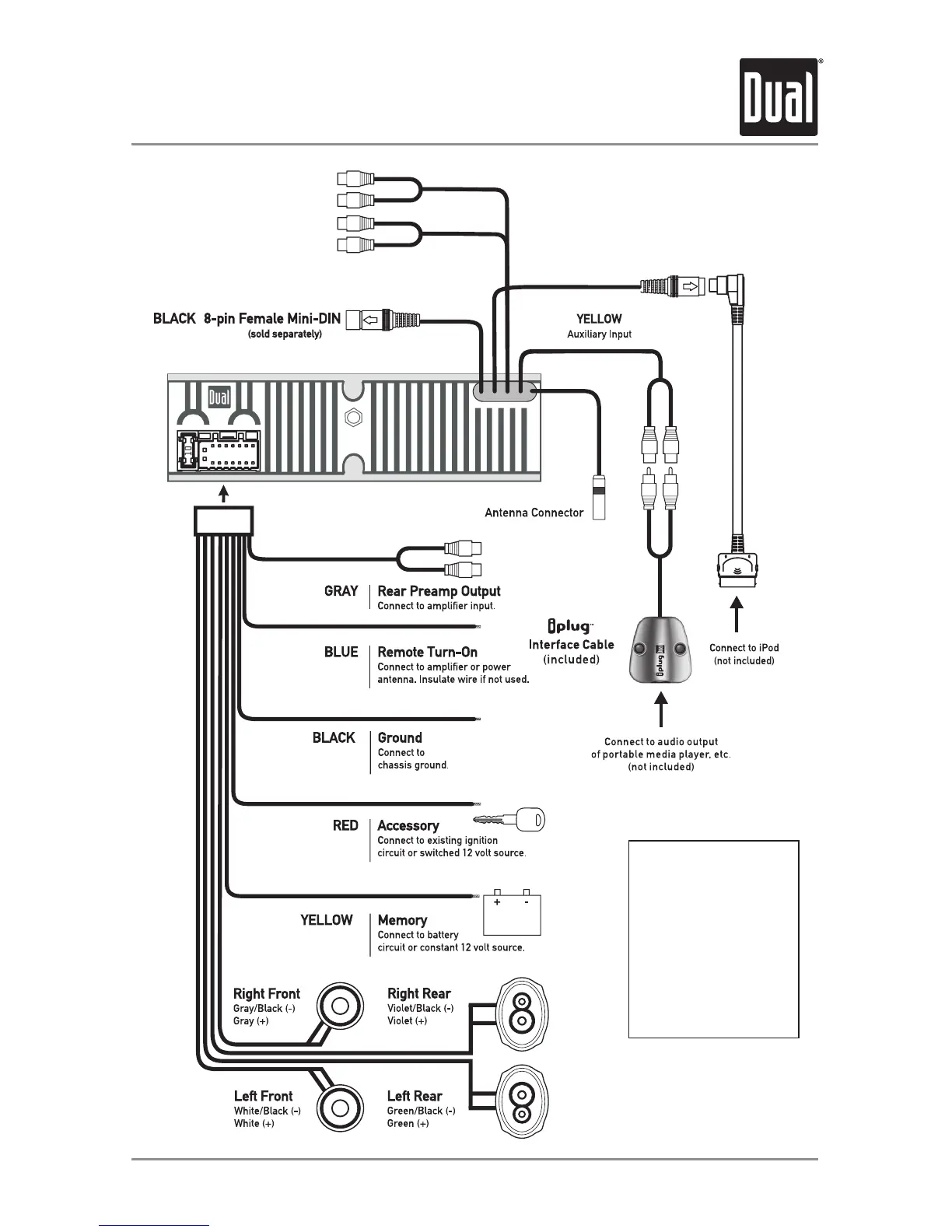

Wiring Diagram
MWR30
BLUE
Sub Out
BLACK
Front Preamp Line Out
WHITE
10-pin iPod Connection
