Dual XP Series User Manual

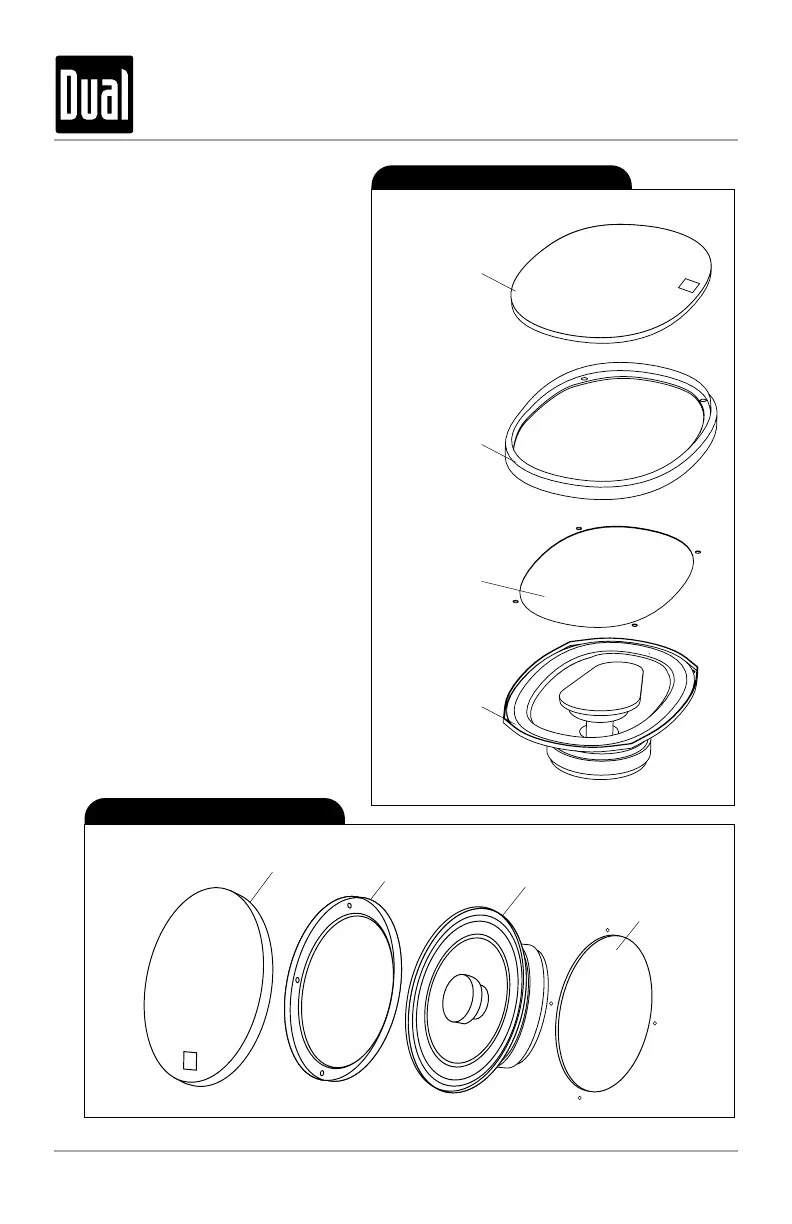

grille
grille
mounting
ring
mounting
hole cut-out
speaker
mounting ring
speaker
mounting hole
cut-out
Standard Door Installation
Standard Rear Deck Installation
4
XS SERIES INSTALLATION
Mounting
1. Determine where the speakers will
be mounted. Ensure an area large
enough for the speaker to mount
evenly. Be sure that the mounting
location is deep enough for the
speaker to fit
2. Refer to the specification chart to
determine the proper diameter hole
to cut for your speaker model.
3. If supplied, use the plastic mounting
ring as a template to mark the
locations for the mounting screws.
Drill the holes with a 1/8" bit.
4. Be sure to observe proper polarity
when connecting the wires.
The speaker's positive terminal is
indicated with a "+".
5. Fit the ring and speaker to the
cutout. Mount them using the
enclosed screws. If supplied, fit the
grille inside the ring and press
gently, but firmly, into place.
