Certified FLASH-R
16/27

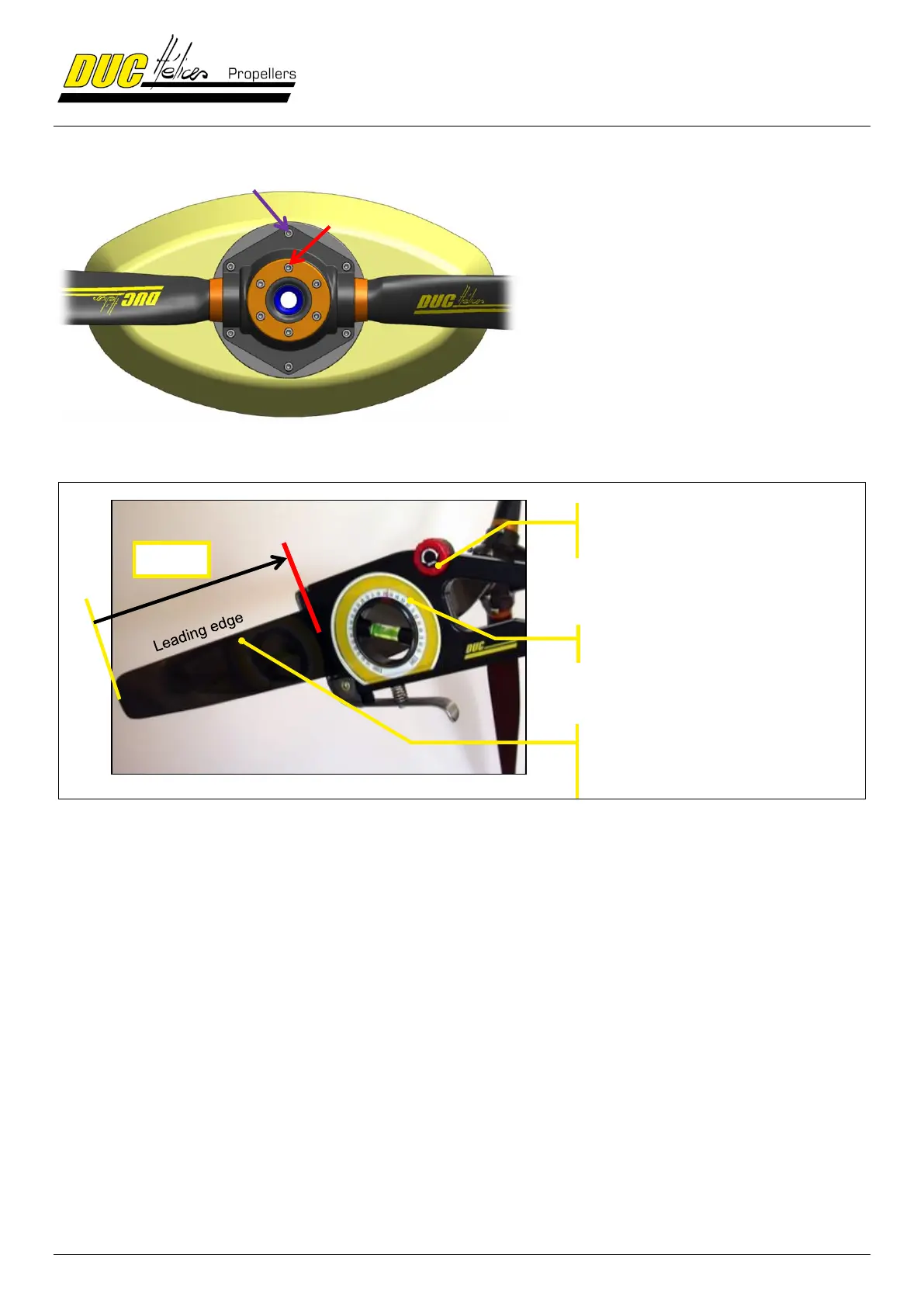

STEP 2.
Slightly untighten the propeller fixing screws
and the hub assembly screw.
STEP 3.
Horizontal blade, leading edge upward, place the adjustment tool at 25 cm from the tip of the blade, intrados
side (flat), handle down.
STEP 4.
Set the desired value of the adjustment tool.
Caution to apply the value X if a correction of the aircraft plan was needed.
STEP 5.
Correct the position of the bubble on the adjustment tool by rotating the blade in the hub. To do this, using a mallet,
lightly tap on the foot of the blade in the desired direction.
Do not apply pressure near the trailing edge, thinner area.
Adjustment roller of the
angle of attack
Reading blade angle
Intrados of the blade with the
leading edge upwards
Horizontal blade
25 cm
