Ducati ST4S - Instrument Panel

12
E
Important
If this light stays on, stop the engine or it may
suffer severe damage.
7) High beam light (blue).
Comes on when high beams are on.

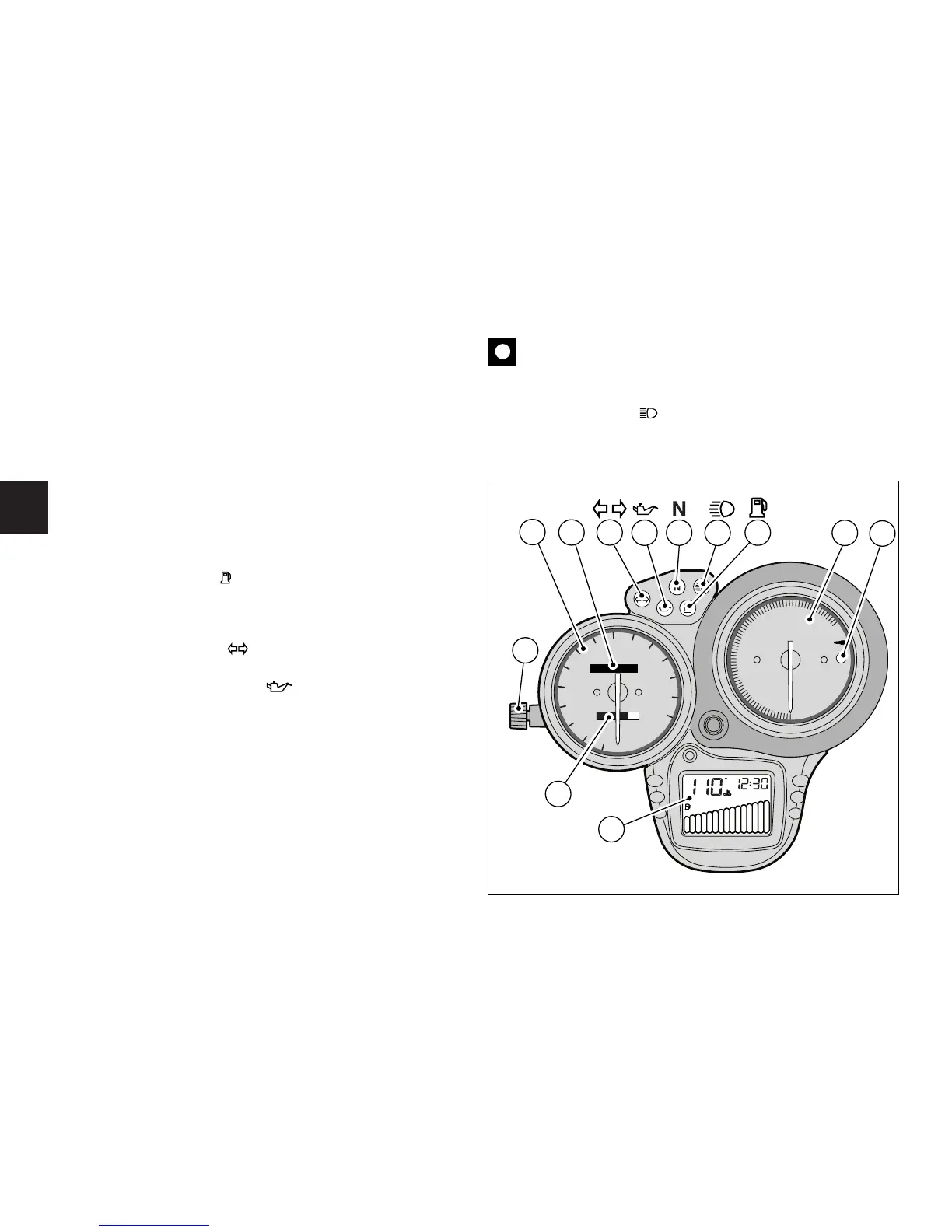

Instrument panel (fig. 5)
1) Speedometer (km/h or mph).
Gives road speed.
a) Odometer (km or miles).
Gives total distance covered.
b) Trip meter (km or miles).
Gives distance covered since last resetting.
c) Trip meter resetting knob.
Turn to reset trip meter to “0000”.
2) Engine revolution meter (rpm)
Indicates engine rpm.
3) Neutral light N (green).
Comes on when gearbox is in neutral.
4) Fuel warning light (yellow).
Comes on when there are about 6 liters fuel left in the
tank, corresponding to 1 bar of the digital display (8.1,
fig.6).
5) Turn indicator light (green).
Comes on and flashes when a turn indicator is on.
6) Engine oil pressure light (red).
Comes on when engine oil pressure is too low. It briefly
comes on when the ignition is switched to ON and
normally goes out a few seconds after engine starts.
It may shortly come on when the engine is hot, however,
it should go out as the engine revs up.
CODE
0
1 / 2
C
A
P
M
M
1
0
D
U
C
A
T
I
C
O
R
S
E
1
2
3
4
5
10
9
8
7
6
11
12
13
min
-1
x1000
00000
00
0 0
20
40
60
80
100
120
140
160
180
200
220
240
260
280
km/h
a
1
c
8
b
5
6
3
7
4
2
9
fig. 5
