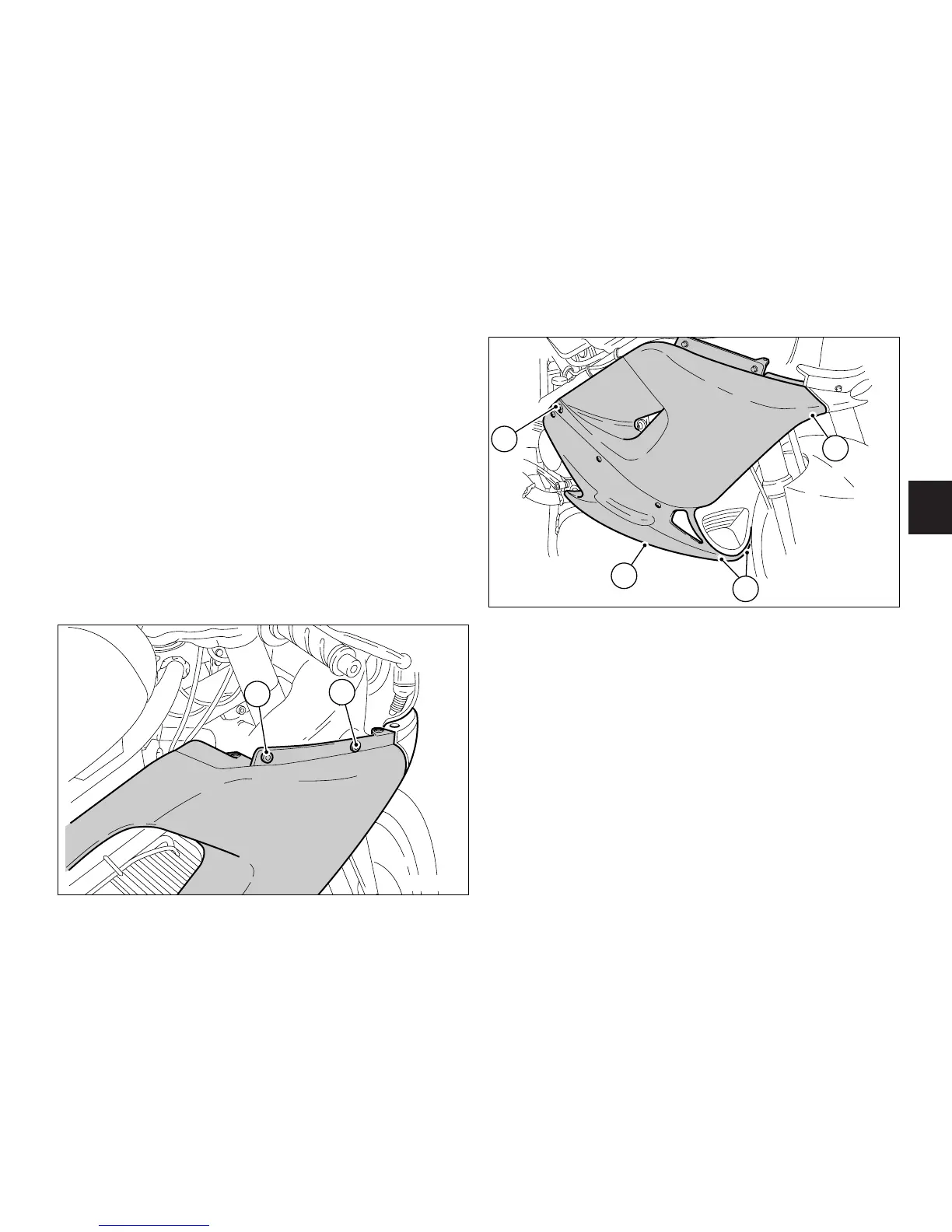

Removing the upper and lower body panels together
Remove the side guards of the instrument panel and the
headlamp fairing.
Unscrew the fastening screw (1, fig. 47) that holds each
body panel to the side subframe on the left side or to the
expansion reservoir on the right side and the rear screws
(2) that hold each of them to the frame bracket.
Unscrew the front fastening screw (3, fig. 48) that holds
each body panel to the front baffle.
Unscrew the rear fastening screw (4) holding each body
panel to the frame.
Unscrew the two lower fastening screws (5) holding the
body panels to the central air conveyor.
Unscrew one of the two screws (6) joining the body
panels together. Remove the body panels.
1
2
fig. 47
3
5
6
4
fig. 48
Side panniers
The motorcycle comes ready to fit the side panniers.
Side panniers kit in the same colour as the motorcycle is
available from Ducati Spare Parts Department.
Kit includes all parts needed to install the panniers as
well as the relevant instructions.
