Setting the gear change and rear brake pedals
(fig. 17 and 18)
The gear change and rear brake pedals can be adjusted
to suit the preferred riding position of each rider.
To set the gear change pedal,
lock linkage (1) and loosen the check nuts (2) and (3).
Note
Nut (2) has a left-hand thread.
Fit an open-end wrench to hexagonal element of linkage
(1) and rotate until setting pedal in the desired position.
Tighten both check nuts onto linkage.

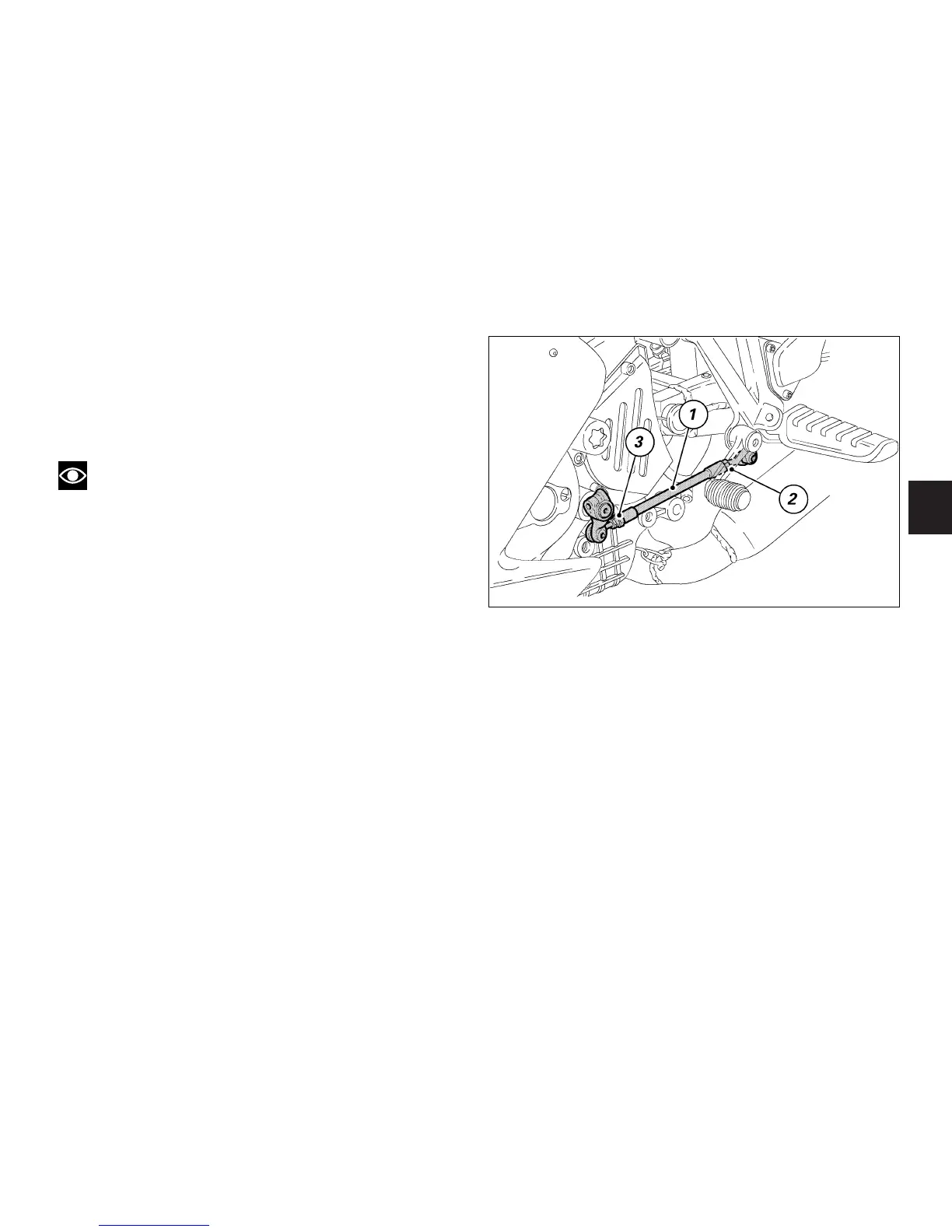

fig. 17
