Dukane 4A3076B - Smart Pillow Speaker-Model 7 A;B;C2131

The Model 7A/B/C2131 Smart Pillow Speaker can be used with Dukane ProCare 2000
Special Purpose Patient Stations installed with a 37-pin connector wallplate receptacle
connected to an electronically controlled bed manufactured by Stryker or Hill-Rom.
The smart pillow speakers provide nurse call, TV, and lighting controls, plus control
of the on/off, channel up/down, closed caption functions, and audio level of
designated “Smart” RCA (7A2131), Zenith (7B2131), and Philips (7C2131)
televisions through a minimum of three conductors.
Smart pillow speaker models include an internationally recognized “ i ” button for
gaining control of the TV closed-caption function, and for turning the function on and
off. In addition, a single button, low voltage, light control is provided on all models to
optionally operate either one light fixture or two sequentially, as authorized by Dukane.
continued
ProCare 2000 Operation Manual 51
5
6
8
2
4
7
1
3

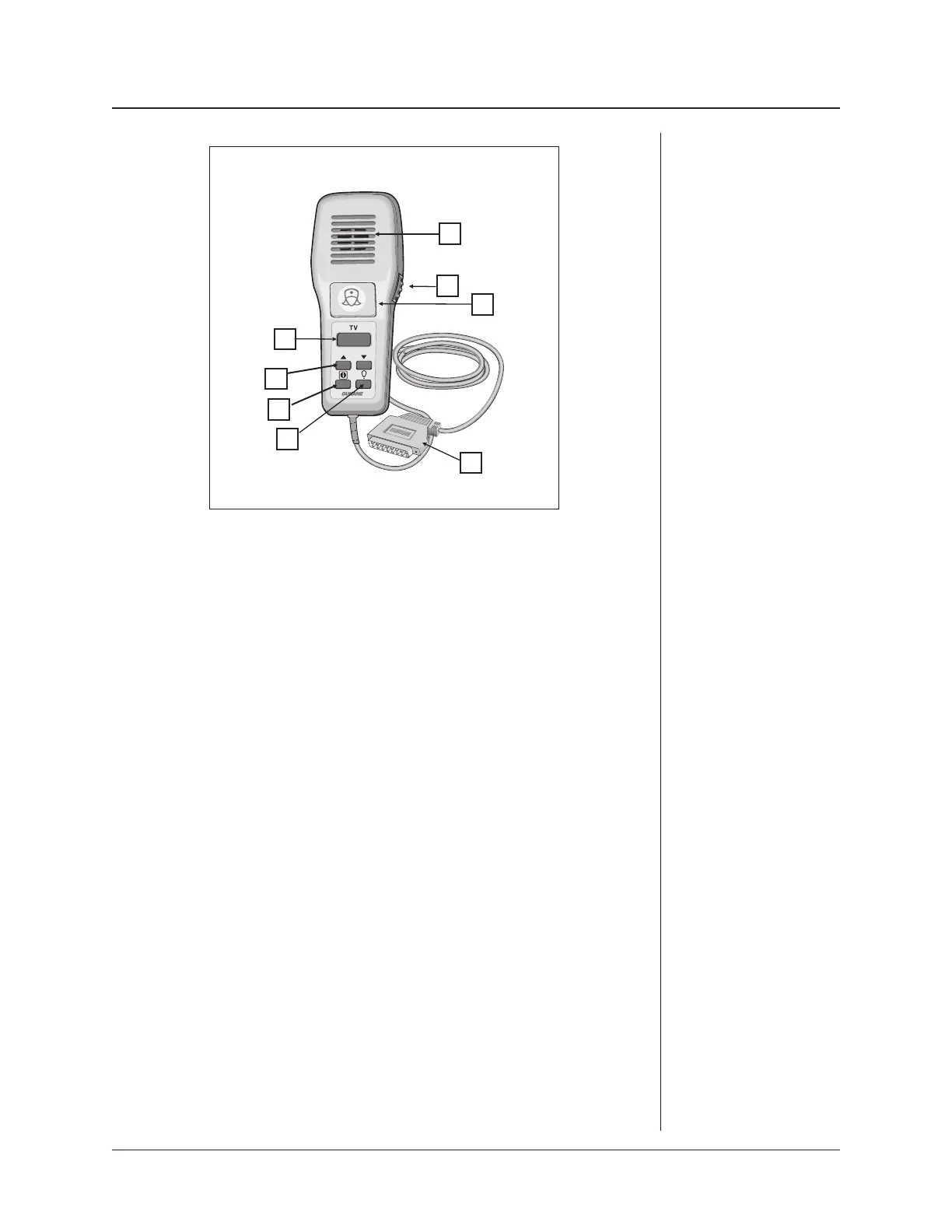

Smart Pillow
Speaker
Model
7A/B/C/2131
