Dukane 4A3076B - Smart Pillow Speaker-Model 7 A;B;C2106

The Model 7A/B/C2106 Smart Pillow Speaker is used with a Dukane ProCare 2000
patient station (Models 4A3081A, 4A3086A, 4A3181A, 4A3182, 4A3186A, and
4A3187) equipped only with a white13-pin entertainment connector.
The smart pillow speakers provide nurse call, TV, and lighting controls, plus control
of the on/off, channel up/down, closed caption functions, and audio level of
designated “Smart” RCA (7A2106), Zenith (7B2106), and Philips (7C2106)
televisions through a minimum of three conductors.
Smart pillow speaker models include an internationally recognized “ i ” button for
gaining control of the TV closed-caption function, and for turning the function on and
off. In addition, a single button, low voltage, light control is provided on all models to
optionally operate either one light fixture or two sequentially, as authorized by Dukane.
continued
ProCare 2000 Operation Manual 53

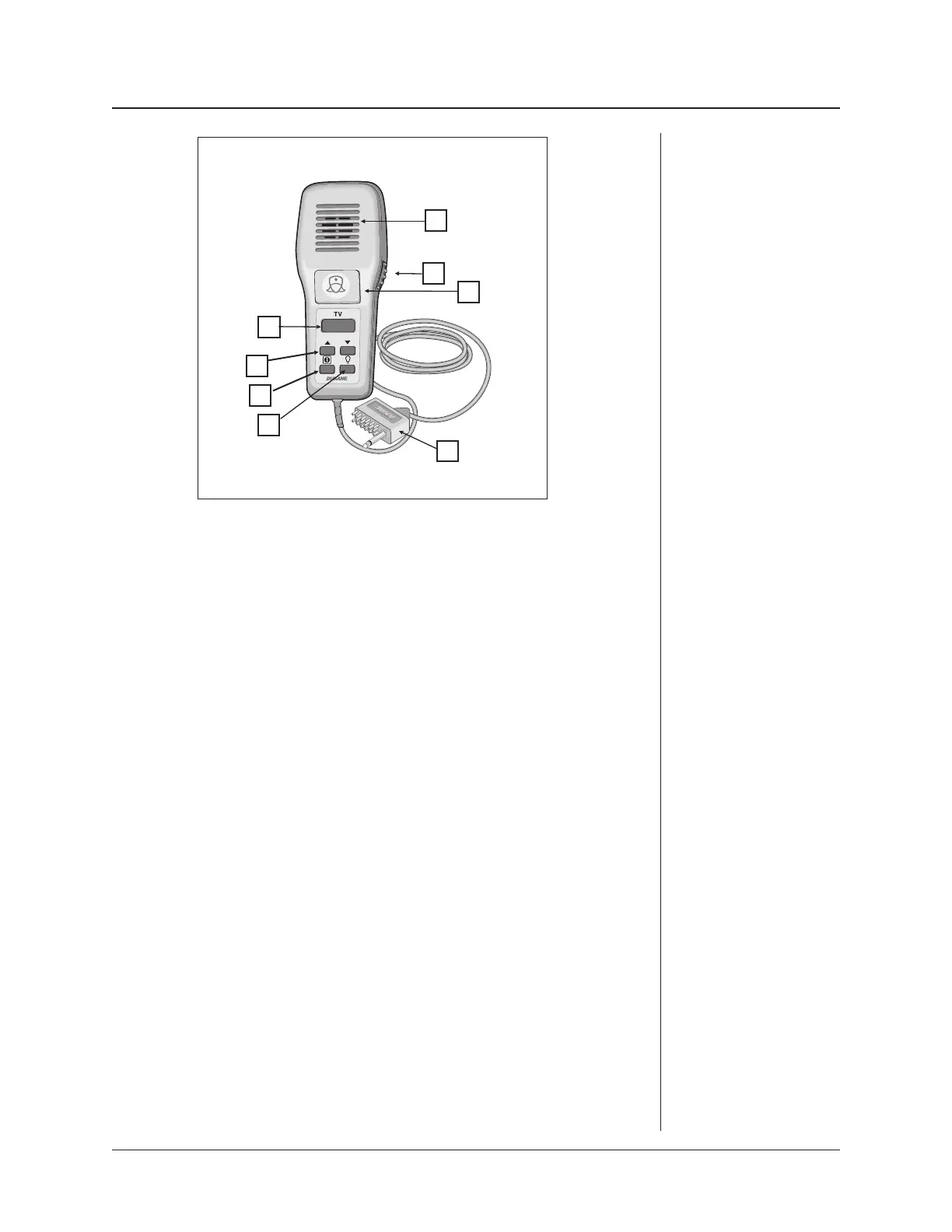

Smart Pillow
Speaker
Model
7A/B/C2106
2
1
3
4
5
6
8
7
