Continued from Previous Page

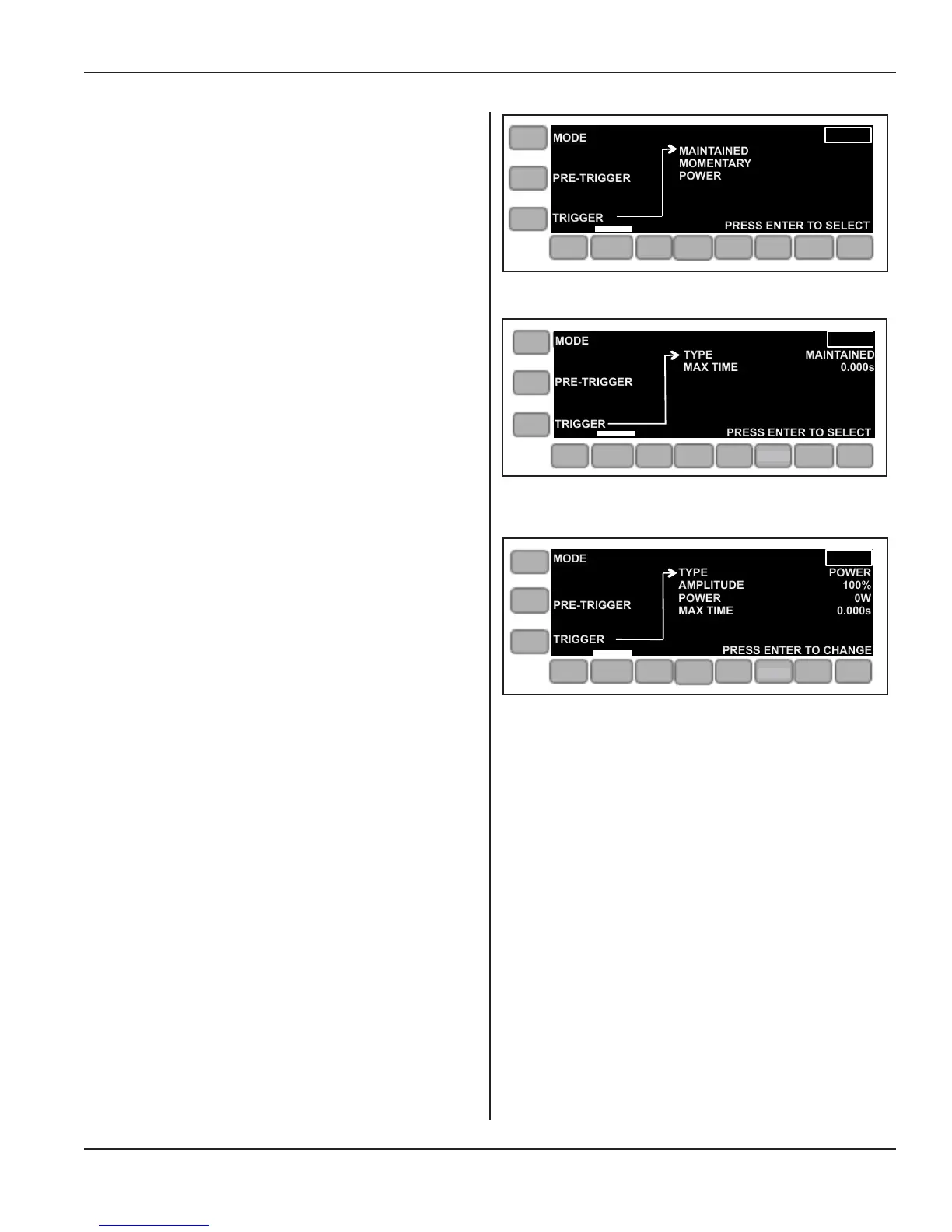

Figure 5-14 Pre Weld Menu, Maintained Trigger
Selected
The PRE-WELD menu with the TRIGGER menu se-
lected shows three types of trigger from which to select:
MAINTAINED, MOMENTARY, and POWER.
The TRIGGER menu with MAINTAINED trigger method
selected is shown in Figure 5-14. Select MAX TIME and
enter a value (seconds) to set the maximum time from start
of cycle to trigger activation. If this time is exceeded a Fault
occurs and the cycle is terminated.
If MOMENTARY is selected as trigger type, a value for
MAX TIME is entered as well.
The menu display seen in Figure 5-15 at the right shows
that the TRIGGER type selected is POWER.
With POWER as trigger type, AMPLITUDE, POWER
(Watts), and MAX TIME need to be entered.
Figure 5-15 Pre Weld Menu, Trigger Selected is Power
MODE
TRIGGER
ONLINE
PRESS ENTER TO SELECT
TYPE
MAX TIME
MAINTAINED
0.000s
PRE-TRIGGER
AMP
PRE
WELD
WELD
POST
WELD
LIVE
SETUPS
LIMITS
OPERATE
MODE
TRIGGER
ONLINE
PRESS ENTER TO SELECT
MAINTAINED
MOMENTARY
POWER
PRE-TRIGGER
AMP
PRE
WELD
WELD
POST
WELD
LIVE
SETUPS
LIMITS
OPERATE
Figure 5-13 Pre Weld Menu, Trigger Menu
MODE
TRIGGER
AMP
PRE
WELD
WELD
POST
WELD
OPERATE
LIVE
SETUPS
LIMITS
ONLINE
PRESS ENTER TO CHANGE
PRE-TRIGGER
TYPE
AMPLITUDE
POWER
MAX TIME
POWER
100%
0W
0.000s
SETUP
SETUP
Page 55
Dukane Manual Part No. 403-594-02
Section 5 - Operation
