Maintenance Manual for DUKE TSC Proofer
Oven with Touch Screen Controls
12
D. Remove old lter by rotating cartridge to
the left (facing back of cabinet) slowly until
pressure starts to release, stop and let
pressure and excess water drain through
pressure release hose. Once water has
stopped draining, continue turning to the
left and pull downward.
H. Replace strainer screen and Hex Cap.
I. Flush 2 gallons of water through the new
lter before using proofer to purge air
from lter. Remove hose from bottom of
proofer by loosening the compression nut
at the disconnect tting and pull tube out.
Place tube over container and turn on
water. It will take a minute for the lter to ll
before water ows out of the tube into the
container.
J. Once lter is ushed with 2 gallons of
water, turn off water supply again, insert
tube into water line disconnect, tighten
compression nut and turn water supply on
again. Check for leaks at connection ttings
and Inlet Strainer Housing Hex Cap.
K. Reconnect Wall Brackets if installed. See
Installation of Wall Brackets section of
Owners manual.

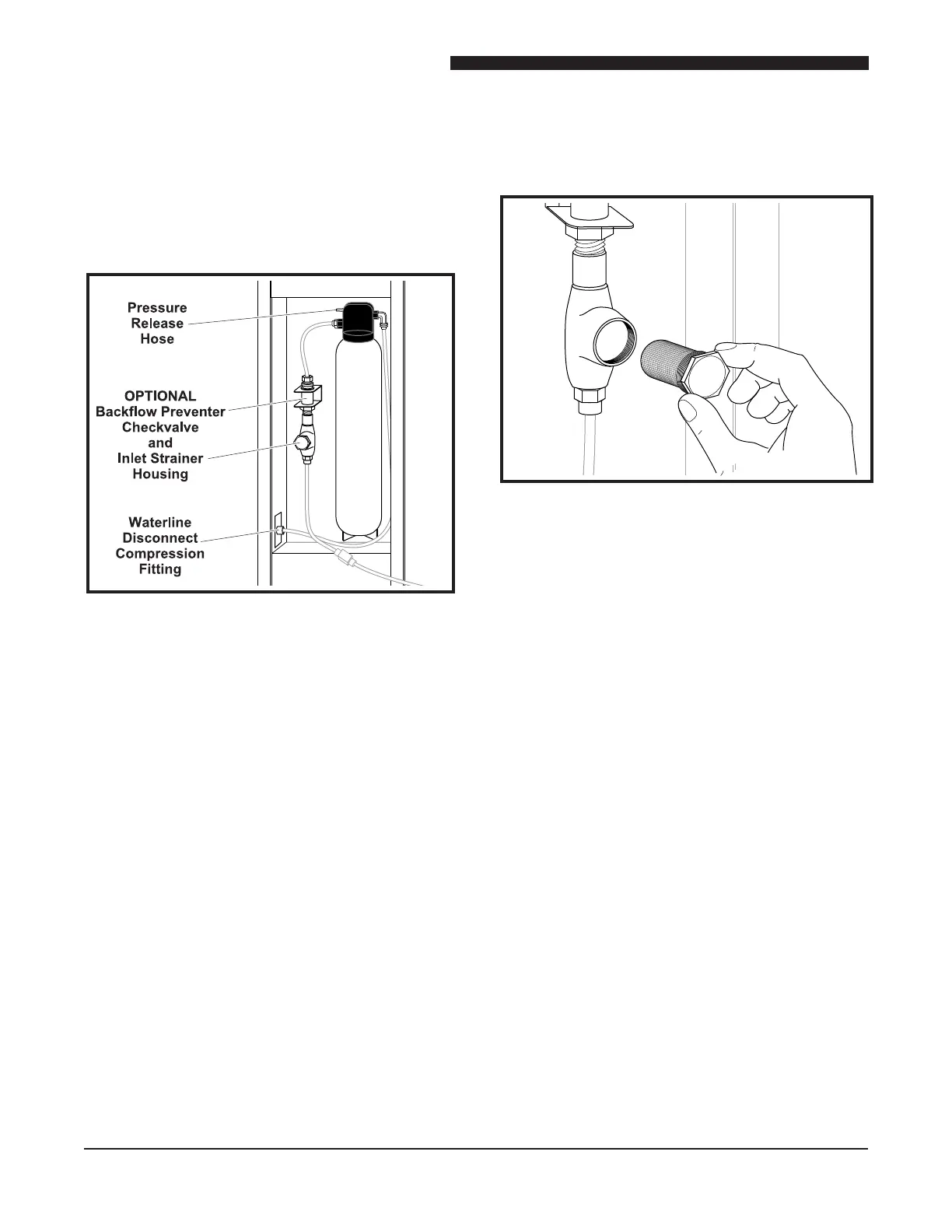

Figure: Inlet Strainer and Screen
Figure: Water Filter System
E. Install new lter by removing sanitary cap
from top of cartridge, ensure two black
O rings are in place, then lift up into lter
head and rotate cartridge 1/4 turn counter
clockwise until it comes to a complete stop.
F. Remove Inlet Strainer by loosing Hex cap
on Inlet strainer Housing.
G. Remove and ush strainer screen with
warm water.
To Next Page
