Duncan EcoSeeder - EcoSeeder Seed Drill Single Gearbox Assembly

53

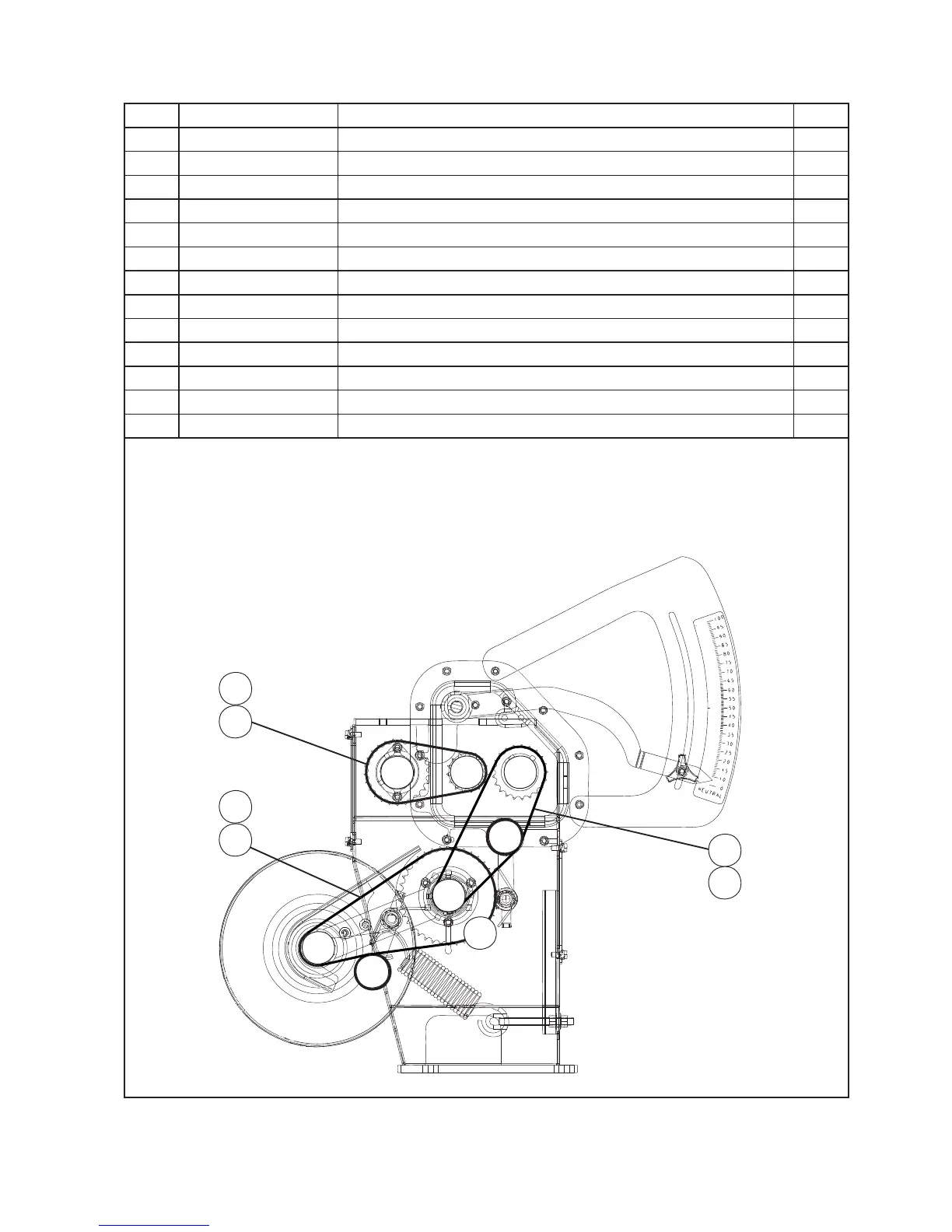

‘EcoSeeder’ Seed Drill Drive Chains Single Box
ITEM PART No. DESCRIPTION QTY
1 25724 13 T 1/2” P Sprocket x 20mm Bore 1
2 25742 38 T 1/2” P Sprocket x 25mm Bore 1
3 27885 13 T 1/2” P Sprocket x 25mm Bore 1
4 22044 15 T 1/2” P Sprocket x 20mm Bore 1
5 26198 21 T 1/2” P Sprocket x 25mm Bore 1
6 22537 25 T 1/2” P Sprocket x 20mm Bore 1
7 25781 1/2” P BS Chain x 37 Links (Gearbox to Boxshaft) 1
8 27652 1/2”P BS Chain x 53 Links (Transfer Shaft to Gearbox input) 1
9 24103 1/2”P BS Chain x 61 Links (Jockey Wheel Drive) 1
10 Refer page 57 Chain Tensioner Jockey Wheel Drive 1
11 Refer page 57 Chain Tensioner Transfer Drive 1
12 22294 Sprocket Key (6 x 6 x 25) (Not Shown) 6
13 43388 1/2” Pitch Joining Link 3
1
2
3
54
6
7
8
9
10
11
Pt. No. 67392
Issue 0918
