‘EcoSeeder’ Seed Drill Agitator Drives
ITEM PART No. DESCRIPTION QTY
1 60110PH Agitator Drive Rear Housing complete with internals 1
2 60110 Rear Housing only 1
3 60118PH Agitator Drive Front Housing complete with internals 0 1
4 60118 Front Housing only 0 1
5 22418 21T x 3/8” P Sprocket x 20mm Bore 1 2
6 22422 15T x 3/8” P Sprocket x 20mm Bore 1 2
7 22417 3/8” Pitch BS Chain x 33 Links (Not Shown) 1 2
8 43396 3/8” Pitch Joiner Link (not shown) 1 2
9 44968 M8 x 60 Class 8.8 Bolt Z/P 1 2
10 44965 M8 x 45 Class 8.8 Bolt Z/P 1 2
11 45137 M8 Nyloc Nut Z/P 2 4
12 22425 Agitator Shaft Extension 1 2
13 22426 Seed Shaft Extension 1 2
14 43428 Nylon Bush 3 6
15 22416 Agitator Drive Spacer 1 2
16 22419 Box Shaft Connecting Sleeve 1 2
17 22420 Agitator Shaft Joining Collar 1 2
18 45180SS M8 x 10 Socket Head Grub Screw S/Steel 2 4
19 44956SS M6 x 40 Bolt S/Steel 2 4
20 45136SS M6 Nyloc Nut S/Steel 2 4
21 45150SS M6 Light Flat Washer S/Steel 2 4

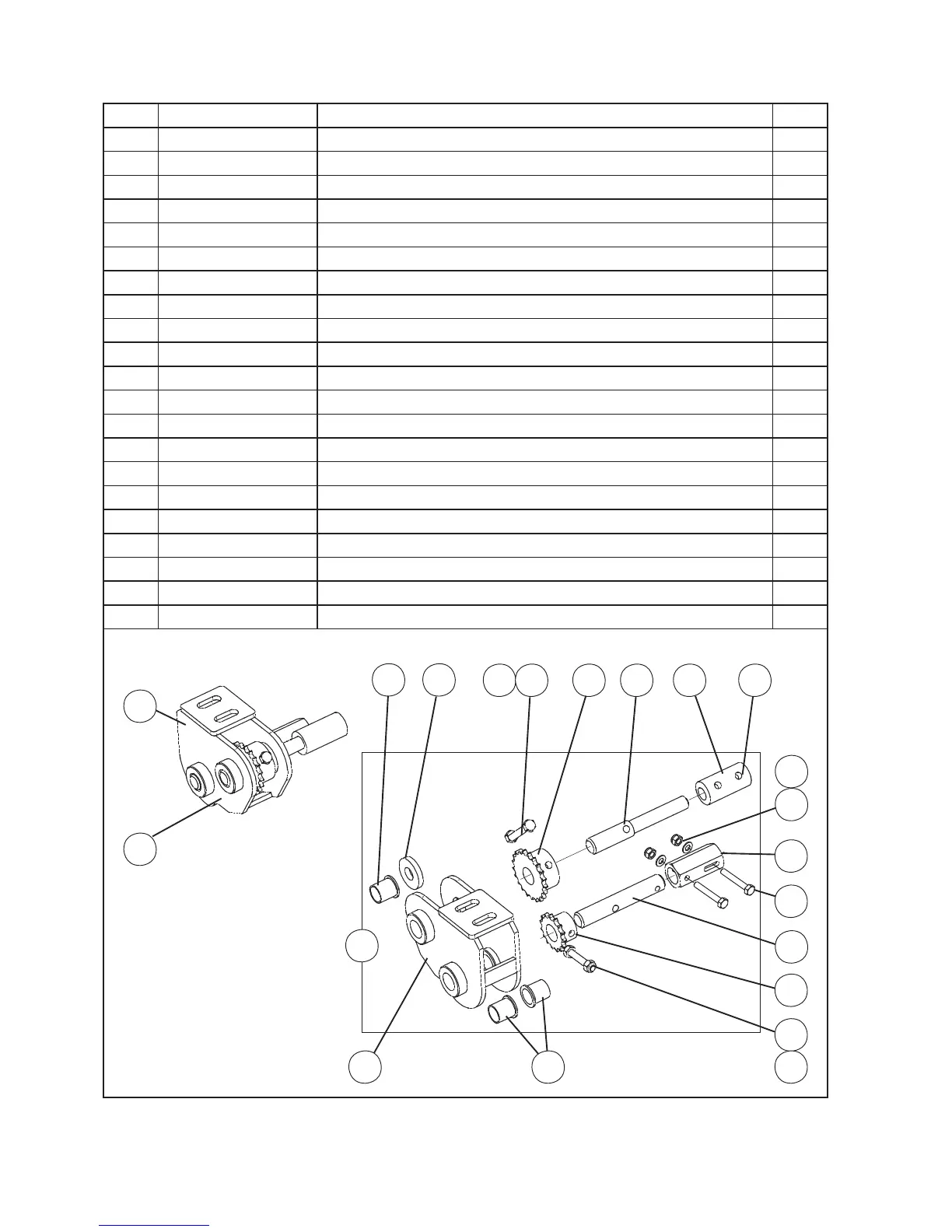

Rear assembly shown exploded
2
4
3
59
10
11
11
12
14
15
17 18
14
1
Note: Quantities are per machine single/double box
20
6
13
19
16
21
