Display of the error memory
▶ The display of the error memory is used to call the last 10 errors.
▶ The error that has occurred last is displayed.
▶
The error memory display is activated out of the operation display (not during parameterisation dis-
play).
▶ The error code is displayed on the two-digit seven-segment display.
▶
This error memory display is quit after 60 s due to a timeout if you do not press any key within this time period.
▶ If there is not any error for the error position, -- is displayed.

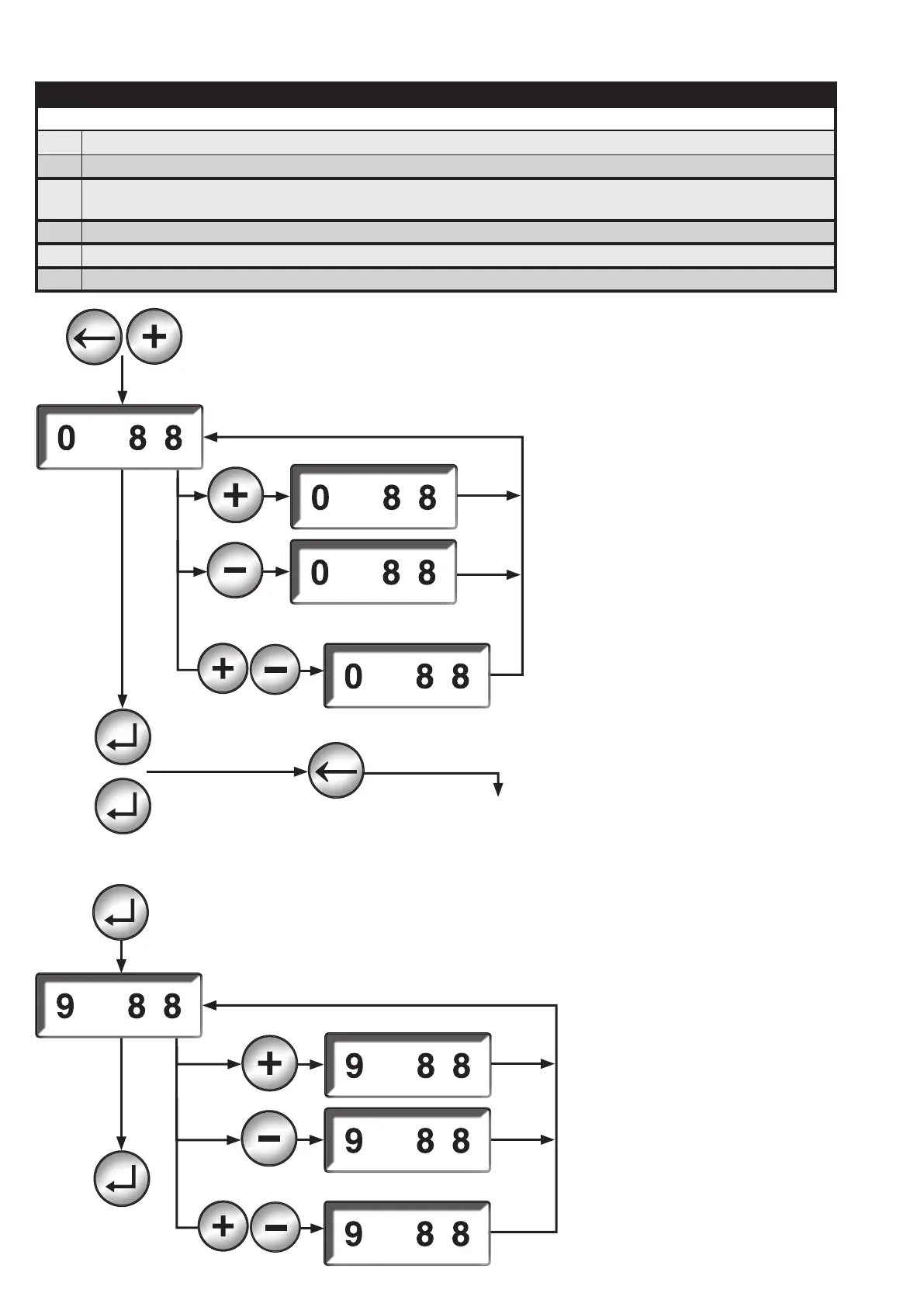

Display of the error memory
As long as the plus button is kept pressed,
the state number is displayed
Switches to the
operation display
Last error occurred
If the key is pressed, the previous error is displayed
From each
error display state
As long as the plus button is kept pressed,
the state number is displayed
Back to
operation display
Last error of the last ten errors
.
.
.
As long as the plus and minus keys are
kept pressed together,
the additional error message
(additional byte 4) is displayed
As long as the plus and minus keys are
kept pressed together,
the additional error message
(additional byte 4) is displayed
As long as the minus button is kept
pressed,
the additional error message
(additional byte 1) is displayed
As long as the minus button is kept
pressed,
the additional error message
(additional byte 1) is displayed
