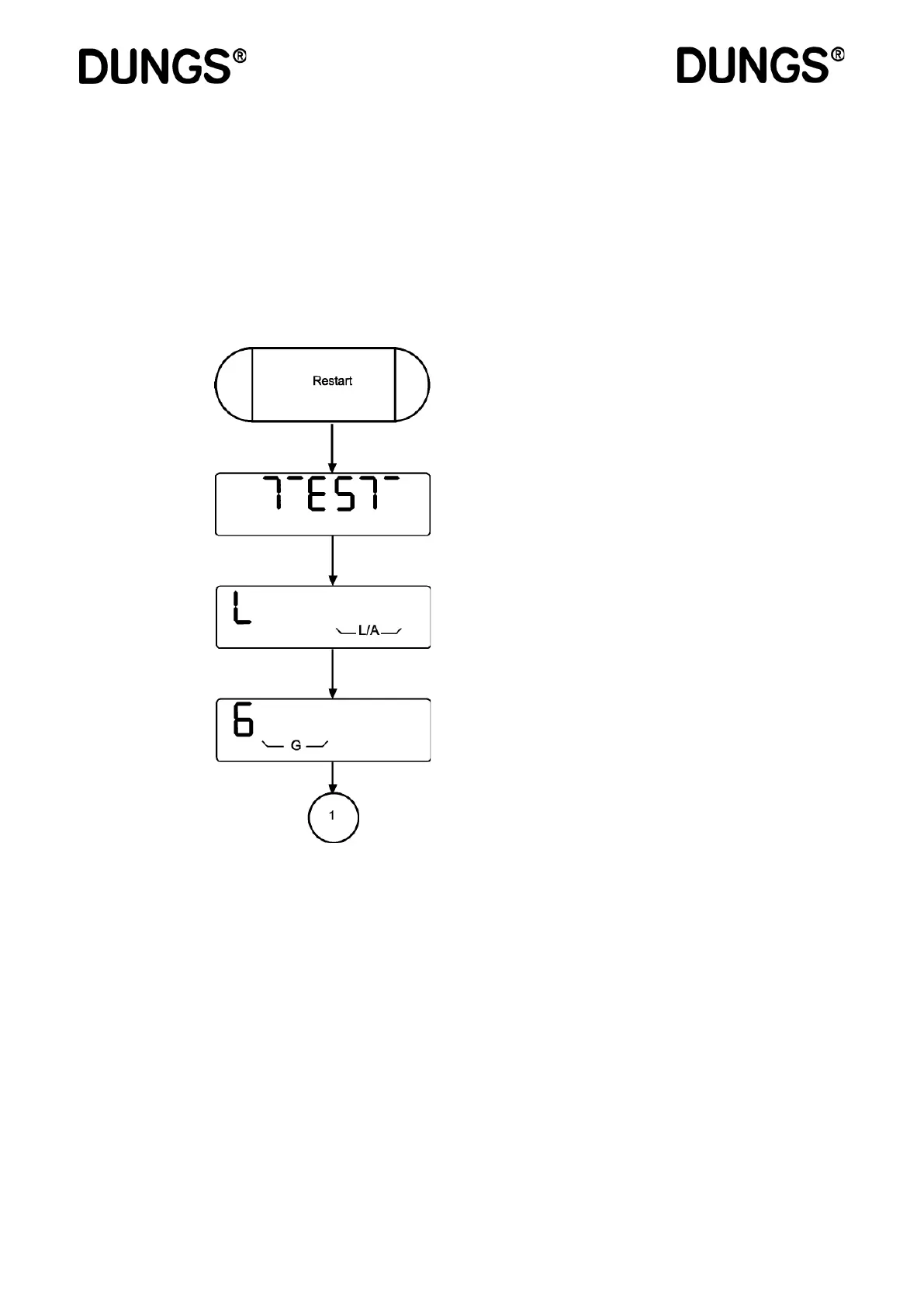

Display in operating mode, gas ring with electronic modulation and gas ring
with pneumatic modulation.
If setup mode is activated, the “P” symbol also appears in the start phase.
Display in operating mode
Gas ring, pneumatic modulation
Start after request for heat.
Inter
nal
tests
such
as
ROM
test
,
CPU
test
,
RAM test, etc.
Check
servo
drive
for
air
and
go
to
refe-
rence point.
Check servo drive for
gas and go to refe-
rence point.
58
60
Table of Contents
Italian
2
Table of Contents
2
Dati Tecnici
3
Esercizio Gas a Modulazione Pneumatica
4
Sistema DI Prova Valvole Esercizio Gas Integrato
7
Diagramma Tempi Esercizio Gasa Modulazione Pneumatica
8
Spiegazione Visualizzazioni
10
Messa in Funzione Punti DI Riferimento
13
Modo Regolazione Esercizio Gas a Modulazione Pneumatica
13
Visualizzazione Nel Modo Esercizio Esercizio Gas a Modulazione Pneumatica
20
Visualizzazione Modo Informazione Esercizio Gas a Modulazione Pneumatica
24
Visualizzazione Modo Service Esercizio Gas a Modulazione Pneumatica
31
Visualizzazione Modo Parametrizzazione - Esercizio Gas a Modulazione Pneumatica
32
Segnalazioni Errori
40
Tabella DI Regolazione
43
English
44
Specifications
44
Operating Modegas Firing, Pneumaticmodulation
45
Integrated Valve Proving System, Gas Firing
48
Time Diagramgas Firing, Pneumaticmodulation
49
Explanation Display
51
Display Functions
52
Display When a Password Is Entered in Parameterisation or Setup Mode
53
Setup Modegas Firing, Pneumatic Modulation
54
Display in Operating Mode
59
Display in Service Mode
67
Display in Parameterisation Mode
73
Error Messages
81
French
85
Données Techniques
85
Exercice Gaz À Modulation Pneumatique
86
Explication Affichages
92
Affichage Saisie Mot de Passe en Modalité Paramétrage Ou Réglage
94
Mise en Fonction des Points de Repère
95
Modalité Réglage Exercice Gaz À Modulation Pneumatique
95
Affichage en Modalité Exercice-Exercice Gaz À Modulation Pneumatique
102
Affichage Modalité Information-Exercice Gaz À Modulation Pneumatique
105
Affichage Modalité Service Exercice Gaz À Modulation Pneumatique
108
Affichage Modalité Paramétrage-Exercice Gaz À Modulation Pneumatique
114
Signalisations Erreurs
122
Tableau de Réglage
125
