Display in parameterisation mode
Gas ring, pneumatic modulation
The parameterisation-mode display can
be accessed only from the operating-
mode display in standby status.

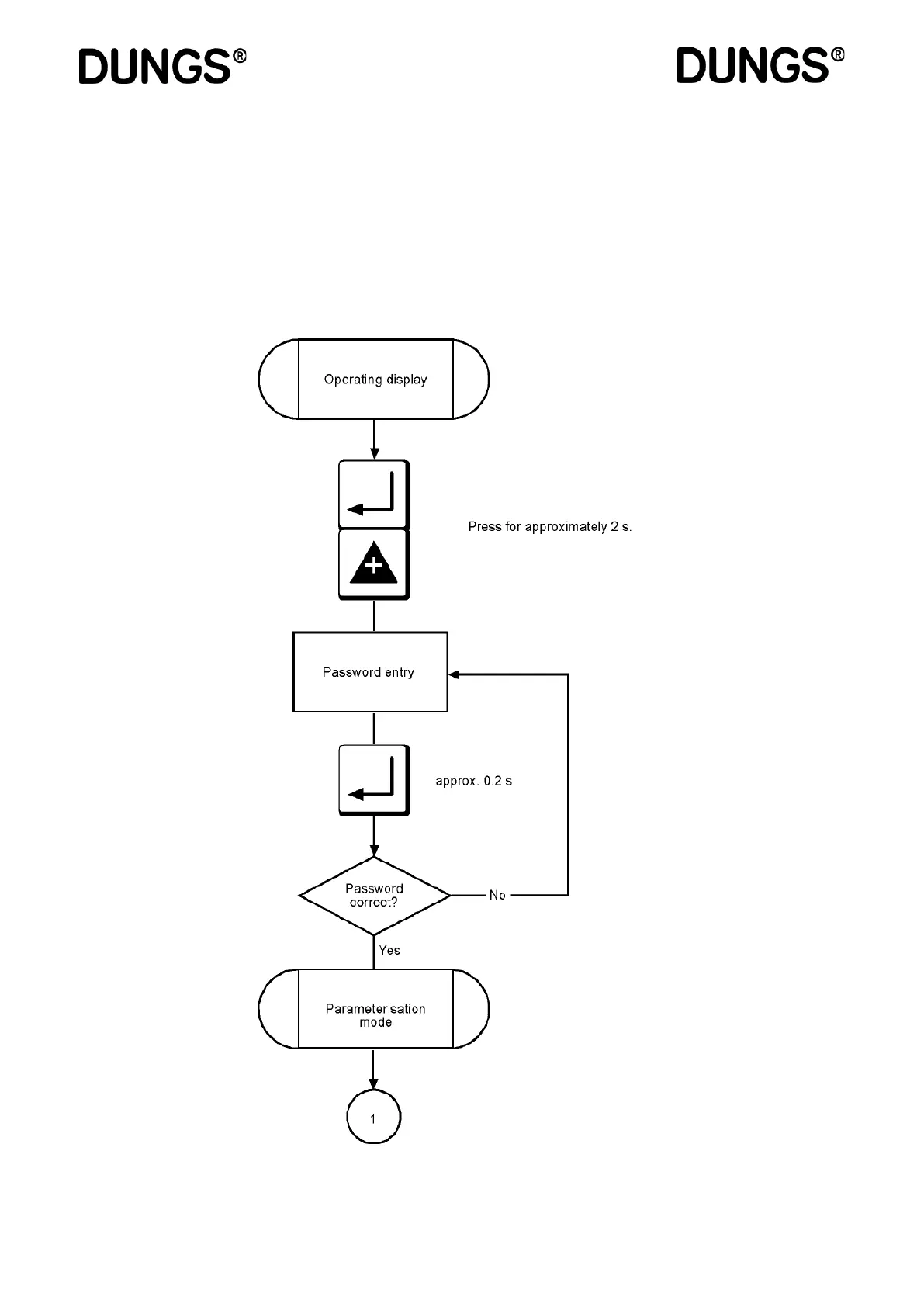

Parameterisation mode can be accessed only from the operating-mode display
when the controller is on standby (“OFF”). Parameterisation mode is used to view
important operating parameters and adjust the settings by means of the buttons
on the touch-sensitive display.
This display mode is exited after a 20 second timeout or if the readout is scrolled
past the last display image.
