16
4 - LOCATING BOILER
CAUTION
Boiler weight exceeds 140 pounds (63.5 kg). Do not
lift boiler onto wall without assistance.
!!
4.3 Wall Mounting
1.
Decide position of boiler on the wall allowing for all
2.
Tape template to the wall. Ensure template is level and
upright. Mark position of holes for boiler mounting bracket
and plumbing connections.
3.
4.
the wall to side wall, then along side wall (ensure lines are
parallel and sloped properly towards the boiler, refer to
5.
• 100, 115, 125 & 150 - 4 " [110 mm] diameter
• 165 & 205 - 5 " [135 mm] diameter
6.
Pre-pipe supply and return water connections with factory
7.
Mount boiler on wall using wall mounting bracket included
with unit.
8.
Adjust the position of the boiler verify it is level and plumb.
Note
Lift boiler using chassis. Do not use front jacket,
may cause damage to the boiler.
piping can be damaged if subjected to excessive
torque.
Note

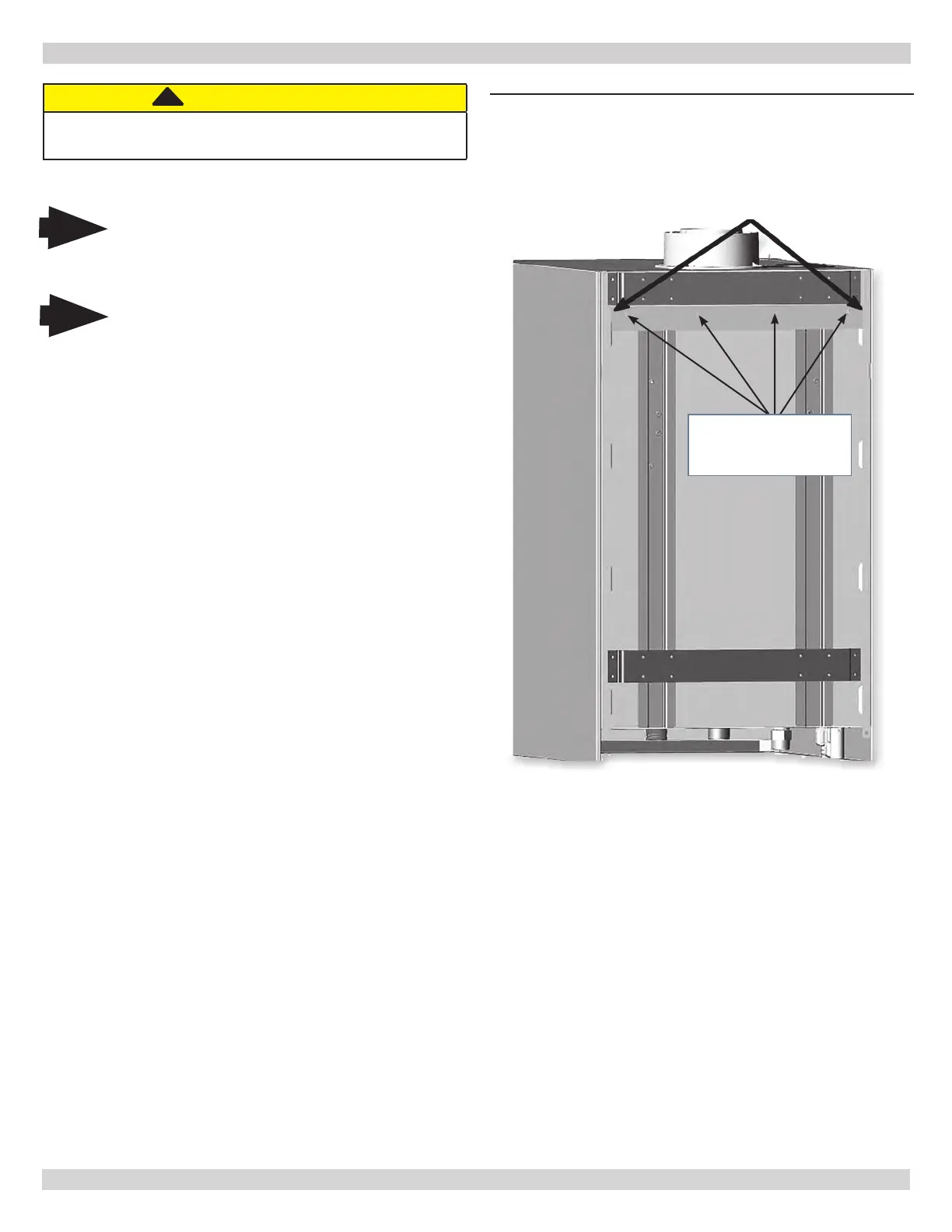

FIGURE 4-2 Wall Mount Bracket (Included)
Center brackets. Avoid
overhang on sides of
wall mount bracket.
Use four (4) predrilled
holes for mounting
bracket to wall
240013360
REV A [07/01/2021]
