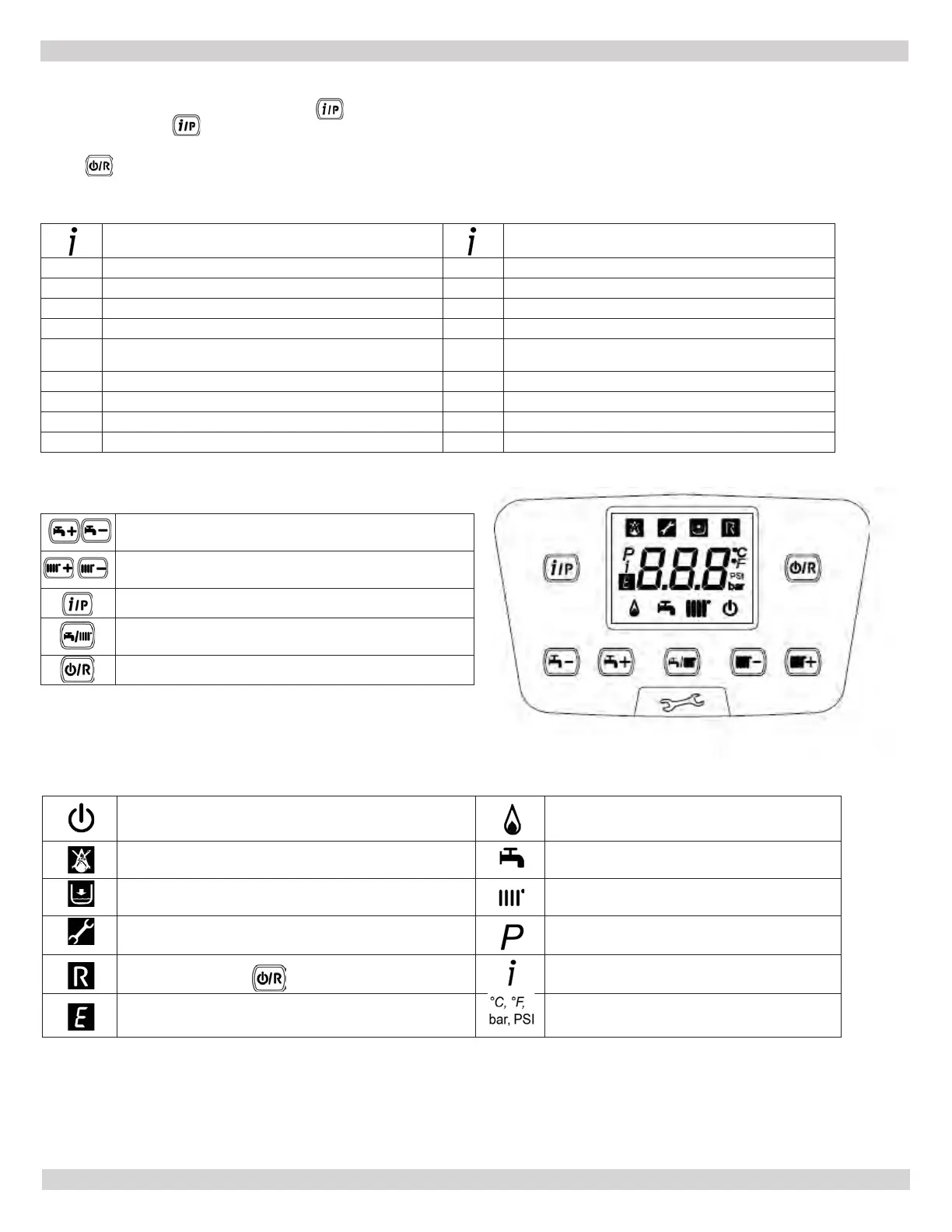

9.5 Control Panel
To enter the INFO Menu press and hold for 1 second.
Press and hold the button for 1-2 seconds to increment
through the selections as shown in the table below.
Press
to exit.
DESCRIPTION DESCRIPTION
00 Secondary fault internal code 09 Setpoint Central Heating (°F/°C)
01 10/11 Manufacturing information
02 Outdoor temperature (°F/°C) 12 Flue sensor temperature (°F/°C)
03 Indirect Tank DHW temperature (boiler CH only) 13 Manufacturing information
04 Domestic hot water temperature (boiler with plate exchanger) 14
05 Water pressure in heating system (PSI/bar) 15 Manufacturing information
06 Heating return temperature (°F/°C) 16 Manufacturing information
07 Thermo fuse status (000/001) 17 Fan speed (“17”x100)
08 Not used 18 Manufacturing information
DHW temperature adjustment
(+ to increase the temperature and – to decrease it)
Heating water temperature adjustment
(+ to increase the temperature and – to decrease it)
Boiler operating information
Operating mode:
DHW – DHW & Heating – Heating Only
BUTTONS Key
Burner lit
Ignition fault DHW operating mode enabled
Boiler/system water pressure low Heating mode enabled
Programming menu
Manually re-settable fault ( )
Boiler information menu
Fault in progress Set unit of measurement (SI/US)
SYMBOL Key
