8

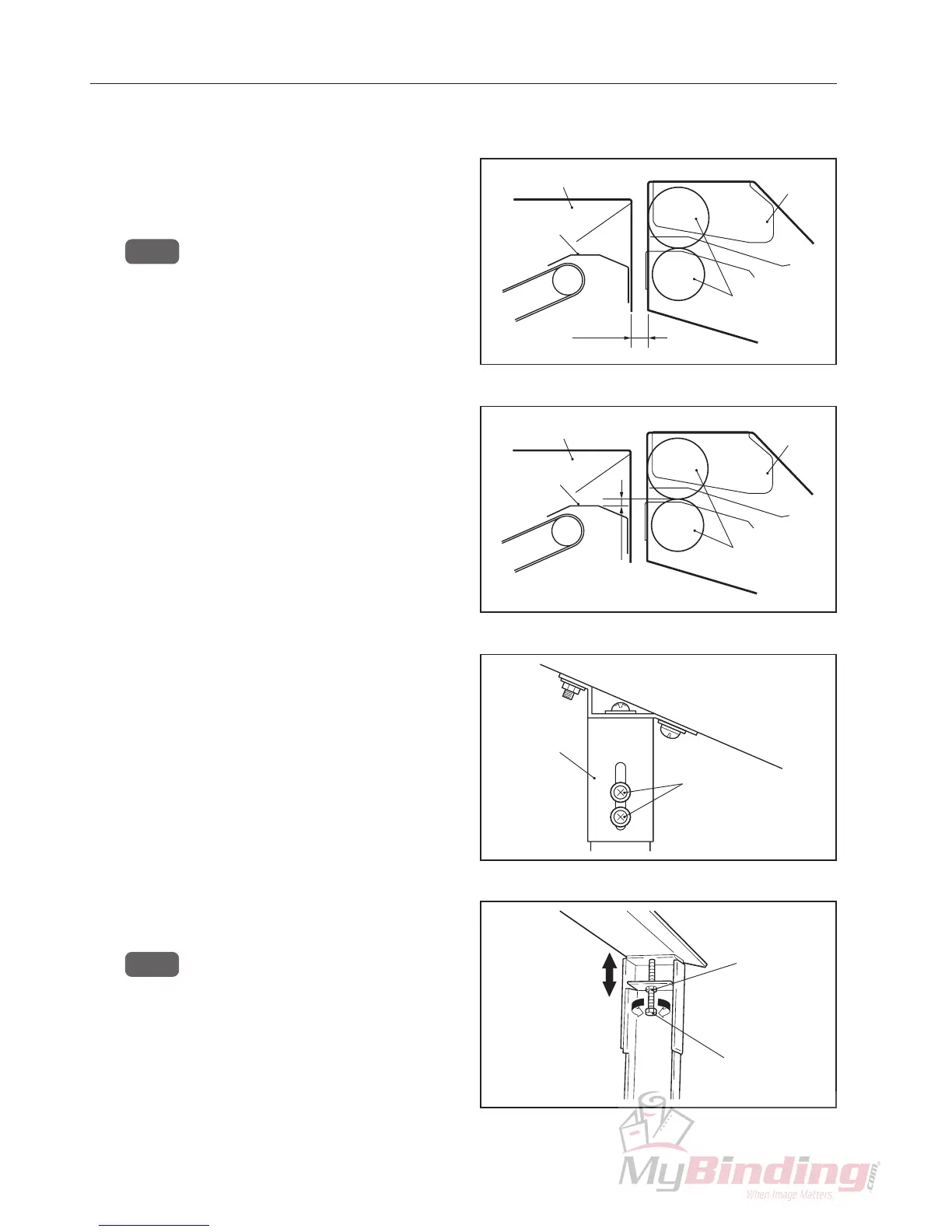

2. INSTALLING PROCEDURE
Check that the distance between the
paper in-feed slot of the DBM-120 and the
LU-HM exit is 8 to 12 mm (0.31" to 0.47").
NOTE : As the above range will not be satisfied if
the ground is not flat, check that the
ground is flat.
4
DBM-120
Guide
8 to 12 mm
(0.31" to 0.47")
LU-HM
Paper ejection rollers
DBM-120
Guide
3 to 7 mm
(0.12" to 0.28")
LU-HM
Paper ejection rollers
Adjust the height of the LU-HM exit so that
the paper in-feed slot of the DBM-120 is 3
to 7 mm (0.12" to 0.28") lower than the
LU-HM exit.
5
q Loosen the top two screws of the pillars of both the
operating and non-operating sides.
Pillar
Screws
Fixing nut
Bolt
Up
Down
w Loosen the nut fixing the bolt inside the pillar, and
turn the bolt to adjust the height of the LU-HM exit.
NOTE : Adjust so that the operating and non-
operating sides of the LU-HM exit
become the same height.
e After adjusting, tighten the nut, secure the bolt, and
tighten the top screws of the pillar.
